Grain Silos Wall Auto Production Line 6mm

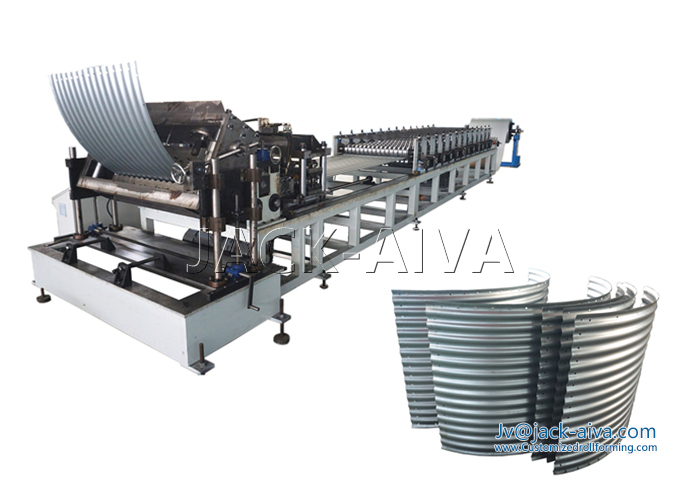

 Roll Forming Line for production 6mm Storage Tank corrugated wall
The Steel Corrugated Wall Sheet produced by the roll forming line is also named Storage Tank corrugated wall, this profile is used for making silo wall. 6mm thickness material can be processed by this machine.
Grain Silos Corrugated Sheet auto production line is consisted un-coiler, entrance, main roll former for processing corrugated steel sheets, servo control feeder and hydraulic punching holes device, three roller bending machine. The forming machines are specifically designed to roll forming corrugated sheets of galvanized steel up to.6mm thick. it is for storage tank walls. The profile can be custom made according to request. The advantage of the cutter after bending is to get more perfect shape at the corrugate sheets both ends.

 Technology specifications Grain Silos Corrugated Steel Sheet Auto Production Line, 6mm
Grain Silos Corrugated Sheet Roll Forming Machine consists of Uncoil device, Roll forming machine, Hydraulic automatic cut-off, Products run-out table, PLC automatic control system, etc.
Also this roll forming line can roll form pre-cut flat sheets. Considered the better corrugated sheets, the coil as raw material is recommended. Grain Silos Corrugated Sheet Roll Forming Machine technology Flow is as following,
Manual De-coiler (5Ton) --- feeder + leveler + Roll forming Machine ---- Servo Tracing punching (Side holes + Cross holes) --- hydraulic cutter (Stop-cut) ------ corrugated sheet bending -- finished products

 Production line Main Parameters- Grain Silos Corrugated Steel Sheet
Item Content
Raw material - Thickness 1.0-1.6mm;
- Coil width is according to client profile
- Yield Strength ≤300MPa
De-coiler - Capacity: 5Tons
- Inner extending cantilever style, manual control,
- Coil ID: 470mm-510mm; Coil OD:1300mm
Main roll former - Roll station:18 stations
- Material of main shaft ¢155mm, 45#, treating
- Forming rollers GCR15, quenching, hardness HRC58-62º, chrome plated
- Driving model: By chain (gearing box driving system is optional)
Main motor power: 90kw
Working speed: 0-15m/min, not including punching and cutting
Servo Tracing punching Side holes + Cross holes; 5.5KW (+ accumulator ) / 25Mpa
Bending device - Corrugated steel sheet 3 roller Bending; UP shaft 1 pc; Down shaft 2pcs
- Power 5.5kw
- Roller material GCR15
- Driving model: By Double line chain
Cutter - Stationary Hydraulic Cutter
- Cr12MoV, quenching and hardness 58°-62°
Controlling system: PLC & Touch screen
Total weight: About11,000kg
Size 11500×1500×1200mm

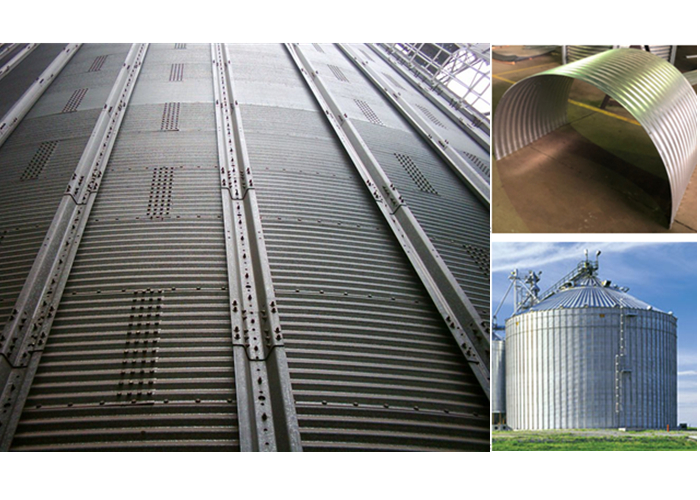

 Application sample: Grain silos tank
  • Last:Steel Corrugated Wall Sheet Making Machine 3mm
  • Next:Storage Tank stiffener Roll Forming Machine
