Concealed Drawer Slide Roll Forming Machine2 folding

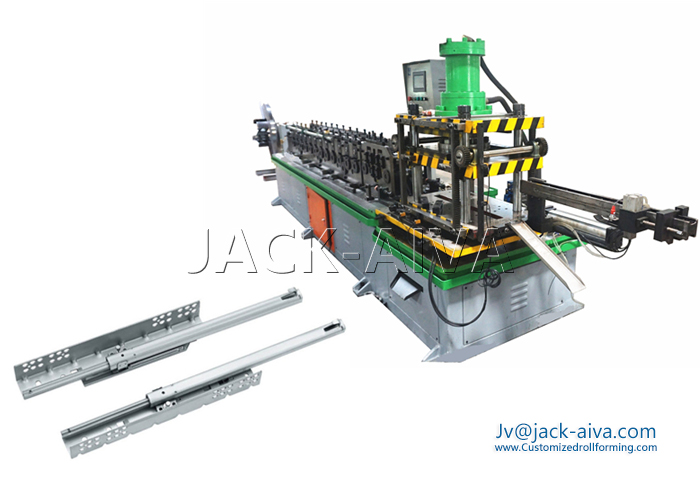

Roll forming machine for the manufacture V2 Soft Closing Concealed Drawer Slide-2 folding slides
The V2 Full Extension Soft Closing Concealed Drawer Slide are consisted of one outer runners and one inner guide. They can be fabricated from almost any material and in almost any length. the V6 Concealed Drawer Slide are currently used in Application: office furniture, civil furniture, cabinets, etc.

Brief Introduction-  Full Extension Soft Closing Concealed Drawer Slide Roll Forming Machine
Our manufacturer is the earliest on in china to design and supply this cabinet drawer slides roll forming machine. even more earlier than Taiwan manufacturer in this industry. With around 30 years manufacturing experience, advanced design concepts and processes. Using CNC numerical control equipment, processing, and improve the accuracy of wheel size. The design is reasonable, accurate, and the processing of high precision, good stability, the equipment, The products produced stable and high accuracy.
We are not only far ahead in technology research and development strength, talent, design, processing equipment, process, product accuracy and stability of advanced equipment in such areas as far away ahead in the industry! CNC numerical control equipment used for precision machining of the roll forming rollers, using the second element image measuring instrument for forming rollers detection, ensure that the design, processing, installation of data unity, ensure that the equipment within the accuracy of 0.03mm.

Technology Specifications-  V2 Soft Closing Concealed Drawer Slide Roll Forming Machine

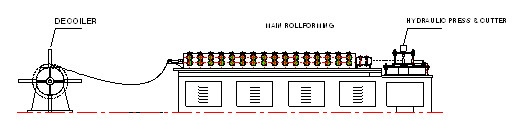

The whole High-precision steel ball slide rail equipment (Metal Drawer Slides Roll Forming Machine) is consist of De-coiler, main forming machine, straightening part, Punching & Cutting, electrical control system, etc.



Main Parameters-  V2 Soft Closing Concealed Drawer Slide Roll Forming Machine
- Raw material: Cold rolled Steel strip,
- Thickness: Inner track* middle track * Out track 1.5x1.5mm
- Roll formed profile: V2 Two folding Concealed Drawer Slide (Out track / inner track)
- Length range: 250- 450mm
-Forming Roller Stations: 12 Stations /12 stations
- Forming Roller shaft:: Diameter 52mm, 45# after polishing
- Forming rollers: Cr12MoV, after treatment, its hardness is HRC60-62.
- Production Efficiency: 200 000 PCS per Month
- Main motor: 7.5kw,
- Hydraulic Punching & Cutter Punching Online ; Tolerance: +/-0.15mm; Tracing style is optional


ITEM CONTENT
Raw material Cold rolled Steel strip
Thickness:
(Inner track* Out track)
1.5x1.5mm
Roll formed profile:
(Out track / middle track / inner track)
V2 Soft Closing Concealed Drawer Slide
Forming Roller Stations: 12 Stations / 12 stations
Forming Roller shaft: Diameter 52mm, 45# after polishing
Forming rollers Cr12MoV, after treatment, its hardness is HRC60-62.
Forming Speed: 12 meters / min
Main motor: 7.5kw
Material of Sheet: Soft Quality (Annealed) Galvanized Sheet
Cutting mode: Hydraulic tracing cutter, driving by servo motor
Length range: 250- 450mm
Production Efficiency: 200 000 PCS per Month
Control Cabinet 3xAC380v, 50HZ

V2 Full Extension Soft Closing Concealed Drawer Slide - 2 folding
V2 type of concealed drawer slides is the popular style in the present world market, it is widely adopt for bedroom furniture, sliding cabinet doors, office cabinets and bathroom cabinets etc.
The various length concealed drawer slides can be produced by our line. if Combined with punching and Robotic arm, this slides inner track and outer track can be finished by Our line at one time. The finished concealed drawer slides can by the full auto assembly machine.

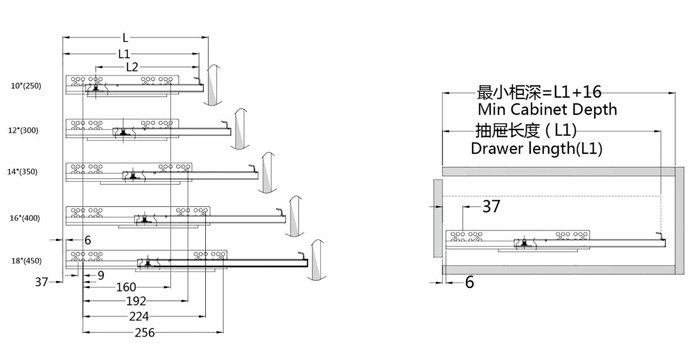

The following installation drawing is for client reference.

Welcome to contact with us for the further details!
TAG: V2 Full Extension Soft Closing Concealed Drawer Slide Roll Forming Machine
