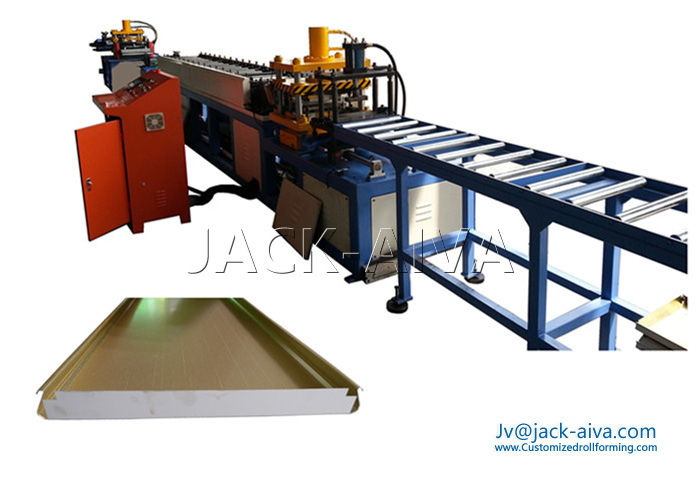

Decorative Suspended Strip Ceiling panel Machine

 Brief introduction - Decorative Metal Suspended Strip Ceiling panel For Building Decoration
With the Decorative Metal Suspended Strip Ceiling easiness of installation and the possibility of making changes any time after installation without infrastructure. The decorative clip in ceiling panel is widely adopted in offices and residential buildings, In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads.
The normal sizes of colored steel strip Ceiling, width from 50-300mm, and high is 14mm, and thickness is 0.5-0.8mm. Plain or perforated aluminum profile can be selected according to the client requirement. The normal ceiling profile shapes are as following, S shaped closed strip ceiling and C shaped aluminum strip ceiling,
With more than 25 years experience in this customized roll forming machinery industry,  we have full ability to supply client the strip Ceiling roll forming machine according to client request.

 Technology specification of ceiling panel roll forming machine

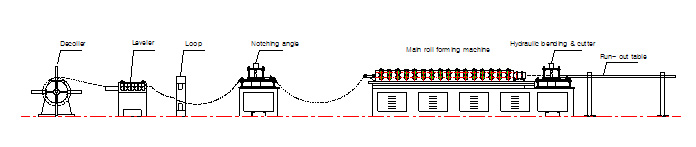

Decorative Metal Suspended Strip Ceiling roll forming machine is consisted of de-coiler, leveling device, hydraulic angle notching machine, main roll forming machine, hydraulic ends bending & cutter , run-out table, electrical control system, etc..




 Main parameters - Decorative Metal Suspended Strip Ceiling roll forming machine

Line structure

Portal-type frame style,  45# steel

Forming Roller Stations:

15 Stations

Forming Roller shaft:

Φ40mm

Forming rollers

Cr12MoV, Quenching, hardness HRC56-58º

Forming Speed:

12 meters / min

Main motor:

5.5kw

Material of Sheet:

Soft Quality (Annealed) Galvanized or colored Sheets

Raw material

Colored steel, aluminum

Sheet Thickness:

0.3mm-0.5mm

Control mode

3xAC380V. 50HZ. (Other system is optional)

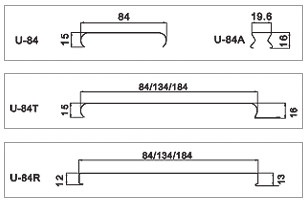

 Decorative metal sheet profile for ceiling panel
The following profile drawings are some decorative sheets of wall and ceiling panel for your reference, the normal material thickness is 0.4-0.6mm, coated steel sheet or aluminum sheet. Custom style decorative sheet profiles are welcome!


 Application - Aluminum Suspended Ceiling Tile

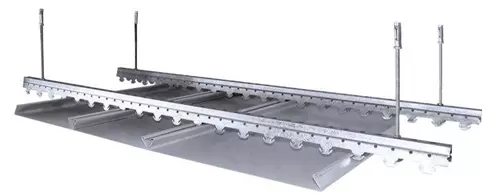

Interior metal ceilings are available in a wide range of standard color and RAL color. We also supply a special range of finishes and color for bespoke projects. For further information on our extensive range of interior ceiling applications and the color and finishes available, please contact our sales office. The following installation for this C shaped aluminum strip ceiling system is as reference.




TAG: Decorative Clip-in metal Ceiling Panel Roll Forming Machine, S shaped closed strip ceiling machine, C shaped suspended colored steel strip ceiling machine, Decorative Metal Suspended Strip Ceiling panel
