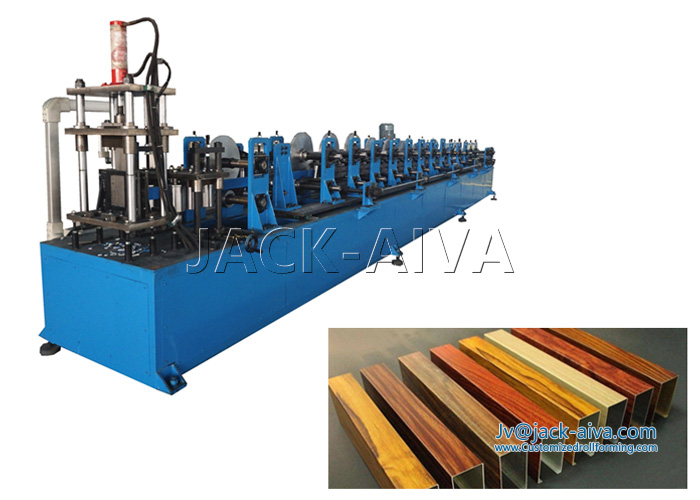

Suspended Aluminum Strip Baffle Ceiling Machine
■ Suspended Metal Strip Baffle Ceiling System Brief introduction
Aluminum Baffle Ceiling is one of the ceiling materials in recent years, It has many characteristics, Including an open field of vision, ventilation, breathable, neat the crisp lines, distinct, all these reflecting its concise modern style. The raw Material can be aluminum alloy, galvanized iron and stainless steel material is also available. With the Suspended Metal strip ceiling easiness of installation and the possibility of making changes any time after installation without infrastructure. The decorative Suspended Strip Baffle Ceiling is widely adopted in offices and residential buildings, In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads.
■ Technology specification- Suspended Aluminum Strip Baffle Ceiling Roll Forming Machine

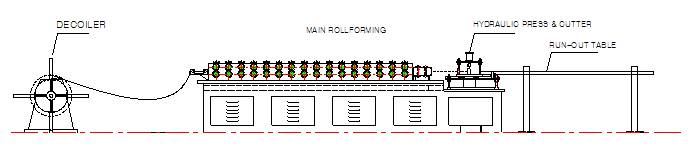

Ceiling Panel roll forming machine is consisted of de-coiler, main roll forming machine, hydraulic cutter , run-out table, electrical control system, etc.. Roll Forming Line technology flow is as following,
■ Main parameters - Suspended Aluminum Strip Ceiling Roll Forming Machine
|
Line structure
|
Portal-type frame style, 45# steel
|
|
Forming Roller Stations:
|
12 Stations
|
|
Forming Roller shaft:
|
Φ40mm
|
|
Forming rollers
|
Cr12MoV, Quenching, hardness HRC56-58º
|
|
Forming Speed:
|
12 meters / min
|
|
Main motor:
|
5.5kw
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized or colored Sheets
|
|
Raw material
|
Colored steel, aluminum
|
|
Sheet Thickness:
|
0.5mm-0.8mm
|
|
Control mode
|
3xAC380V. 50HZ. (Other system is optional)
|

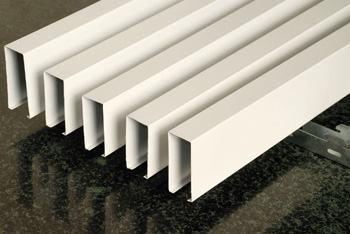

■ Typical Decorative aluminum strip ceiling profiles for reference
|
High(mm)
|
Width(mm)
|
Height(mm)
|
Length(mm)
|
Legend
|
|
30
|
20
|
0.4-2.0
|
≤6000
|
|
|
50
|
25
|
|
70
|
30
|
|
80
|
40
|
|
100
|
50
|
|
120
|
60
|
|
150
|
80
|
|
180
|
100
|
|
200
|
150
|
|
300
|
200
|
|
Raw material
|
Aluminum alloy, the grade of aluminum alloy can be selected according to the actual requirements; besides, galvanized lron and stainless material is also available.
|

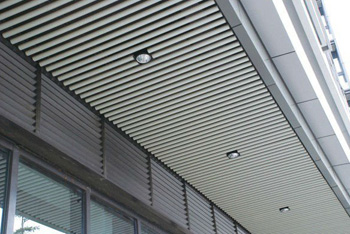

■ Aluminum Building Material Suspended Strip Baffle Ceiling Application
The Aluminum Suspended strip baffle ceiling also named C Shaped Suspended Aluminum Strip Ceiling.
This Metal Suspended U-shaped Strip Ceiling can be applied to many projects, as all kinds of clip-in ceiling, home decoration, office, meeting room, school, grand hotel, hospital, supermarket, subway station or some other high-class place. The following installation for this C shaped aluminum strip ceiling system is as reference.
Custom style decorative sheet profiles are welcome!
