Aluminum Lay-in Ceiling Tile Semi Auto Line

■ Semi-automatic Production Line Technology Specifications- Aluminum lay-in Ceiling Panel Tile Machine
Our full automatic suspended aluminum ceiling panel tile production line is to replace the traditional manual control machines, the advantage of our line can avoid the defects of the product precision, and the high precision, less labor cost and processing speed can be obtained. This is the traditional design, the straight style aluminum ceiling panel production line for 600x600mm, if client only produce the fixed type of ceiling tile, and size is no more than 600mm. then this is the proper solution with its simpler control system if compared with L shape auto line.

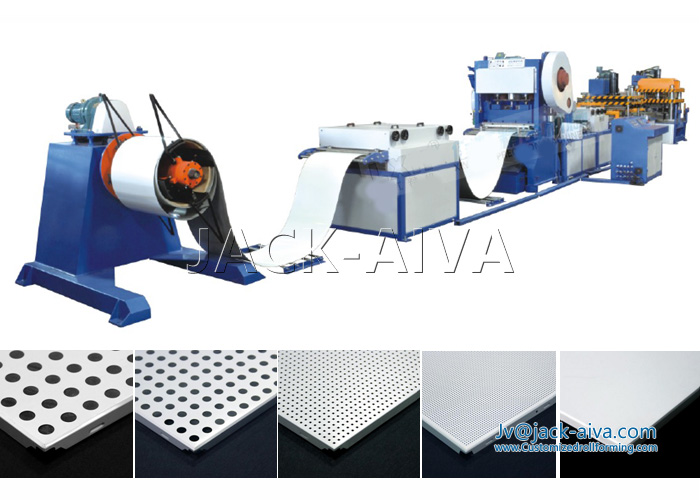

It is consisted of two machines,  One line for production the flat Sheet of Perforated Aluminum lay-in ceiling panel tile. Another machine for ceiling tile edge forming.
This is the solution adopted by most clients because of its lower investment, and simple operation, if the Perforated Aluminum lay-in ceiling panel tile production quantity is not too much, this is the proper solution.

■ Line 1 Technology Flow

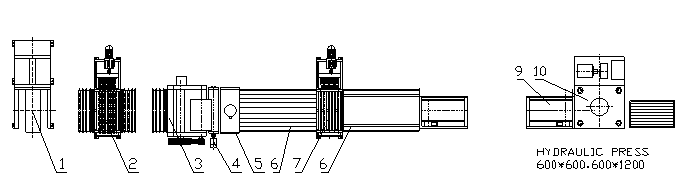

5T De-coiler (1) -- 1st leveler (2) ---- 120T punching holes device (3) --- CNC Servo feeder (4) --- 80T Hydraulic press for angel notching & Cutting (5) ---- Conveying platform (6) ---- 2nd leveling (precision) (7) --- ---- Conveying platform (6) ---

■ Line 2 Technology Flow
Conveying platform --- 240T Hydraulic press for forming tile edge (10 )--- Conveying platform --- finished aluminum ceiling tile



■ Roll Forming Machine Main parameters - Perforated Aluminum Clip In Ceiling Tile auto line 600*600
Profile type
Aluminum Ceiling Tile of Lay In, Lay On and Clip In
Aluminum tile sizes
600mm*600mm,600mm*1200mm
Perforation holes Size
Φ 1.5mm/1.8mm/2.3mm/2.5mm/3.0mm
De-coiler
5T,380V,2.2KW,50HZ
Leveling machine
2.2kw ,380V, 5pcs level rollers
Servo feeder
high precision ,tolerance is (±0.2mm).
Mold type
punching mold, cutting mold
Gantry punch
120T,Motor:15KW,votage:380V

■ Brief Introduction- Decorative Material Aluminum ceiling panel tile
With its easiness of installation and the possibility of making changes any time after installation without infrastructure. The Aluminum Decorative Metal Ceiling is widely adopted in offices and residential buildings, In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads.
The standard sizes of Decorative material Aluminum Ceiling panel Tiles are 00x600 or 600x600, 600x1200. Plain or pattern can be selected according to the actual requirement. The normal Perforation Diameter are Φ0.8mm, Φ1.8mm, Φ2.3mm,Φ3.0mm etc. The most popular suspended perforated lay in aluminum ceiling tile is clip in ceiling panel 600*600.
Our manufacturer has been in this roll forming machinery industry more than 25 years, one of the earliest one to supply this for this aluminum ceiling tile machine. Till now we still the lead supplier in china. The custom style Perforated Aluminum Clip In Ceiling Tiles can be prepared according to client request, including the Lay In ceiling tile, Lay On ceiling tile and Clip In ceiling tile etc.

■ Relative information for Ceiling clip in production line
We have the full ability to design all kinds of aluminum ceilings production machine according to client ceiling panel profile drawing or sample and the necessary information.

■ Typical Clip in ceiling specification
1. 600*600mm, 300*300mm, 300*600mm, 300*1200mm, 600*1200mm
2. Thickness: 0.5mm~1.0mm.
3. Edge: 18mm or 20mm.
4. Style: Panel or perforated (Diameter: 1.8mm, 2.0mm, 2.2mm).

■ Ceiling clip in Moulds

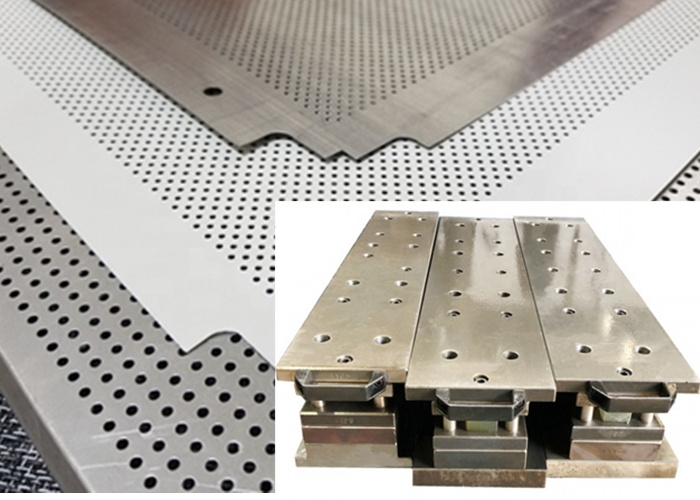

The moulds is the most important part in this line, the normal steps for processing square metal clip in ceiling is including cutting corners, forming and bending, punching holes. When to design the diameter of 0.6mm-100mm aperture metal ceilings punching die, the die adopts CR12 or material CR12MOV as raw material. Heat treated to HRC58-60 degrees. The normal holes diameter is as following, Φ1.8, Φ2.0, Φ2.3, Φ2.5, Φ3.0, etc. The integrated ceiling mold is designed according to customer requirements. Pls contact with us for the further details!

■ Application - Perforated Aluminum Clip In Ceiling Tile

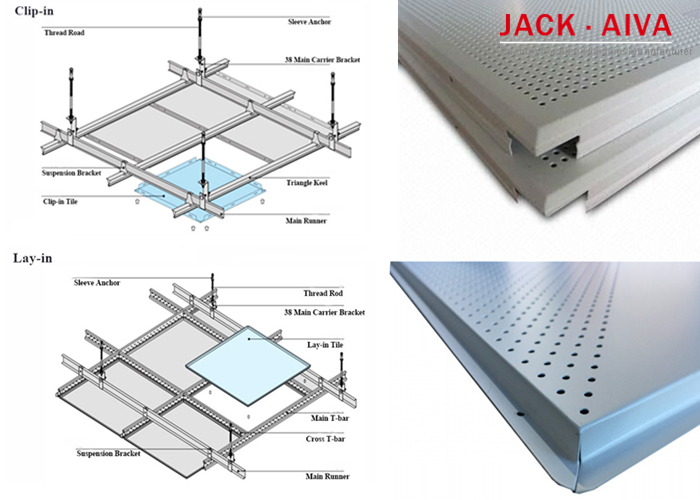

The Clip in square ceiling is widest applicable among all type of ceiling with its outstanding advantages, Ceiling tile of Lay In, Lay On and Clip In. This suspended ceiling system is mainly used in project for big area with soundproof requirements, such as hotels, stores, office building, hospitals, railway stations, metro stations and so on. The following installation for Clip-In Plain / Clip-In Perforated ceiling tile as reference.


The ceiling tile production machine can be custom prepared according to clients’ request. You are welcome to contact with us for the further details.
TAG: Perforated Aluminum Clip In Ceiling Tile Auto Line, Lay In Ceiling Tile, Lay On Ceiling, Clip In Ceiling Tile Machine, Aluminum Ceiling Tile Production Line
  • Last:Perforated Aluminum Clip In Ceiling Tile Auto Line
  • Next:Ceiling Tile Textile Stick Machine
