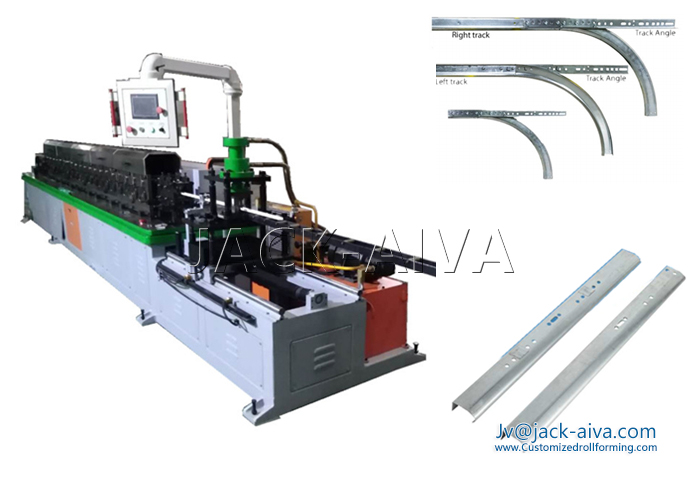

Garage Door J Profile Tracks Roll Forming Line



 Roll Forming Line For Production Garage Door J Profile Tracks
The roll forming line can manufacture the Garage Door Profile J Profile Tracks. Produced products are in fashionable design and are widely used. Garage Door Profile Tracks making Machine With the highest security in rolling J profile, Garage Door Tracks, Guide Track, Vertical Track, 2" garage door track Garage door curve track and Residential door track. The raw material is GI steel, the normal thickness is 1.2-2.0mm, The track profile can be designed according to client request. The garage doors with One Track Or Double Track Overhead Sectional Garage Door are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers.

 Machine components - Garage Door J Profile Tracks Roll Forming Line
The Garage door J profile tracks are custom built for each application with many options for your exact needs.
The while roll forming line is consisted of de-coiler, hole punching device, main roll-forming machine, cut-to-length, run-out table.

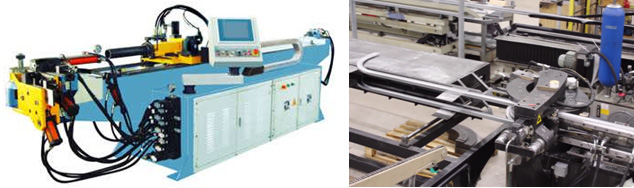

If client have the full investment for the garage door J profile tracks roll forming line, we still can supply the machine with arc bending online. Normally the arc bending is by the separate machine because of its cheaper cost.


 Main parameters- Garage Door J Profile Tracks Roll Forming Line
Line structure
Portal-type frame style,  45# steel
Forming Roller Stations:
14 Stations
Forming Roller shaft:
Φ42mm
Forming rollers
CR12MOV, Quenching, hardness HRC60-62º
Forming Speed:
0-12 m/min
Main motor:
5.5kw
Material of Sheet:
Σs≤260Mpa
Feeding material thickness:
1.5 to 2.0 mm;
Cutting mode:
Automatic control cut-to-length
Power supplier
AC380, 50HZ, 3 PHASE

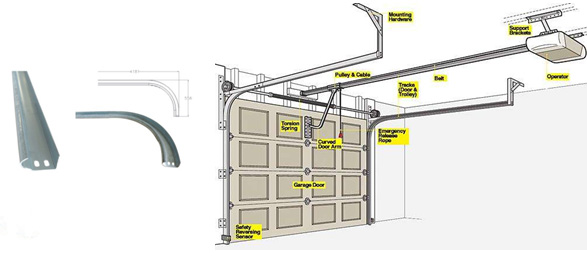

 Garage Door J Profile Tracks
Many Garage doors tracks of different specifications can be produced by our machine. And it can also produce doors according to customers’ special needs. The following drawings are some of the Roll-up blinds slat your reference.




TAG: Garage door Track roll forming line, J Profile Tracks, Garage Door Track, Guide Track, Vertical and Horizontal Track, Garage door curve track, Residential door track, L-profile track and ABS Curve Garage Door Double Track
