Concealed Drawer Slide Roll Forming Machine,3 folding

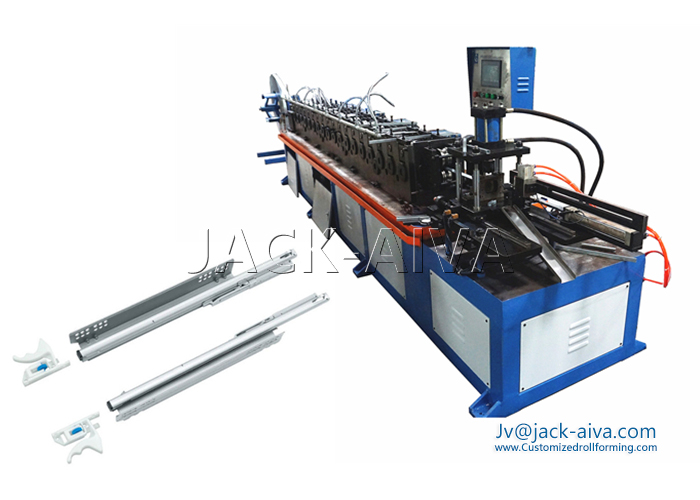

Roll forming machine for the manufacture V6 Soft Closing Concealed Drawer Slide- 3 folding slides

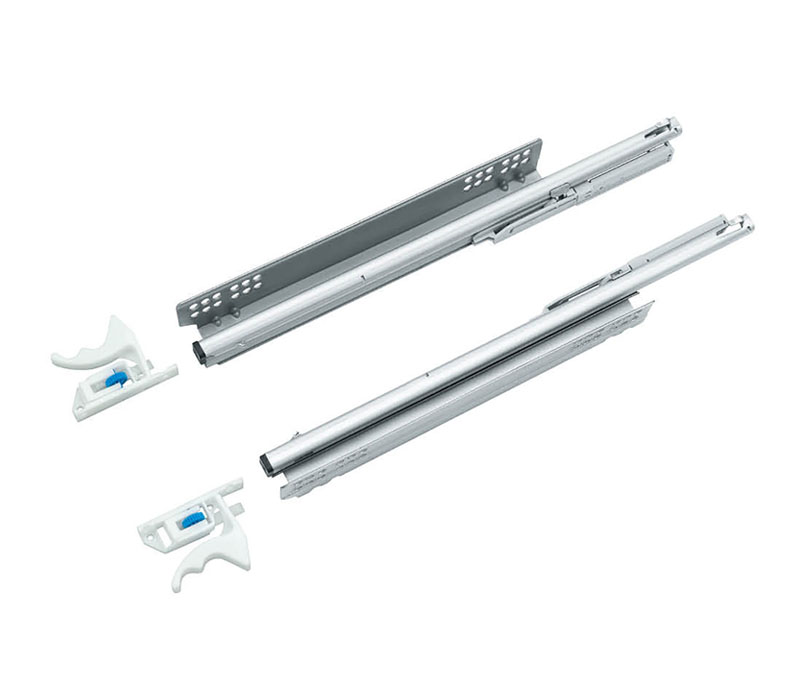

The V6 Full Extension Soft Closing Concealed Drawer Slide are consisted of one outer runners, One middle track and one inner guide. They can be fabricated from almost any material and in almost any length. the V6 Concealed Drawer Slide are currently used in Application: office furniture, civil furniture, cabinets, etc.


Brief Introduction- Full Extension Soft Closing Concealed Drawer Slide Roll Forming Machine
Our manufacturer is the earliest on in china to design and supply this cabinet drawer slides roll forming machine. even more earlier than Taiwan manufacturer in this industry. With around 30 years manufacturing experience, advanced design concepts and processes. Using CNC numerical control equipment, processing, and improve the accuracy of wheel size. The design is reasonable, accurate, and the processing of high precision, good stability, the equipment, The products produced stable and high accuracy.
We are not only far ahead in technology research and development strength, talent, design, processing equipment, process, product accuracy and stability of advanced equipment in such areas as far away ahead in the industry! CNC numerical control equipment used for precision machining of the roll forming rollers, using the second element image measuring instrument for forming rollers detection, ensure that the design, processing, installation of data unity, ensure that the equipment within the accuracy of 0.03mm.

Technology Specifications- 27mm Ball bearing Sliders Roll Forming Machine

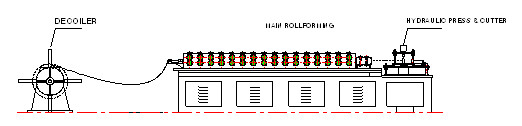

The whole High-precision steel ball slide rail equipment (Metal Drawer Slides Roll Forming Machine) is consist of De-coiler, main forming machine, straightening part, Punching & Cutting, electrical control system, etc.


Main Parameters-2 Folding 27 mm Ball bearing Sliders Roll Forming Machine

ITEM CONTENT
Raw material Cold rolled Steel strip
Thickness:
(Inner track* middle track * Out track)
1.0xl.0xl.2mm /1.2x1.2x1.5mm
Roll formed profile:
(Out track / middle track / inner track)
27mm 2 folding ball bearing slides
Forming Roller Stations: 12 Stations / 12 stations
Forming Roller shaft: Diameter 52mm, 45# after polishing
Forming rollers Cr12MoV, after treatment, its hardness is HRC60-62.
Forming Speed: 12 meters / min
Main motor: 7.5kw
Material of Sheet: Soft Quality (Annealed) Galvanized Sheet
Cutting mode: Hydraulic tracing cutter, driving by servo motor
Tolerance: +/-0.15mm; Tracing style is optional
Production Efficiency: 200 000 PCS per Month
Control Cabinet 3xAC380v, 50HZ

V6 Full Extension Soft Closing Concealed Drawer Slide
V6 type of concealed drawer slides is the popular style in the world market, it is widely adopt for bedroom furniture, sliding cabinet doors, office cabinets and bathroom cabinets etc.
There have various length about this three folding concealed drawer slides,. After joint with punching and Robotic arm, this slides can be finished by Our roll form machine at one time. Then need the assembly machine for installation.

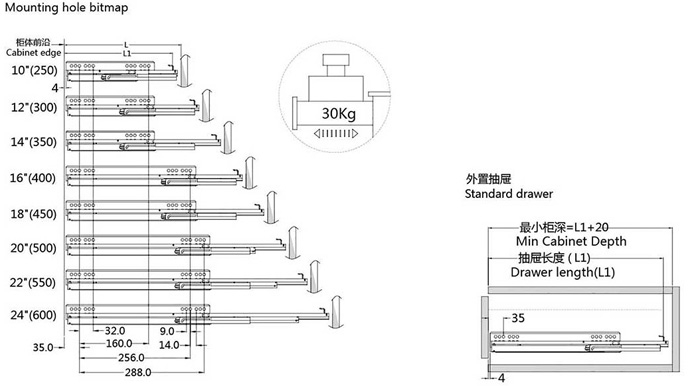

The following type sizes are for reference.

Welcome to contact with us for the further details!
TAG: V6 Full Extension Soft Closing Concealed Drawer Slide Roll Forming Machine, Undermount Slide) HIDDEN SLIDES
