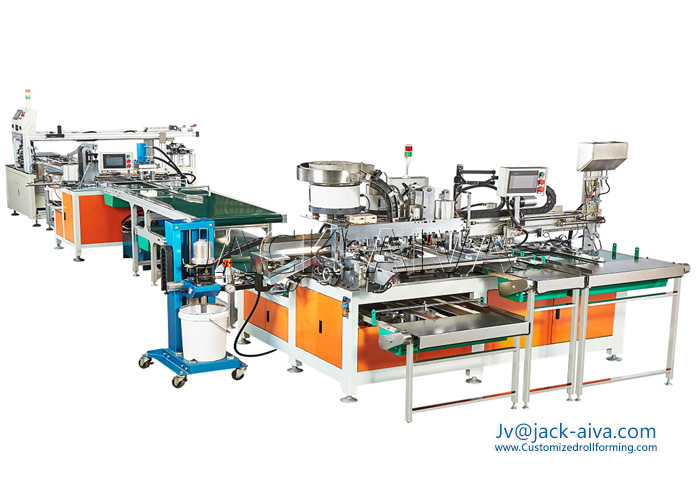

■ Full Automatic Assembly Machine for the Drawer Slide Ball bearing Sliders

The is the Full Automatic Drawer Slide Ball bearing Sliders Assembly Machine. The efficiency can be 20-27 Pcs/minute. It can be fabricated from almost any material and in almost any length. the cabinet ball bearing slides are used in tool boxes, truck boxes, shop desks, work benches, vending machines, broiler drawers, medical carts and AV equipment racks. This line is developed by Our partner ZXS manufacturer, for this full auto assembly machine, ZXS is the earliest on in china to design and supply this line. Now its quality and functions are much better than some European market machines in this industry. With its competitive price, high efficiency and stable quality, it is very popular in the world market. We are not only far ahead in technology research and development strength, talent, design, processing equipment, process, product accuracy and stability of advanced equipment in such areas as far away ahead in the industry! Brief Technology Specifications- Full Automatic Ball bearing Sliders Assembly Machine - Manual labor required: 2 persons - Energy power: AC380V - gas source: 0.5-0.8 Mpa - Required space 7m*3m*1.7 m - Capacity 20~27 pcs/minute Main Components Parameters- Full Automatic Ball bearing Sliders Assembly Machine

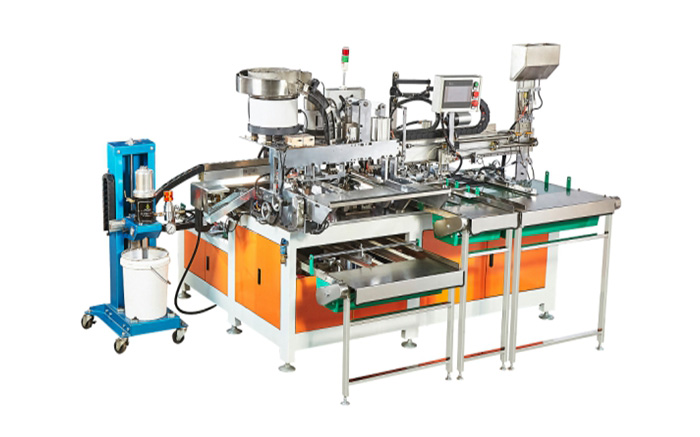

■ Automatic Assembling Machine

1、3m*1.6*0.8m frame is welded by square tube, surface paint processing, color please look at the picture

2.Japanese imported SMC cylinder + supporting inductor (electronic valve, confluence board, filter triplet) other sensors used in China
3、1 set of the delta circuit control system (including PLC).
4、DELTA servo motor 700W, 1500W, 400W each 1 set.
5、Taiwan imported oil injection system 1 sets (including 1 pump head, pneumatic oil injection valve 2, 2 pressure valve, pressure relief valve 1).
6、Taiwan TBI slider ：10 meters ，slider：12 pcs
7. 2 pcs Delta operating interfaces (in Chinese and English).
8、The supporting stainless steel bracket conveyer belt ：3 pcs
9、vibrate discs:3 pcs
10、Customized AC transformers：1 pcs
11、alarm lamp ：1 pcs
12、Energy required: power AC380V 50-60Hz; gas source 0.5 - 0.8Mpa
13、Manpower required: This product consists of 9 parts (including oil injection), and a total of 2 personnel are required to operate the machine and feed
14、The 20mm thickness panel and the surface of the parts are plated with chromium.

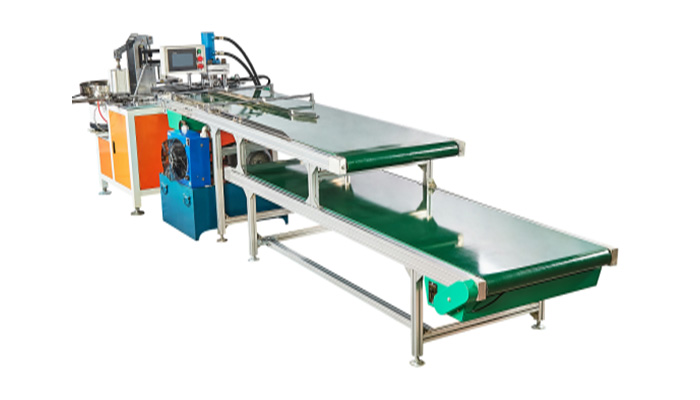

■ Bending Machine And Conveyer

1.Installation of outer rail blocking plastics
2.Soft close component assembly (Component manual feed)
3.Outer rail bending
4.Printing Trademark
5.General specifications: length 200-650mm and thickness 0.8-1.2mm for the same specifications
6.Capacity: 22-30 pcs/minute

■ Main configurations

1、1.2m*1.6*0.8m frame is welded by square tube, surface paint processing, color please look at the picture
2、Japanese imported SMC cylinder+supporting inductor(electronic valve,confluence board,filter there parts)other sensors used in China
3、1 set of the delta circuit control system (including PLC).
4.vibrate disc
5、Custom AC transformers：1 pcs
6、 Delta operating interfaces：1 pcs (in Chinese and English).
7、Taiwan TBI Slides and Sliders
8、Energy required: power AC380V 50-60Hz; gas source 0.5 - 0.8Mpa
9、Required labor: 1 person to operate the machine and the material when making soft close components
10、20mm thickness panel and parts surface chrome plating

■ Main configurations

1、Power is made in South Korea DMK brand ACA220V, 120W electronic speed control motor with reducer and speed controller 2 sets
2、Speed 1-4 meters/minute (speed regulation), weight 30KG.
3、Made of 40*80*2mm thickness aluminum profiles
4、700 mm width, 2 mm thickness European made green anti-static PVC strap :2 strips
5.Length: a single 2 meters, composed of double layers 3.5 meters

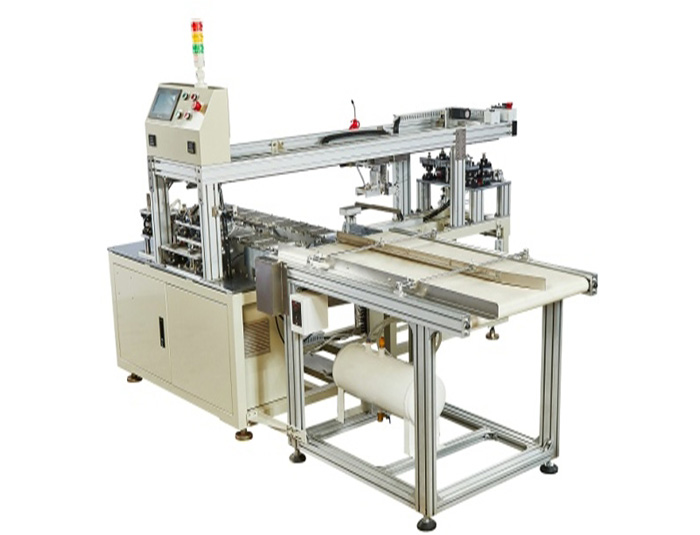

■ Automatic Polybag Packing Machine

1、2.2m*1.4*0.8m frame is welded by square tube, surface paint processing, color please look at the picture
2、Japan imported SMC cylinder + supporting sensor (electronic valve, manifold, filter two-piece) other sensors used Panasonic
3、1 set of the delta circuit control system (including PLC).
4.Delta servo motor 400W： 3 sets
5、Custom AC transformers：1 pcs
6、Delta Display Screen( Chinese and English Language)
7、Taiwan TBI Slides and Sliders
8、20mm thickness panel and parts surface chrome plating
9、Energy required: power AC380V 50-60Hz; gas source 0.5 - 0.8Mpa
10、Labor required: This machine processes a total of three processes, Need three workers only.
11、Supporting aluminum stent conveyor belt ：1 pcs.
12、Vacuum generator ：1 set
