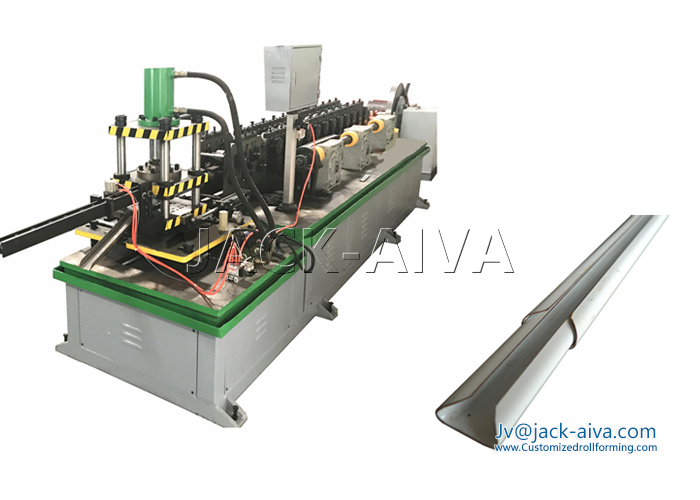

Metal Telescopic Curtain Track Machine


 Roll Forming Machine for the manufacture of C profile metal telescopic Curtain Track
The kind curtain rail is facility for installation, there has the smaller size curtain rail inside the big size curtail rail, easy to be adjusted the length. There have two machines for this kind curtain rails actually. Because of its high precision requirement, if without professional software and full experience, few roll forming engineers in Chinese market can design the excellent line.

 Roll Forming Machine Components - C profile metal telescopic Curtain Rail
The whole Curtain Rail Roll Forming Machine is consist of De-coiler, main forming machine, straightening part, cut-to length part, run-out table, electrical control system, etc.

 Metal Curtain Track Roll Forming Machine main parameters
Line structure
Portal-type frame style,  A3 steel
Forming Roller Stations:
12-16 Stations
Forming Roller shaft:
Φ36mm
Forming rollers
GCr15, Quenching, hardness HRC56-62º
Forming Speed:
12 -16 meters / min
Main motor:
4kw,
Material of Sheet:
Soft Quality (Annealed) Galvanized Sheet
Sheet Thickness:
0.4 to 0.5 mm
Cutter Device
Hydraulic press

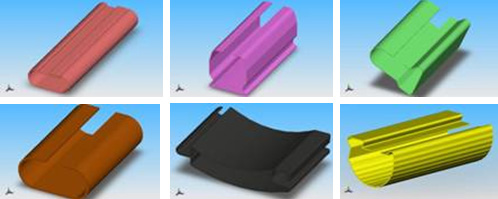

 Related Curtain Track Roll Formed products as reference
The curtain rail cold roll forming machine is designed according clients’ drawing or sample. These metal curtain rail tracks are all the style popular in the world market.

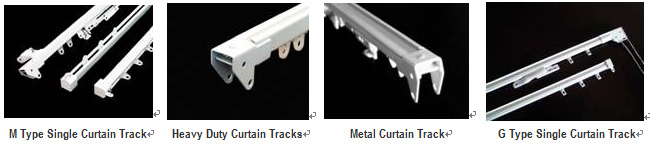

 Curtain track Application
The following are some completed metal curtain track products are client’s reference, we also can supply these related custom cold roll formed curtain track according to client’s request.




Welcome to contact with us for the further details!
TAG: Curtain Rail Roll Forming Machine, Curtain rails machine, Metal curtain tracks machine, Telescopic Track Roll Forming Machine, Curtain Track roll forming machine, Telescopic Track Roll Forming Machine
