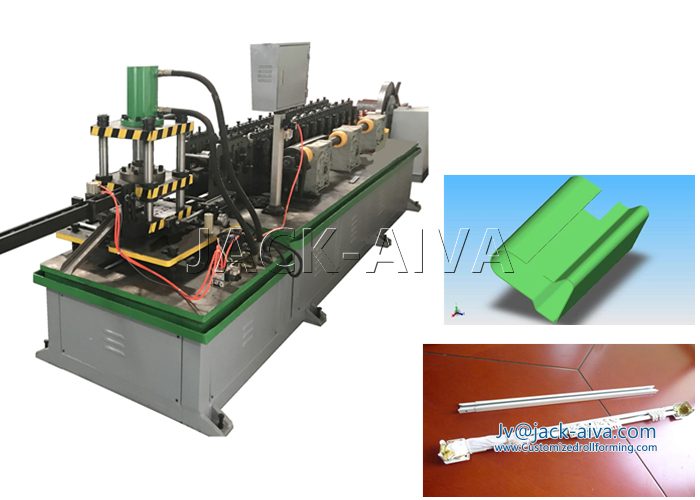

F type metal Curtain Track Roll Former
■ Roll Forming Machine for the manufacture of metal Curtain Track
The kind curtain rail is facility for installation, there has the smaller size curtain rail inside the big size curtail rail, easy to be adjusted the length. There have two machines for this kind curtain rails actually. Because of its high precision requirement, if without professional software and full experience, few roll forming engineers in Chinese market can design the excellent line.
■ Curtain Rail Roll Forming Machine Components

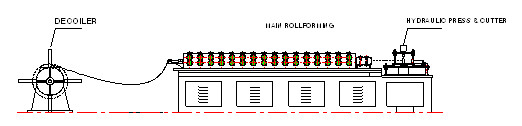

The whole Curtain Rail Roll Forming Machine is consist of De-coiler, main forming machine, straightening part, cut-to length part, run-out table, electrical control system, etc.
■ F type Metal Curtain Track Roll Forming Machine main parameters
|
Line structure
|
Portal-type frame style, A3 steel
|
|
Forming Roller Stations:
|
12-16 Stations
|
|
Forming Roller shaft:
|
Φ36mm
|
|
Forming rollers
|
GCr15, Quenching, hardness HRC56-62º
|
|
Forming Speed:
|
12 -16 meters / min
|
|
Main motor:
|
4kw,
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
0.4 to 0.5 mm
|
|
Cutter Device
|
Hydraulic press
|

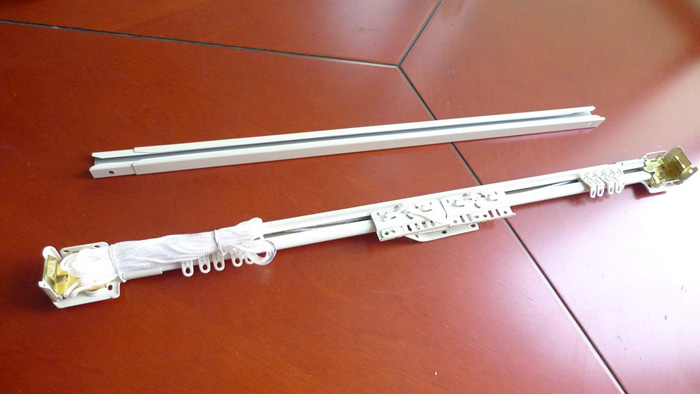

■ F type Curtain track Application
The curtain rail cold roll forming machine is designed according clients’ drawing or sample. These metal curtain rail tracks are all the style popular in the word market.
we also can supply these related custom cold roll formed curtain track according to client’s request.
Welcome to contact with us for the further details!
