Rolling Shutter Octagonal Tube Machine

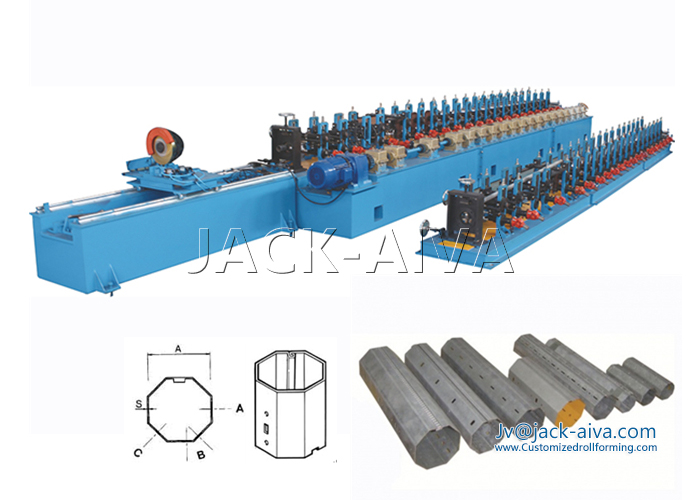

 Roll Forming machine for Octagonal Tube of Rolling Shutter Windows and Doors system
The octagonal rolling tube is for winding up the rolling shutter, made in various shapes. Our mission is to provide excellent custom octagonal rolling tube roll forming machines and tools for professional rolling shutter door and windows installation and quality product at competitive prices, such as Octagonal and round pipe forming machines for Residential tube Machines and Commercial tube Machines.


 Rolling shutter Octagonal tube Roll Forming Machine Components

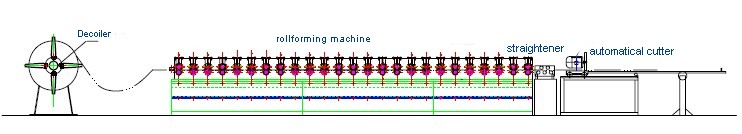

Rolling shutter octagonal tube Roll Forming machine is consisted of de-coiler, material feeding flatting device, punching system, roll forming machine, straightening device, tracing cutter with round saw, run-out table, etc.




 Rolling shutter Octagonal tube Roll Forming Machines Main Parameters
Line structure
Portal-type frame style,  HT200 steel
Raw Material
Octagonal Tube 50mm:185mm
Octagonal Tube 60mm:215mm
Octagonal Tube 80mm:300mm
Forming Roller Stations:
Around 25Stations
Forming Roller shaft:
φ60mm
Forming rollers
GCr15, Quenching, hardness HRC56-62º
Forming Speed:
12 meters / min
Main motor:
11kw,
Capacity Length:
up to 9999 mm (optional)
Material of Sheet:
Soft Quality (Annealed) Galvanized Sheet
Sheet Thickness:
0.8to 1.2 mm
Cutting mode:
Tracing cutting system with round saw or hydraulic cutter is optional.
Total Gross Weight:
About 6000kgs
Line size (Lx w x h)
6000 mm×1000 mm×1100 mm

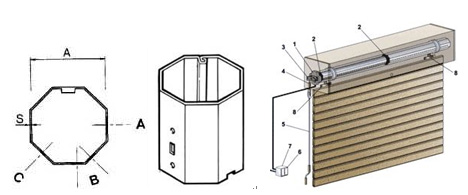

 Rolling shutter Octagon Tube for door and windows related information
Rolling shutter door & windows Octagonal tube


A=40mm diameter tubes: 0.5-0.6mm thickness;
A=60mm diameter tubes: 0.6-0.8mm thickness;
A=70mm diameter tubes: 1.0-1.2mm thickness;
The up mentioned three tubes, 40mm, 60mm, 70mm are the typical style in the world market. Custom sizes are welcome!
The round shape tube or octagonal tubes can be selected by client.
TAG: Octagon Tube Forming Machine; Octagonal Tube Forming Machine, rolling shutter octagonal tube
Rolling shutter tube Forming Machine
  • Last:Rolling shutter Door Pipe Machine
  • Next:Aluminum Covering Boxes Machine
