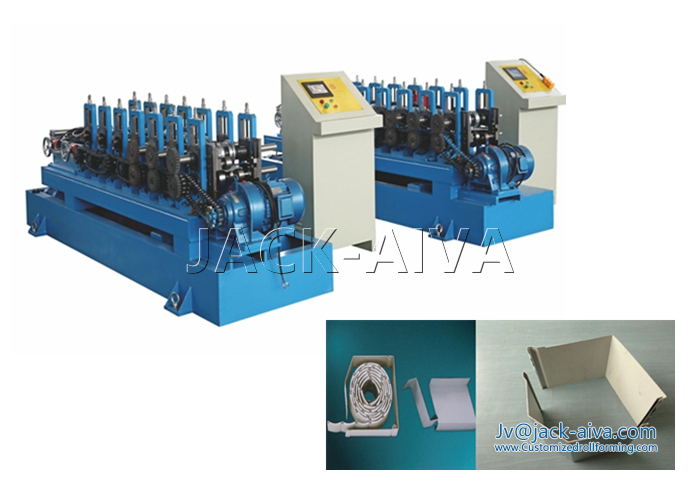

Aluminum Covering Boxes Machine


 Roll forming machines for Rolling Shutter Door Roller cover
Rolling shutters door now have been extremely popular not only in Europe, but in the whole world. The roll shutter business has grown to become a multi-billion dollar industry. Rolling Steel Doors, Fire Doors, rolling shutter, rolling grille, coiling doors, direct manufacturer, Using quality materials, design and workmanship, Our complies with the highest security in rolling fire doors, offshore rolling doors, offshore rolling fire doors, storm doors, Rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. Alpines, rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles, are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers. Also designed for warehouses, Dock Doors, distribution outlets, food concession stands, hospitals, store fronts and oil-rig platforms.

 Technology specifications- Rolling Shutter Door Aluminum Box Roll Forming Machine
Roll-formed aluminum boxes, it is consisted by two profiles, joined by lock seam.
The whole roll forming machine is consisted of de-coiler, main roll-forming machine, straightening part, device, cut-to-length tracing cutter, run-out table, etc. Various width can be obtained by our roll forming machines.
Rolling shutters are custom built for each application with many options for your exact needs.

 Main parameters- Rolling Shutter Door Aluminum Box Roll Forming Machine

Line structure

Portal-type frame style,  45# steel

Forming Roller Stations:

12 Stations

Forming Roller shaft:

Φ36mm

Forming rollers

GCr15, Quenching, hardness HRC56-62º

Forming Speed:

0-12 m/min

Main motor:

5.5kw

Material of Sheet:

Σs≤260Mpa

Width adjustable

150-305mm

Feeding material thickness:

0.8 to 0.9 mm;

Cutting mode:

Automatic control cut-to-length

Power supplier

AC380, 50HZ, 3 PHASE

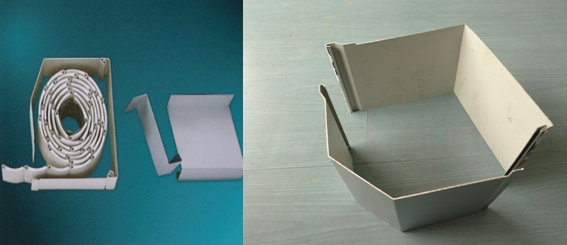

 Aluminum Covering Boxes ,Rolling Shutter Door Roller cover
Many roll shutter doors of different specifications can be produced by our machine. And it can also produce doors according to customers’ special needs. The following drawings are some of the doors just for your reference.
