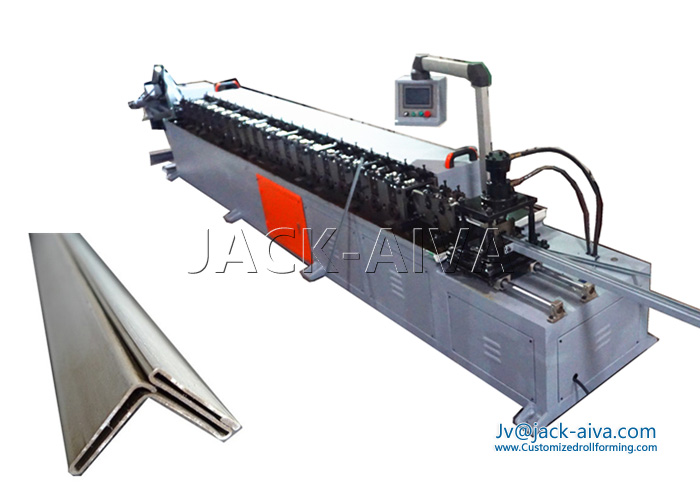

Standing “S” Cleat Roll Forming Machine



■ Roll Forming machine for production Standing “S” Cleat
The standing "s" cleat profile is as a member in this HVAC ducting industry, manufactured by roll forming machine. We specialize in Custom Roll Forming industry, and provide cold roll forming machines and equipment for all types of industries, with furnished the special metal sheet cold roll forming equipments. The scope of supply to embrace complete roll form systems or production lines is to be extended. It is the advantage for us to supply you the quality machine.

■ Standing “S” Cleat Roll Forming Machine Technology Specification
Standing “S” Cleat Roll Forming Machine mainly consists of conic, guide equipment, leveling system, roll forming system, cutting system, run-out table, hydraulic station, electric control cabinet.

■ Standing “S” Cleat Roll Forming Machine Main Parameters

Raw material:

GI steel strip

Raw material thickness capacity (mm):

1.0mm.

Forming roller station quantity:

About 15 Stations

Forming roller material

CR12, AFTER treatment. HRC58º-60ºc

Roller shaft diameter

Φ40mm

Station side steel plate thickness

25mm

Motor power

3kw, 3xAC380v, 50HZ

Weight (KG):

About 2000kg

Line speed

Adjustable, 0-10m/min

Line Dimension (L*W*H)mm:

7500x750x1500

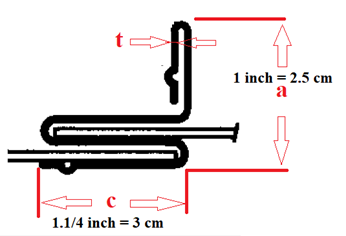

■ Standing “S” Cleat profile
The following typical style standing s cleat for reference.  The custom roll forming profile is welcome!
