Angle Iron Punching & Cutting Machine

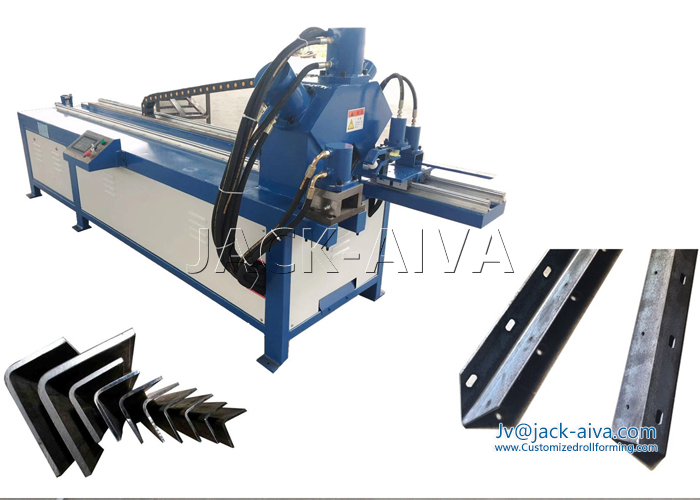

■ Brief Introduction- Angle Iron Punching & Cutting Machine
Angle Iron profile is as an integral part of light steel frame is roll-formed from Hi-Tensile GI steel. With its advantage, it is very popular in the present market, The Steel angel is widely adopted in Building construction Industry – commercial and residential, they are primarily used to provide lightweight, economical, efficient roofing and cladding support systems for framed structures, etc. The normal thickness of L angle is from 1-5mm.

■ Main performance
The Angle steel punching and cutting machine change the traditional flange production way, Automatic punching and cutting all-in-one machine for production angle Irons for various fields. The most advantage of this hydraulic angle steel machinery is the production efficiency increased and the labor cost reduced too much. With its high efficiency, safety and reliability, it is very popular in the present market. This is a Fully automatic CNC Angle method in production line, controlled by PLC servo motor driving system, cut to length size is accurate.
- Simply operation, just needs to enter the total length, holes distance, quantity.
- Adopted a independent development system to improve accuracy of feeding and punching.
- Using PLC and servo motor , more effective and stable .
- The important hydraulic, electrical components used in all superior grade products.
- The self-diagnosis and date statistics function.
- Automatic punching and cutting.
- Chinese or English control manual.

■ Main Technology Parameter



Size of angle iron(mm)




Punching holes (mm)

- Bolt holes: 9*13mm,   (Bolt hole moulds 1set)
  Custom prepared punching moulds for holes 11*15 mm
- Rivet holes: Φ4.2mm (Rivet hole moulds 1 set,  punching pin 5pcs included.)

Angle strip feeding Speed:


Length tolerance


Hydraulic system

Hydraulic pressure:12Mpa

46# OIL

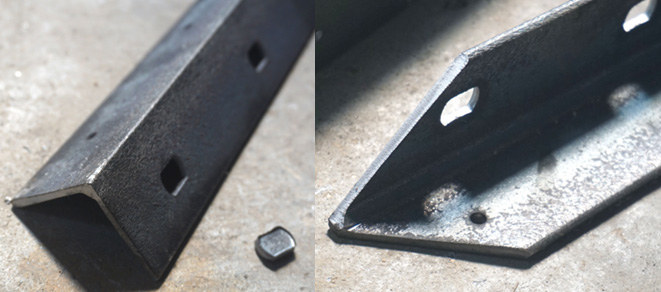

■ Application of the Steel angel with punching holes
After change the different style punching moulds, the Angle iron punching and cutting machine can meet the needs of different users.
The angle iron can be composed of various force-receiving members according to the different needs of the structure, and can also be used as a connecting member between the members. Widely used in various building structures and engineering structures, such as house beams, bridges, transmission towers, cranes, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, etc.
The L angle, flat sheet, U channel, Pipes all can be processed, punching holes and cut to length.
Custom request are welcome!


TAG: High quality sheet metal angle iron punching and cutting machine, mental flange fabrication duct steel forming,CNC Angle iron punching cutting, steel flange production line CNC machine, HVAC angle iron steel flange punching and cutting making machine, Hydraulic Punching Machine for Steel Metal Angle and Tubes and Profiles, Channel punching, flat Steel Hydraulic CNC Automatic hole Punching Machine, automatic angle iron flange oval rivet/nut bolts hole punching and shearing machine, Automatic punching and cutting all-in-one machine, for angle steel flange air duct.
