Ceiling Tile Textile Stick Machine

 Brief Introduction-  Perforated Aluminum Clip In Ceiling Tile
With its easiness of installation and the possibility of making changes any time after installation without infrastructure. The Aluminum Decorative Metal Ceiling is widely adopted in offices and residential buildings, In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads.
The standard sizes of Aluminum Ceiling Tiles are 00x600 or 600x600, 600x1200. Plain or pattern can be selected according to the actual requirement. The normal Perforation Diameter are Φ0.8mm, Φ1.8mm, Φ2.3mm,Φ3.0mm etc. The most popular suspended perforated lay in aluminum ceiling tile is clip in ceiling panel 600*600.
Our manufacturer has been in this roll forming machinery industry more than 25 years, one of the earliest one to supply this for this aluminum ceiling tile machine. Till now we still the lead supplier in china. The custom style Perforated Aluminum Clip In Ceiling Tiles can be prepared according to client request, including the Lay In ceiling tile, Lay On ceiling tile and Clip In ceiling tile etc.
Technology Specifications- Clip In Ceiling Tile Textile Stick Machine

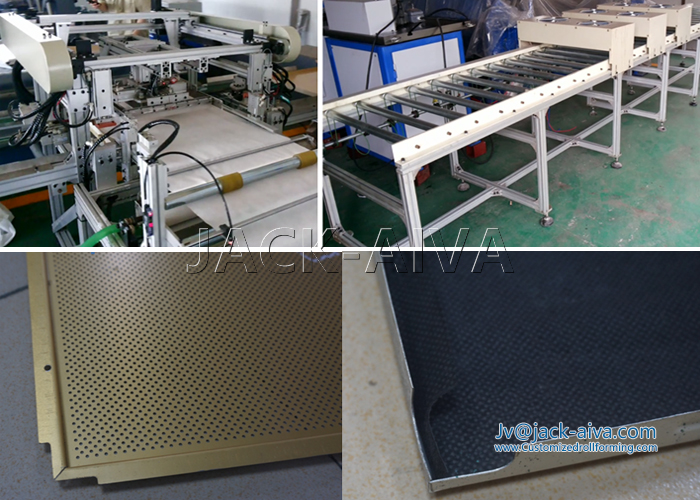

Aluminum ceiling tile textile stick machine is new developed technology which consist of automatic loading, cut, textile stick, flattening. It is fully automatic to ensure the quality and improve the production efficiency. It is widely used and wind good reputation all around the world.
This machine adopts the servo motor to drive to textile which is featured with accurate position; textile feed auto position and adjust; automatic glue feed, balance the glue level, automatic mix and cycle; hot line cut the textile to ensure the accurate; touch screen, easy to operate; full automatically and stable, textile stick flat; high functional brand sensor, long life time.
It is consisted of the following components.

 Textile conveyor, Textile press mechanism, Drying Components, textile loading device, Textile flat mechanism, Air cooler, Correction mechanism, Turnover Mechanism, Packing line, Glue Sprayer device and Textile pull.
Drying, cooling and packing line is assistance equipment for the textile stick machine. Drying machines is used for drying the aluminum ceiling tiles with the textile to ensure the glue not leak out. This drying line can make the whole production line fast and convenient.
TAG: Perforated Aluminum Clip In Ceiling Tile Stick Machine
