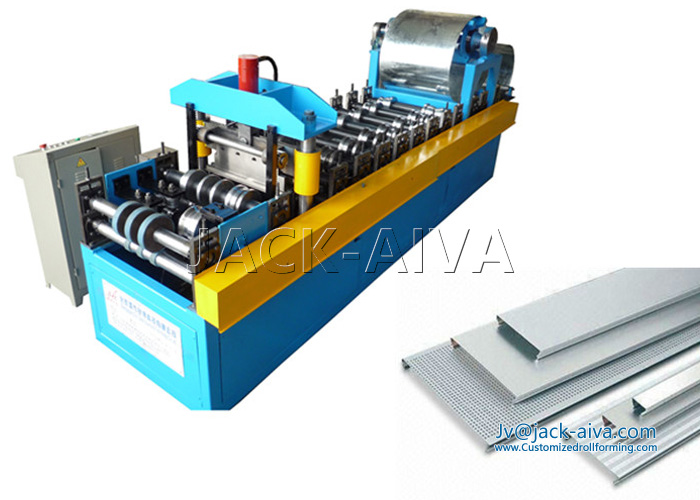

Suspended Strip Ceiling Machine

 Suspended Aluminum Strip Ceiling System Brief introduction
With the Suspended aluminum strip ceiling easiness of installation and the possibility of making changes any time after installation without infrastructure. The decorative clip in ceiling panel is widely adopted in offices and residential buildings, In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads.
The normal sizes of Aluminum strip Ceiling, width from 50-300mm, and high is 14mm, and thickness is 0.5-0.8mm. Plain or perforated aluminum profile can be selected according to the client requirement. The normal ceiling profile shapes are as following, S shaped closed strip ceiling and C shaped aluminum strip ceiling,
Our manufacturer has been in this roll forming machinery industry more than 25 years,  also the lead supplier in china for this aluminum strip ceiling roll forming machines. The custom style Ceiling machine can be prepared according to client request.

 Technology specification- Decorative Clip-in Aluminum Ceiling Panel Roll Forming Machine

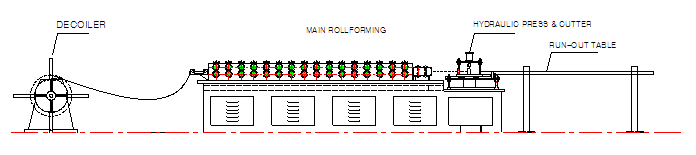

Ceiling Panel roll forming machine is consisted of de-coiler, main roll forming machine, hydraulic cutter , run-out table, electrical control system, etc.. Roll Forming Line technology flow is as following,




 Main parameters - Suspended Aluminum Strip Ceiling Roll Forming Machine

Line structure

Portal-type frame style,  45# steel

Forming Roller Stations:

12 Stations

Forming Roller shaft:

Φ40mm

Forming rollers

Cr12MoV, Quenching, hardness HRC56-58º

Forming Speed:

12 meters / min

Main motor:

5.5kw

Material of Sheet:

Soft Quality (Annealed) Galvanized or colored Sheets

Raw material

Colored steel, aluminum

Sheet Thickness:

0.5mm-0.8mm

Control mode

3xAC380V. 50HZ. (Other system is optional)

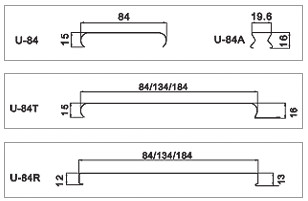

 Related Decorative aluminum strip ceiling profiles for reference
Custom style decorative sheet profiles are welcome!




 Application - Aluminum Suspended Ceiling Tile

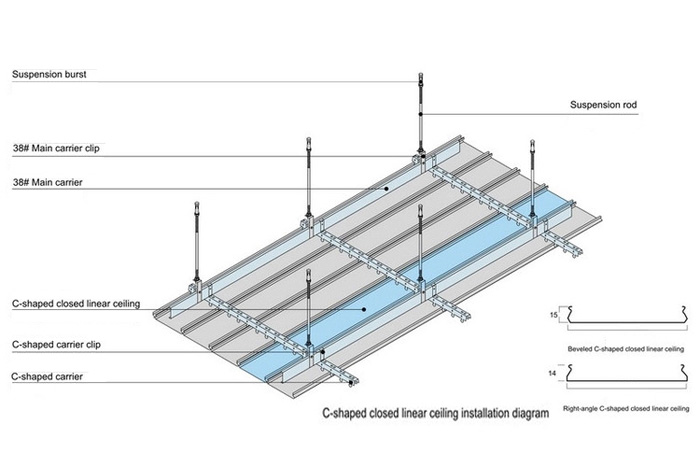

The Clip in ceiling panel is widest applicable among all type of ceiling with its outstanding advantages. This suspended aluminum strip ceiling system is mainly used in project for big area with soundproof requirements, such as hotels, stores, office building, hospitals, railway stations, metro stations and so on. The following installation for this C shaped aluminum strip ceiling system is as reference.


TAG: Decorative Clip-in Aluminum Ceiling Panel Roll Forming Machine, S shaped closed strip ceiling machine, C shaped suspended aluminum strip ceiling machine, Suspended Aluminum Strip Ceiling Roll Forming Machine
