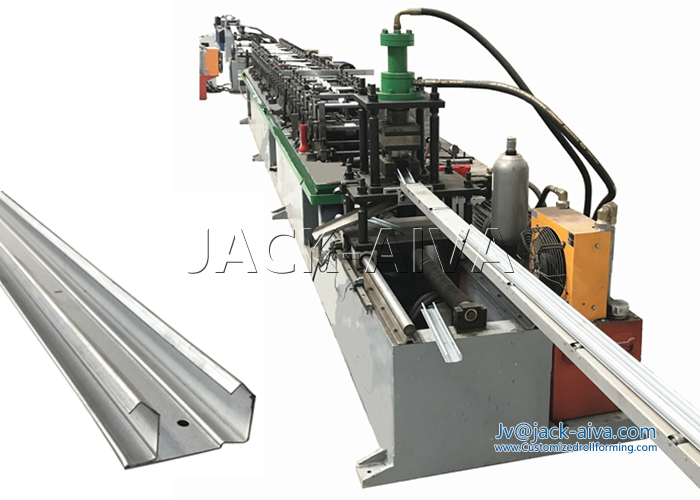

Sliding Door Track Machine


 Cold steel Roll forming machine for manufacturer metal track and frame of Sliding Door
Our Sliding Door profile Roll-forming lines mainly manufacturer for the sliding door frames and tracks. With its beautiful the lines high efficiency and accuracy, it is very popular in the market. Any custom siding doorframe profile making machines can be designed for clients. We are one of the earliest company to design the sliding door profile roll forming machine. With our engineer so many experience, Whatever one profile from one line or multiple profiles from one line, we all can supply the lines for you.

 Technology Specifications- Sliding Door frame Roll-forming line
The Sliding Door profile Roll-forming lines are custom built for each application with many options for your exact needs. Mainly the Sliding Door profile Roll-forming line is consisted of de-coiler, main roll-forming machine, straightening part, tracing cutter, run-out table, electrical system, etc.
The sliding door profile roll forming line Technology Drawing as following:

 Sliding Door profile Roll-forming machine Main Parameters
Line structure
Portal-type frame style, A3 steel
Forming Roller Stations:
25 Stations
Forming Roller shaft:
Φ42mm
Forming rollers
CR12MOV, Quenching, hardness HRC60-62º
Forming Speed:
0-12 m / min
Main motor:
4kw,
Raw material Width:
According to client’s profiles drawing or samples
Capacity Length:
up to 9999 mm
Material of Sheet:
Soft Quality (Annealed) Galvanized Sheet, etc
Sheet Thickness:
0.5 to 0.6 mm (0.5mm is requested)
Cutting mode:
Tracing flying saw cutting system
POWER SOURCE
3X380V, 50HZ
Total Gross Weight:
About 1500kgs
Line size (Lx w x h)
7500 mm×900 mm×1100 mm

 Sliding door frame & track profiles Application
With its advantage of high tensile character, the metal roll formed sliding door tracks & frames are widely used in this siding door profiles system. These roll formed metal profiles allows you versatile use with many kind of materials like, laminated chipboard, mirror, painted glass, sanded glass. The siding doors are mostly for dresser rooms, wardrobes, divisive area.

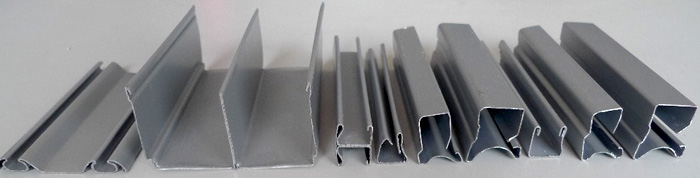

The following typical sliding door profiles are as your reference, the sliding door rail, sliding door Stiles, sliding door track and sliding door frames.




Custom style profiles for sliding door are welcome! Please contact with us for the future information!
