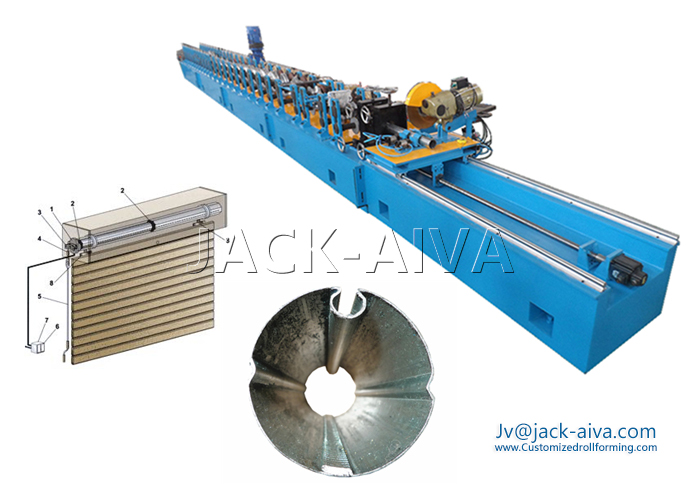

Rolling shutter Door Pipe Machine


 Roll Forming machine for manufacturing round Tube of Rolling Shutter Windows and Doors system
The rolling Pipe is for winding up the rolling shutter, made in various shapes. Our mission is to provide excellent custom octagonal rolling tube roll forming machines and tools for professional rolling shutter door and windows installation and quality product at competitive prices, such as Octagonal and round pipe forming machines for Residential tube Machines and Commercial tube Machines.


 Rolling shutter Round tube Roll Forming Machine Components

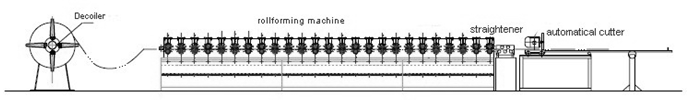

Rolling shutter Pipe Roll Forming machine is consisted of de-coiler, material feeding flatting device, punching system, roll forming machine, straightening device, tracing cutter with round saw, run-out table, etc.




 Rolling shutter Pipe Roll Forming Machines Main Parameters
Line structure
Portal-type frame style,  HT200 steel
Forming Roller Stations:
24 Stations
Forming Roller shaft:
Φ42
Forming rollers
CR12MOV, Quenching, hardness HRC60-62º
Forming Speed:
12 meters / min
Main motor:
7.5kw,
Capacity Length:
up to 9999 mm (optional)
Material of Sheet:
Soft Quality (Annealed) Galvanized Sheet
Sheet Thickness:
1.0  to 1.2 mm
Cutting mode:
Tracing cutting system with round saw
Total Gross Weight:
About 6000kgs
Line size (Lx w x h)
11000 mm×1000 mm×1100 mm

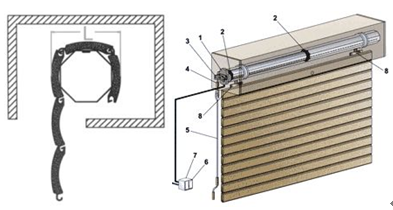

 Roller shutter round pipe for door and windows applications
Rolling shutter door & windows Round pipe


Custom sizes are welcome!
The round shape tube or octagonal tubes can be selected by client.
