Roller Shutter Bottom Beam roll forming Machine
■ Roll Forming Machine for Production Roller Shutter Bottom Bean
The Roll forming machine for production relative Rolling shutter profiles is one of our traditional leading products. Including the machines for manufacturer rolling shutters, rolling door rails, rolling rod cover and so on.

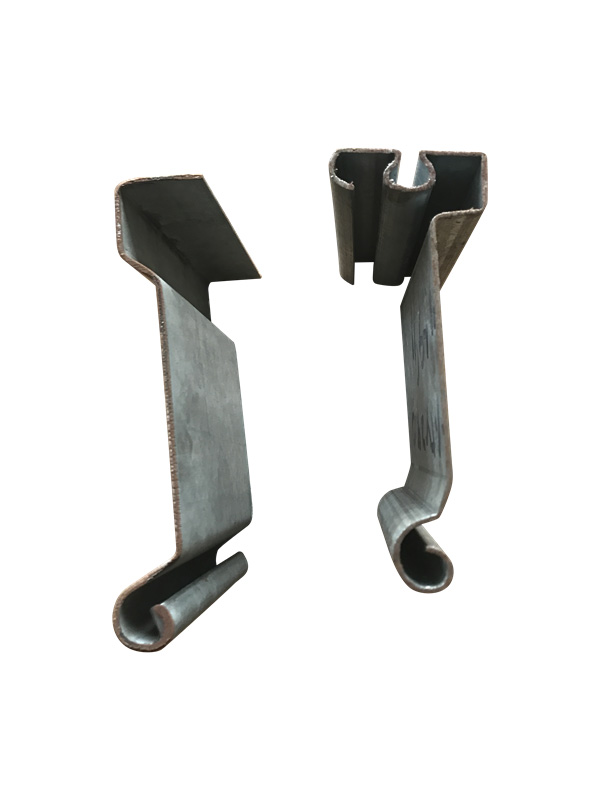

The T-shaped bottom beam is an typical rolling door bottom beam profile, which is inverted T-shaped. The profile up side is round hook and is installed at the bottom of the rolling door. The lower part of the profile is the support surface, and the two ends of the bottom beam are positioned and slid in the guide groove of the rolling door, so that the bottom beam of the roller shutter door rises and falls more smoothly, and the rolling door is less likely to be deformed. After the rolling door rises to the top, the beam is hooked on the top of the rolling door to reduce the impact of the roller door bottom beam and the top of the rolling door, so that the noise generated by the rolling door during use is greatly reduced.
By the roll forming technology, the bottom beam profile is formed at one time. The advantage is can reduce the welding production process and improves the strength of the bottom beam.
■ Main Machine components- Roller shutter door bottom beam Roll Forming Machine

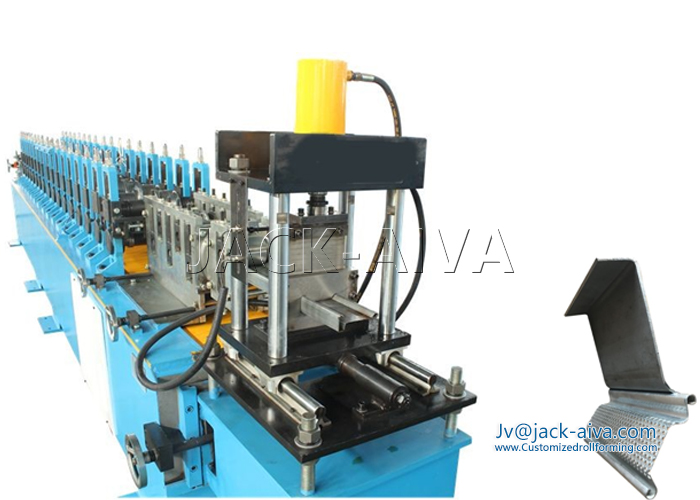

The whole line is consisted of de-coiler, roll forming machine, flying saw cutter or hydraulic cutter, run-out table, electrical control system etc. The line is driven by chain and gears. The whole line is controlled by automatic.
■ Main Parameters - Roller shutter door bottom beam Roll Forming Machine
|
Line structure
|
Portal-type frame style, HT200 steel
|
|
Forming Roller Stations:
|
20 Stations
|
|
Forming Roller shaft:
|
Φ48mm
|
|
Forming rollers
|
CR12MO, Quenching, hardness HRC60-62º
|
|
Driving system:
|
By chain with gears
|
|
Main motor:
|
7.5kw,
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
06- 0.8mm, GI steel or colored steel.
|
|
Cutting mode:
|
Hydraulic stationary cutter
|
|
Total Gross Weight:
|
About 2000kgs
|
|
Line size (Lx w x h)
|
8000 mm×8000 mm×1100 mm
|
■ Roller shutter door Bottom Beam
The bottom beam is an important part of the rolling door profile industry. The bottom beam mainly has ordinary bottom beam, T-shaped bottom beam, square tube bottom beam and angle iron bottom beam.
Custom insulated rolling shutter slat profiles are welcome! Pls contact with us for the further details.
TAG: Roller shutter door Bottom Beam Roll Forming Machine
