■ Brief Introduction- Ball bearing Sliders Net Roll Forming Machine

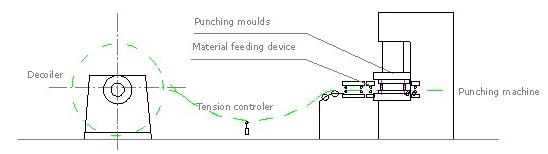

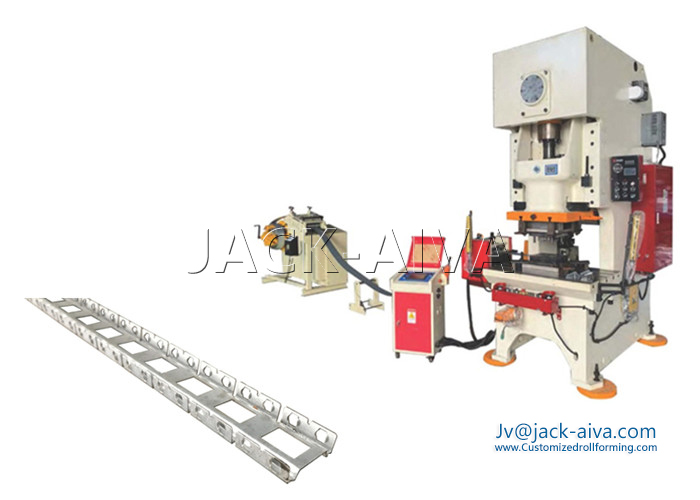

Punching Machine for the manufacture Ball bearing Slides Net. The Ball bearing Sliders Net is one of the part of drawer slides, for supporting the ball bearing. The whole net punching line is consisted of De-coiler, punching machine with net progressive punching moulds, electrical control system, etc.

■ Main Parameters- Ball Bearing Net Roll Forming Machine

ITEM	CONTENT
Raw material:	Cold rolled Steel strip
Raw material thickness	0.5mm
Punched profile:	ball support net
Punching:	30T (J23-30)
Power::	2.2kw
Stoke:	90times/min
Feeder:	Servo motor driving; NCF-200
Weight:	2.5kg
Production Efficiency:	200 000 PCS per Month

■ Metal Ball Bearing Net

Welcome to contact with us for the further details!
