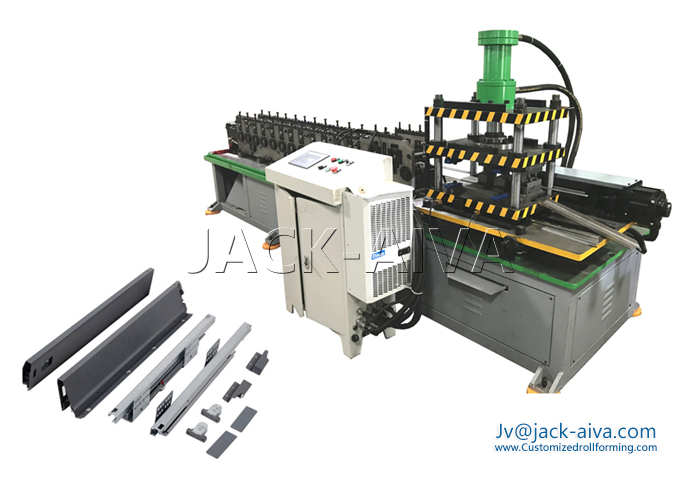

Keybar metal Box slides Making Machine


Keybar Metal Box slides Making Machine
The Production for keybar metal box slides or Double Wall Soft Closing Cabinet Slim Box slides
The Double Wall Soft Closing Cabinet Slim Box With Under mount Slide is the top quality one in the present market. it is also named Keybar Metal Box slides. This slides is consisted of o Double Wall C profile and Under mount Slide. They can be fabricated from almost any material and in almost any length. The Keybar Metal Box slides are currently used in Application: office furniture, civil furniture, cabinets, etc.

Brief Introduction- Keybar Metal Box slides Roll Forming Machine
Our manufacturer is one of few manufacturers in china has the ability to supply this slides roll forming line. With around 30 years manufacturing experience, advanced design concepts and processes. Using CNC numerical control equipment, processing, and improve the accuracy of wheel size. The design is reasonable, accurate, and the processing of high precision, good stability, the equipment, The products produced stable and high accuracy.
We are not only far ahead in technology research and development strength, talent, design, processing equipment, process, product accuracy and stability of advanced equipment in such areas as far away ahead in the industry! CNC numerical control equipment used for precision machining of the roll forming rollers, using the second element image measuring instrument for forming rollers detection, ensure that the design, processing, installation of data unity, ensure that the equipment within the accuracy of 0.03mm.

Technology Specifications- Keybar Metal Box slides Roll Forming Machine

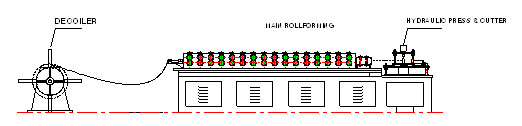

The whole High-precision steel ball slide rail equipment (Metal Drawer Slides Roll Forming Machine) is consist of De-coiler, main forming machine, straightening part, Cutting, electrical control system, etc.



Main Parameters- Keybar Metal Box slides Roll Forming Machine

ITEM CONTENT
Raw material Cold rolled Steel strip
Thickness: side wall* inner track * Out track 1.0mm*1.8*1.5mm
Roll formed profile: Side wall (double wall profile)
Forming Roller Stations: 12 Stations
Forming Roller shaft: Diameter 52mm, 45# after polishing
Forming rollers Cr12MoV, after treatment, its hardness is HRC60-62.
Forming Speed: 12 meters / min
Main motor: 7.5kw
Material of Sheet: Soft Quality (Annealed) Galvanized Sheet
Cutting mode: Hydraulic tracing cutter, driving by servo motor
Production Efficiency: 200 000 PCS per Month
Control Cabinet 3xAC380v, 50HZ

Double Wall Soft Closing Cabinet Slim Box With Undermount Slide
Keybar Metal Box slides is the high quality style in the present market, it is widely adopt for bedroom furniture, sliding cabinet doors, office cabinets and bathroom cabinets etc. There have various length about this three folding concealed drawer slides. still client need to buy the Undermount slide production machines, then can produce this slides.

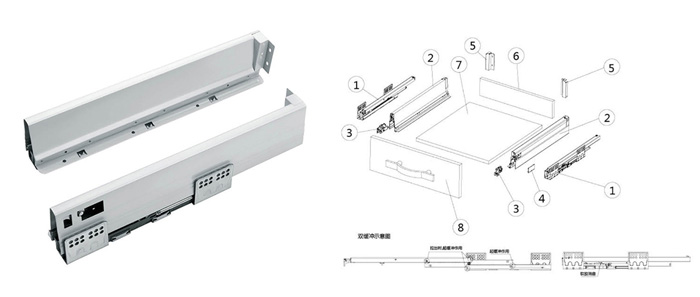

The following Keybar metal box slides picture is for client reference.



Welcome to contact with us for the further details!
TAG: Keybar Metal Box slides Roll Forming Machine, Double Wall Soft Closing Cabinet Slim Box With Undermount Slide
