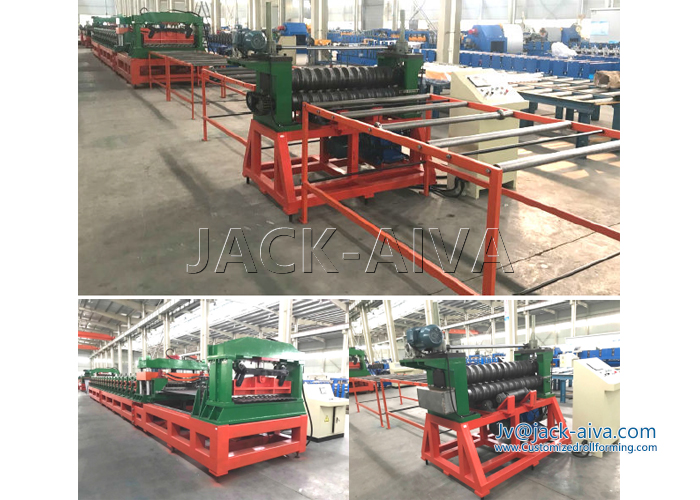

■ Brief Introduction- Steel Corrugated Wall Sheet Roll Forming Machine- 3mm
This is the line for production 3mm thickness storage tank corrugated wall profile, the whole line is consisted of two parts, Steel Corrugated Wall Sheet Roll Forming Machine and Bending after Cutting
Steel Corrugated Wall Sheet Roll Forming Machine（3mm）is consisted un-coiler, entrance, main roll former for processing corrugated steel sheets, servo control feeder and hydraulic punching holes device, three roller bending machine. The forming machines are specifically designed to roll forming corrugated sheets of galvanized steel up to 3mm thick. it is for storage tank walls. The profile can be custom made according to request.
The advantage of the cutter after bending is to get more perfect shape at the corrugate sheets both ends.

■ Production Technology specifications - Steel Corrugated Wall Sheet Making Machine
Steel Corrugated Wall Sheet Roll Forming Machine consists of Uncoil device, Roll forming machine, Hydraulic automatic cut-off, Products run-out table, PLC automatic control system, etc.
Also this roll forming line can roll form pre-cut flat sheets. Considered the better corrugated sheets, the coil as raw material is recommended.

■ Roll Forming Machine technology Flow

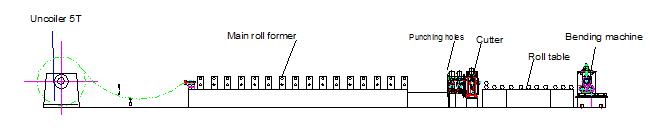

Manual De-coiler (5Ton) --- feeder + leveler + Roll forming Machine ---- Servo Tracing punching (Side holes + Cross holes) --- hydraulic cutter (Stop-cut) ------ corrugated sheet bending -- finished products

■ Auto Production line Main Parameters

Item	Content
Raw material	- Thickness 2.5- 3.5mm; - Coil width is according to client profile - Yield Strength ≤300MPa
De-coiler	- Capacity: 10Tons - Inner extending cantilever style, manual control, - Coil ID: 470mm-510mm; Coil OD:1300mm
Main roll former	- Roll station:17stations - Material of main shaft ¢150mm, 45#, treating - Forming rollers GCR15, quenching, hardness HRC58-62º, chrome plated - Driving model: By gearing box driving system, 200*500 - Main motor power: 45kw - Working speed: 0-15m/min, not including punching and cutting
Hydraulic punching	- Side holes + Cross holes; Servo Tracing punching model; 11KW (+ accumulator ) / 25Mpa
3 Roller Bender	- Corrugated steel sheet 3 roller Bending; shaft diameter 180mm UP shaft 1 pc; Down shaft 2pcs - Power: main motor 30kw; adjustment motor 3kw - Roller material GCR15 - Driving model: By Double line chain
Cutter	- Stationary Hydraulic Cutter - Cr12MoV, quenching and hardness 58°-62°
Controlling system:	PLC & Touch screen
Total weight:	About11,000kg
Size	18500×1500×1200mm

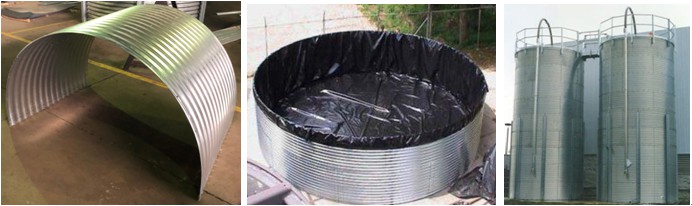

■ Application sample- Grain silos tank
