Storage Tank Corrugated Sheet Full Auto Line 1.6mm


 Roll Forming Line for production Storage tank corrugated sheet or wall by 1.6mm thickness

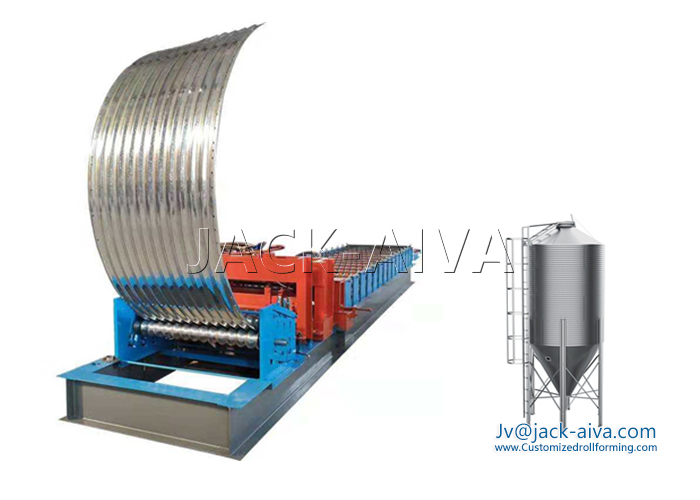

Storage tank corrugated sheet roll forming machine is consisted un-coiler, entrance, main roll former for processing corrugated steel sheets, servo control feeder and hydraulic punching holes device, three roller bending machine. The forming machines are specifically designed to roll forming corrugated sheets of galvanized steel up to 1.6mm thick. it is for stroage tank walls. The profile can be custom made according to request.
The advantage of the cutter after bending is to get more perfect shape at the corrugate sheets both ends.

 Production Technology specifications
Corrugated Sheet Roll Forming line consists of Uncoil device, Roll forming machine, Hydraulic automatic cut-off, Products run-out table, PLC automatic control system, etc.
Also this roll forming line can roll form pre-cut flat sheets. Considered the better corrugated sheets, the coil as raw material is recommended.

 Corrugated sheet roll forming machine technology Flow
Manual De-coiler (5Ton) --- feeder + leveler + Roll forming Machine ---- Servo Tracing punching (Side holes + Cross holes) --- hydraulic cutter (Stop-cut) ------ corrugated sheet bending -- finished products

 Production line Main Parameters- Storage tank corrugated sheet
Item Content
Raw material - Thickness 1.0-1.6mm;
- Coil width is according to client profile
- Yield Strength ≤300MPa
De-coiler - Capacity: 5Tons
- Inner extending cantilever style, manual control,
- Coil ID: 470mm-510mm; Coil OD:1300mm
Main roll former - Roll station:20 stations
- Material of main shaft ¢90mm, 45#, treating
- Forming rollers GCR15, quenching, hardness HRC58-62º, chrome plated
- Driving model: By chain (gearing box driving system is optional)
Main motor power: 22kw
Working speed: 0-15m/min, not including punching and cutting
Servo Tracing punching Side holes + Cross holes; 5.5KW (+ accumulator ) / 25Mpa
Bending device - Corrugated steel sheet 3 roller Bending; UP shaft 1 pc; Down shaft 2pcs
- Power 5.5kw
- Roller material GCR15
- Driving model: By Double line chain
Cutter - Stationary Hydraulic Cutter
- Cr12MoV, quenching and hardness 58°-62°
Controlling system: PLC & Touch screen
Total weight: About11,000kg
Size 11500×1500×1200mm

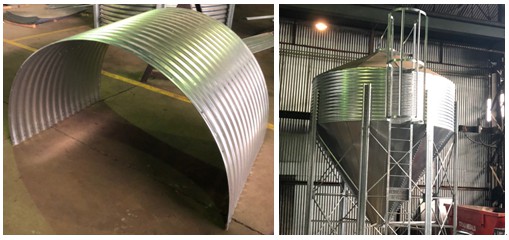

 Application sample: Grain silos tank
TAG: Storage Tank Corrugated Sheet Roll Forming Machine, Storage Tank corrugated wall
