Storage Tank stiffener Roll Forming Machine

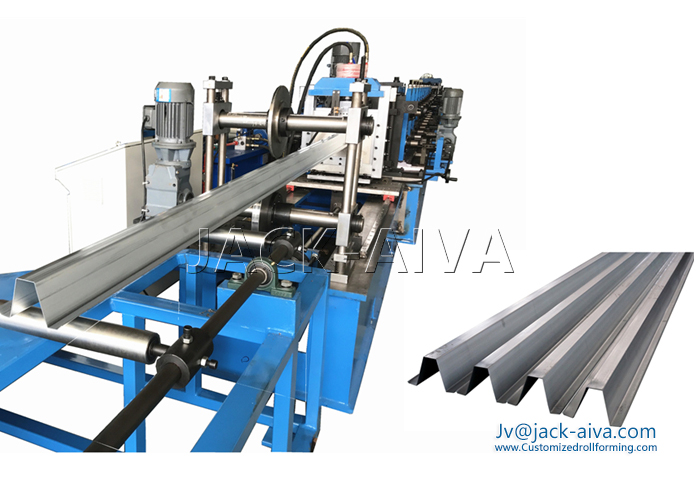

 Roll Forming Line for production Storage Tank Stiffener
The Steel Corrugated Sheet produced by the roll forming line is also named Storage Tank stiffener, this profile is used for making silo wall. 6mm thickness material can be processed by this machine.
S Storage Tank stiffener Roll Forming Machine is consisted un-coiler, entrance, hydraulic punching machine, main roll former for processing steel stiffener, hydraulic cutting device, The forming machines are specifically designed to roll forming the stiffener used for storage tank system. thickness range can be from 2- 6mm thick.
The profile can be custom made according to request.

 Storage Tank Stiffener Production Line Technology specifications
Storage Tank stiffener Roll Forming Machine is consisted of Uncoil device, Roll forming machine, Hydraulic automatic cut-off, Products run-out table, PLC automatic control system, etc.

 Steel Corrugated Wall Sheet Roll Forming Machine technology Flow

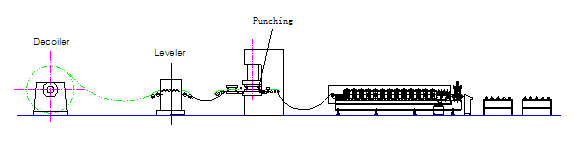

Manual De-coiler (5Ton) --- feeder + leveler + Roll forming Machine ---- Servo Tracing punching (Side holes + Cross holes) --- hydraulic cutter (Stop-cut) ------ corrugated sheet bending -- finished products




 Stiffener Roll Forming Line Main Parameters
Item Content
Raw material - Thickness 2- 6mm;
- Coil width is according to client profile
- Tensile strength: 420 MPA & Yield Strength: 360 MPA
De-coiler - Capacity: 10Tons
- Inner extending cantilever style, manual control,
- Coil ID: 470mm-510mm; Coil OD:1300mm
Main roll former - Roll station:15stations
- Material of main shaft ¢130mm, 45#, treating
- Forming rollers GCR15, quenching, hardness HRC58-62º, chrome plated
- Driving model: By gearing box driving system, 200*500
- Main motor power: 75kw
- Working speed: 0-15m/min, not including punching and cutting
Hydraulic punching 22KW (+ accumulator ) / 25Mpa
Cutter - Stationary Hydraulic Cutter
- Cr12MoV, quenching and hardness 58°-62°
Controlling system: PLC & Touch screen
Total weight: About12,000kg
Size 18500×1500×1200mm

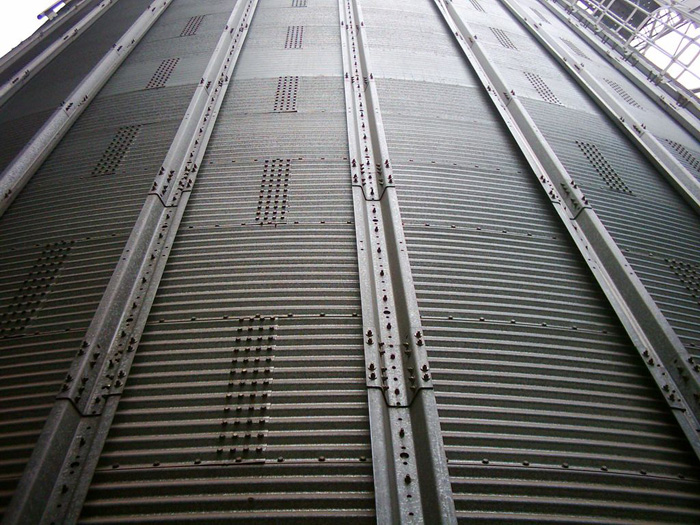

 Application sample: Grain silos tank
TAG: Storage Tank Stiffener Production Line, Roll Forming Line for production Storage Tank Stiffener
