■ Brief Introduction - SY beam Roll Forming Machine, Rack Post
We are one of the leading manufacturer in china to supply the machine, production of the profiles used for Racking storage system. Our SY beam Roll Forming Line is developed based on fully absorbing abroad competitors' advanced experience, it applied new crafts, new techniques and solved effectively many problems brought plate without any damages. its full line achieved standardized, intelligent and high efficiency production, reduced product period greatly, saving time and labor, it is the idea equipment for the SY beam production.

SY beam profile roll forming line is with profile adjustable system, it is controlled by hand wheel or can be by servo motor, The width can be processed from 80mm to 160mm. it is easy and simple to be operated.

■ General Technology Specifications- SY beam Roll Forming Line
the whole line is with Simple structure, beautiful exterior, the whole machine buildup by forge steel, the whole process after welding, so suit structure, strong loading capacity, working calm. The SY beam roll forming line is consisted of de-coiler, main roll former and hydraulic tracing cutter, etc. The technology flow is as following,
De-coiler--- Main roll forming machine---- cut-to-length---- box assembly machine---- Completed product

■ Main Parameters - SY Beam Roll forming Line
- Coil width: according the profile drawing
- Max working speed: 10-15m/min (not including cutting time)
- Roll station: about 16 stations, flatting roller station 7 sets, depends on designing
- Material of roller: GCr15, quenched to 56-58°
- Material of main shaft: ¢70mm, 40Cr, treatment
- Main power: 11KW motor.
- Forming thickness: 1.8mm, Q195, Q235 material
- Transmission: chain driving

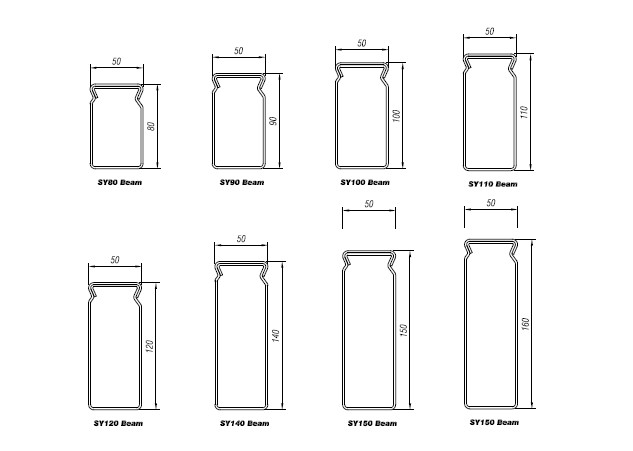

■ SY Beam for Racking Storage System
The following profile for reference:
- Motor power: 5.5kw.
- One limit switch controls the 4 stations forward or revert.

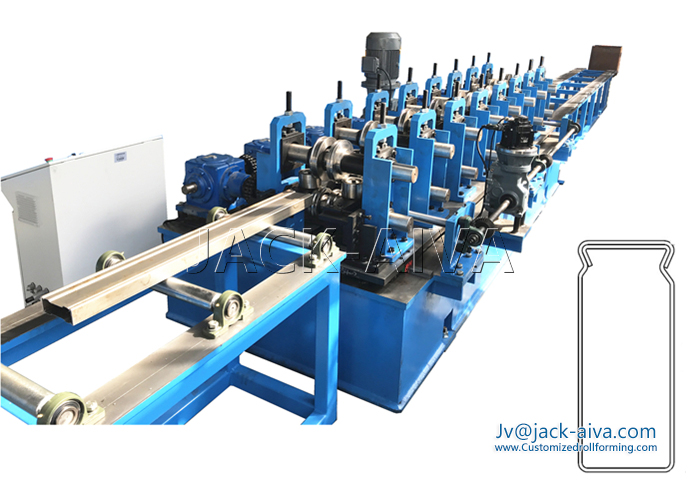

■ Sample photo for reference:
