SC Box Beam Roll Forming Machine

 Brief Introduction - SC box beam Roll Forming Machine
Our SC box beam Roll Forming Line is developed based on fully absorbing abroad competitors' advanced experience, it applied new crafts, new techniques and solved effectively many problems brought plate without any damages. its full line achieved standardized, intelligent and high efficiency production, reduced product period greatly, saving time and labor, and reduced the scrap rate of product, which is the idea equipment for the SC box beam production.
There have two roll forming lines included this SC beam production project, SC beam profile roll forming line with width profile adjustable width, and the SC beam Fastening roll forming line. The width can be from 80mm-160mm.

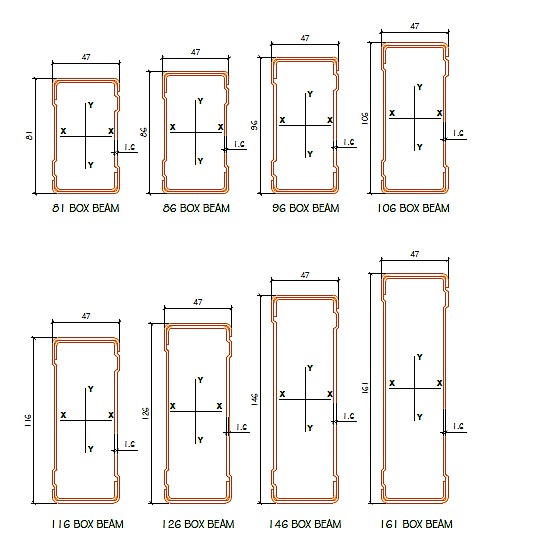

This style box beam making machine is special designed, it is no need to take off any or install any parts when to produce different sizes box beam. various width box beam can be produced by one line. The profile width can be easy to be adjusted by hand wheel.


 General Technology Specifications- SC box beam Roll Forming Line
the whole line is with Simple structure, beautiful exterior, the whole machine buildup by forge steel, the whole process after welding, so suit structure, strong loading capacity, working calm. The SC beam roll forming line is consisted of de-coiler, main roll former and hydraulic tracing cutter, etc. The technology flow is as following,
De-coiler--- Main roll forming machine---- cut-to-length---- box assembly machine---- Completed product


 Main Parameters- SC Box Beam Roll forming Line
- Coil width: according the profile drawing
- Max working speed: 10-15m/min (not including cutting time)
- Roll station: about 16 stations, flatting roller station 7 sets, depends on designing
- Material of roller: GCr15, quenched to 56-58°
- Material of main shaft: ¢70mm, 40Cr, treatment
- Main power: 11KW motor.
- Forming thickness: 1.8mm, Q195, Q235 material
- Transmission: chain driving


 Main Parameters - SC BOX Beam Fastening Machine
Separate device to lock the beam (BOX beam assembly machine):
- 4 stations to lock the 2 pieces of beam.
- One motor to give the power.
- Motor power: 5.5kw.
- One limit switch controls the 4 stations forward or revert.

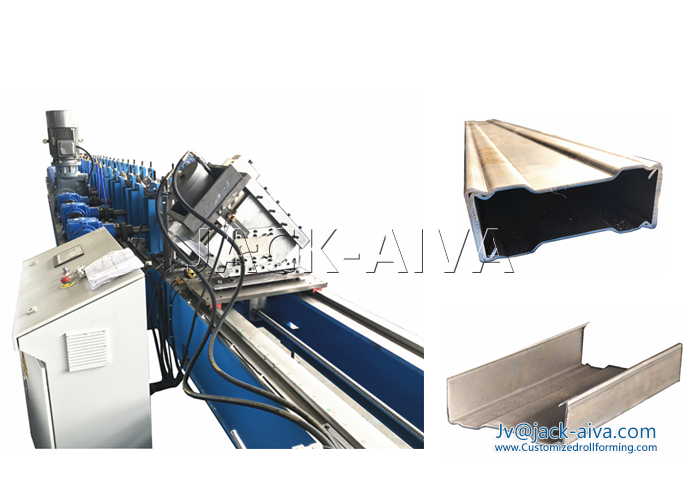

 Sample photo for reference:
TAG: Box Beam Roll Forming Machine, SC Beam Roll Forming Line
