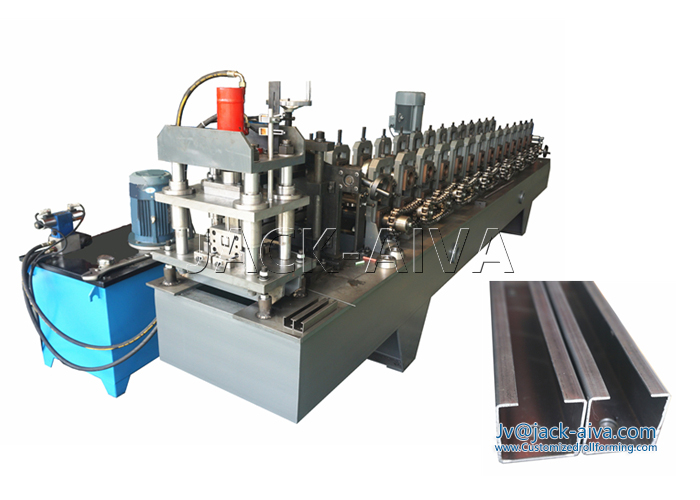

C Profile beam Roll Forming Machine

 Roll Forming Machine for the Manufacture of Shelf Storage Beam
The Selective Pallet Racking is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
With the production advantage of the shelving & storage racks roll forming equipments, an extensive catalogue of shelving, heavy duty shelving, warehouse shelving and racking for the home and office are developed rapidly.


 Technology Processing Flow- Automatic shelving upright Roll forming Line
The whole line is consisted of de-coiler, leveler, Punching with holes punching mould and servo feeder,  Main roll forming machine, Cut to length, cutting equipment, hydraulic system, control system, etc
De-coiling ---leveler-- holes punching—Roll forming—cut to lengthstacking production




 Main Parameters- Automatic shelving upright Roll forming Machine
- Suitable Raw material: GI steel sheet, Middle carbon steel sheet, σs≤260Mpa; (2-3) mm× L
- Punching machine with moulds 1 set, 63T
- Forming Roller Stations: 14 Stations
- Main shaft: 45﹟forge steel   diameter roller: Ф65mm
- working speed: 12m/min (include punching and cutting, length in ≥6m)
- Total power: 7.5kw
- Cutting mode: Automatic control, cut to length
- Hydraulic station power 4kw
- Power: 380V/3ph/50Hz (or according to the buyer's requirement)


 Racking Storage Shelving Upright
As the main component of the Shelf Storage system, The beam is the important Profile for shelving in storage racking industry.
The beam of the beam shelf is composed of two parts, one is the main beam of the beam, and the other is the beam hanging piece, and the two are integrated by welding. The beam is divided into rectangular tube, P-shaped tube, J-shaped tube, double C-welded tube according to the cross-sectional shape (the beam adopts double C beam section, strong rigidity and good torsion resistance); according to the connection mode, there are two forms of open type and combined type. The wall thickness is 1.5~2.5mm; the welding method includes centering welding, flat top welding and complete flat top welding, flat bottom welding and full flat bottom welding. The length of the beam can be designed according to the storage condition of the enterprise, usually according to the bearing condition of the shelf. The beam size is selected by calculating the maximum load of the beam.

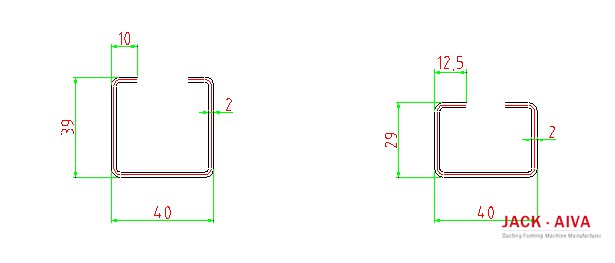

The following are the typical of heavy shelving upright for reference. ITs width can be adjusted, custom Shelf Storage Beam profile are welcome!


TAG: Shelf Storage Beam Roll Forming Machine, C Profile beam Roll Forming Line, The roll forming line production Shelf Storage Racks is also named as shelf roll forming machine, shelving rack roll forming machine, shelving roll forming machine or shelves rack roll forming machine.
