Corrugated sheet rolling machine
■ Three roller bending machine for the production the steel roofing Corrugated sheets

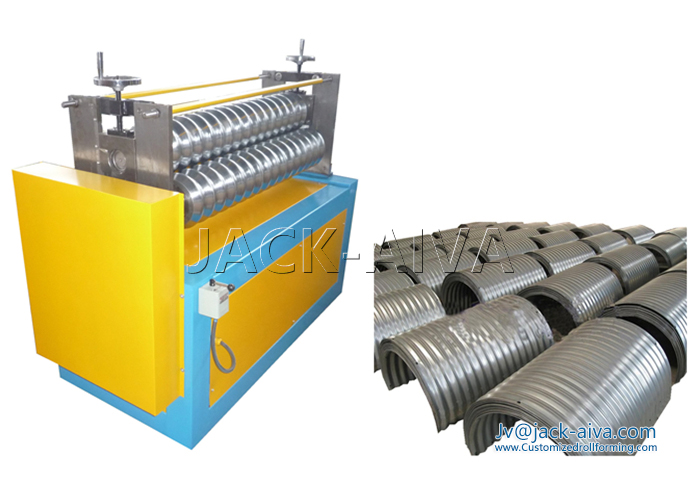

Corrugated Steel Bending Machine is basically a three roll double pinch machine. It was specifically designed for bending corrugated materials in steel and aluminum, for different material thickness. Top and pinching rolls are driven by independent hydraulic motors. Raising and lowering of the pinching roll is also accomplished by hydraulic motor, worm and pinion gearboxes. The drop-end is manual, the hydraulic version is optional.
The corrugated sheets of galvanized steel can be up to 8mm (5/16") thick. and this Corrugated steel is mainly for tanks, drainage pipes and highway safety rails.
■ Main Parameters - Corrugated plate rolling machine
|
Bending Profile
|
Corrugated plates
It is according to the corrugated sheet profile as client requested
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet, or colored steel
|
|
Thickness
|
0.4 to 0.7mm. (can be designed according to client request)
|
|
Forming Roller
|
3pcs
Roll material GCR15 surface with chrome.
|
|
Driving model:
|
Drive by chain
|
|
MAX Forming Speed:
|
0-10m/min
|
|
Main motor power::
|
5.5kw
|
|
Control System :
|
Manual control, 3XAC380, 50hz;
The Fully Automatic Control System with PLC is optional
|
|
Nodal distance:
|
adjustable according to requirement (>=250mm)
|
|
Total Gross Weight:
|
About 7500kgs
|
|
Line size (Lx w x h) mm
|
12000×1500×1100
|
■ Application - Corrugated Steel Bending Machine profile
This three roll bending machine is made to customer requirements of width, wave size, material used, the thickness used and the radii which need to be rolled. So as such, there are no specifications of standard sizes. Please contact with us for optimized selection and discussion well for you and meet your expectations.

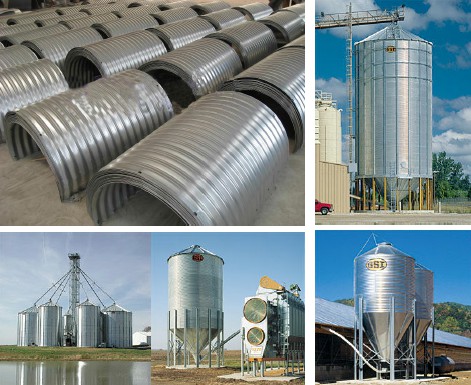

Except to process the arc corrugated roof panel, but also can be used to bend riveted corrugated steel tanks and agricultural silos with formed corrugated sheet.
