Arc Sheet Curving Machine


■ Hydraulic metal sheet panel curving machine
Hydraulic Metal sheet Arch curving machine is used to bend the formed corrugated sheets into horizontal stripes through hydraulic crimping mold. The distance between each press will decide the curvature of the arch. It is suitable for edge of buildings, parking garage, pavilion and various round roofs of buildings. The Composition of hydraulic Metal sheet Arch curving machine can crimp both ends of roofing sheet.

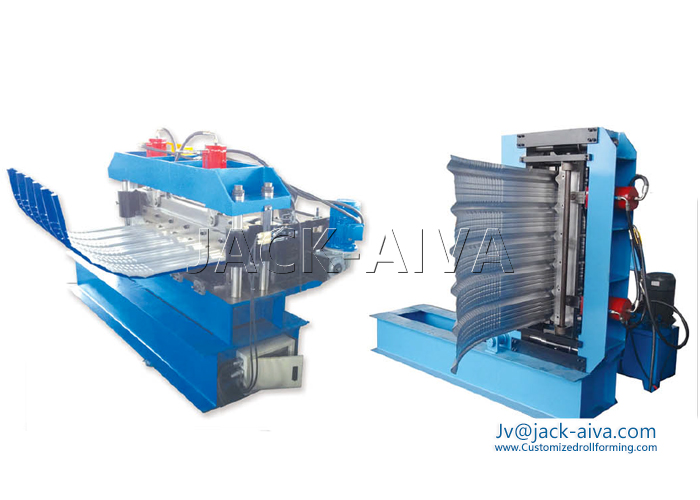

This machine is developed based on the horizontal style arc panel curving machine, it has the Flexible operation, vertical operation or horizontal operation can be possible by this machine.

■ Hydraulic curving machine Main Parameters

ITEM

CONTENT

Formed Profile Type:

Arch Roof panel

Raw material thickness:

0.3-1.0 mm

Corrugated Punching moulds

CR12, HRC55-60

Line speed:

0-10m/min

Main power:

0.85KW

Hydraulic station power

5.5KW

Electrical control system

PLC

Max. bending angle

120

Machine size

3000 mm×1400mm×1400 mm


We also can do a custom roll forming machine, i.e. We can design the machine according to your specification and profile drawing.
TAG: curving machine; Metal Sheet curving Machine; Arch panel crimping machine, Arch Crimping Machine
