K-Span Arched Panel Machine,



■ K-Span Arched Panel MIC-120, MIC 240
The steel structure building with K-SPAN arched panels is a new form of construction. K-span arched panels are seamed together to form an economical and watertight steel structure. The final shape and strength of the materials used cancels the need for columns, beams, or any other type of interior support. All of the panel-to-panel connections are joined using an electric automatic seaming machine. Because of this, there are no nuts, bolts, or any other type of fastener to slow down construction or create leaks. Buildings can be built quickly and efficiently.

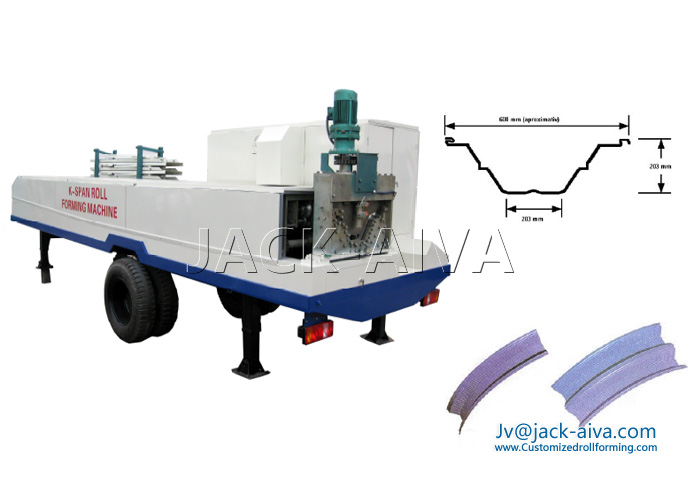

■ Roll Forming Machine Trailer-Mounted for production K-Span Arched Panel MIC-120, MIC 240
K-Span Curving Roof production line is consisted of straight roof panel Profile roll forming machine, arc panel curving machine and seam locking machine. These components are all installed on an trailer. So The K-span arc panel production machines can be moved to working site. Also the Generator can be set on the trailer as necessary power supplier. The steel coil thickness range processed by this line can be from 0.5 to 1.5mm. The cut-to-length is auto controlled.

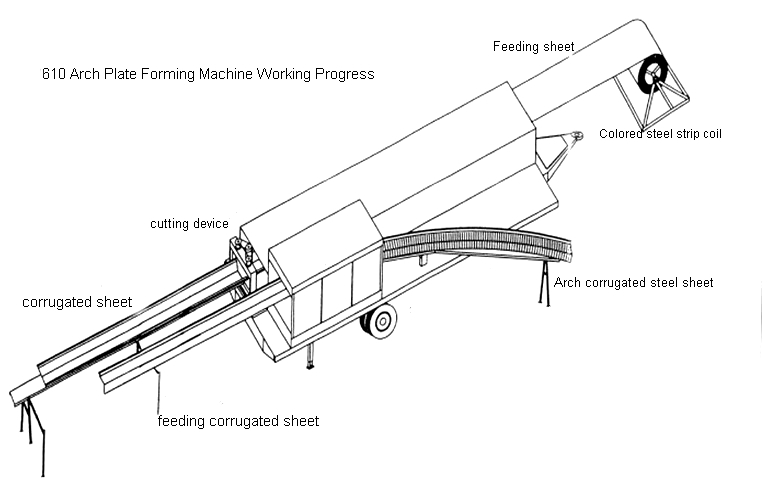

The following is the technology drawing about the K-span arched panel production machine.


■ Main Parameters- MIC-120K & MIC 240-Span Arched Panel Production Machine

Item

Content

Roll Formed Profile Type:

K-Span metal Roof panel 914-610

Raw material width:

According MIC-120, MIC 240 Profile

Raw material thickness:

0.6-1.5mm

Max k-span width

24m

Line speed:

Straight sheet: 15m/min

Arch sheet: 13m/min

Sewing: 16m/min

Rollers station:

13 sets

Material of roller:

45# forge steel

Material of main shaft:

Ф85mm

Main power:

15.5KW

Material of cutting blade:

CR12, Quenched

Min. Radius:

R=12000mm

Bending power:

3.0KW+1.1KW+1.1KW

Total Weight:

10000kg

Control system:

Electrical control

Total Line size:

8900×2200×2400mm

Machine components included

K Span Straight Roof Panel Roll Forming Machine
Arc Panel Curving Machine
Automatic Locking Machine / Snap locker


■ K-Span Arched Panel profile MIC-120 & MIC-240
Color steel sheet arched roof is cold roll formed with a thickness of 0.6 ~ 1.5mm,  into an straight slot plate, U channel shape, then curved into an long k-span arched panel, mechanically engage the hemming to form an integral arched roof structure. This advanced construction technology was developed by the American MIC Industrial Company in the 1980s. It is a revolutionary product with a unique idea. It can build 3 ~ 36m width self-supporting arc roof with steel sheet thickness 0.6 ~ 1.5. K-span Arc panel MIC-120 is an U shape style profile, the raw material can be 600mm or 914mm, the normal Maximum span is 24m; Another style arc panel is MIC-240, it is the bigger one, the normal span can be 36mm.

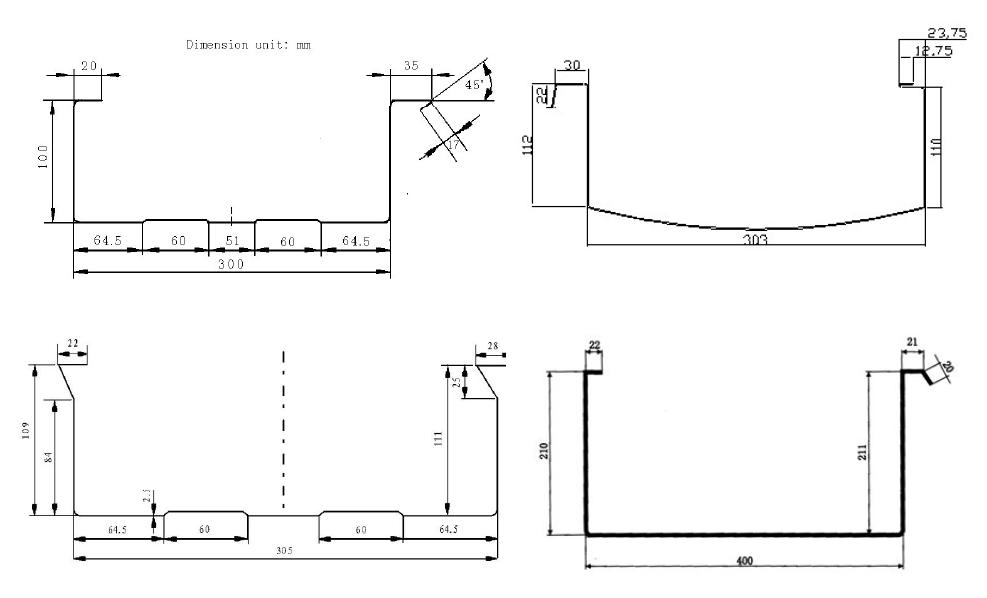

■ MIC120 K-Span Arch Sheet Profile

■ K-Span Arch Sheet Profile MIC120

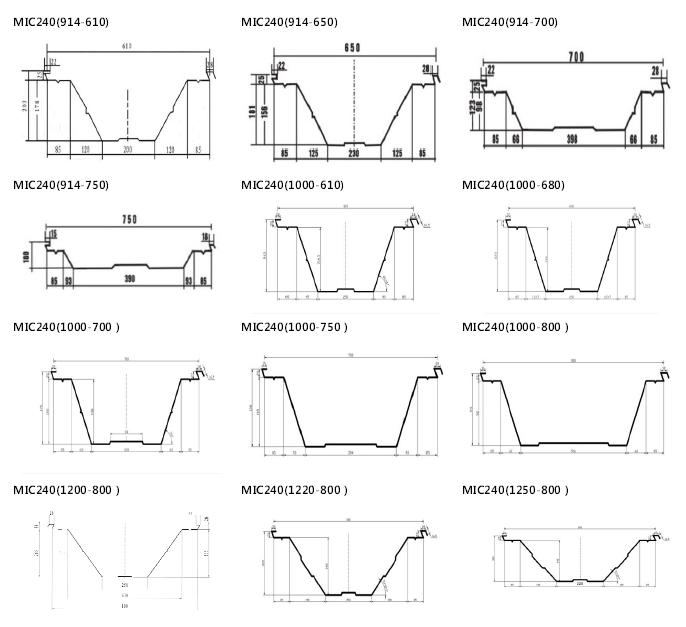

There still have the other style K-span arched panels in the marked, just provided in different section on the K-span roof panel, We can manufacture as per customer provided drawings or real objects of sectional materials, customization is welcome. The following is some profiles as reference.

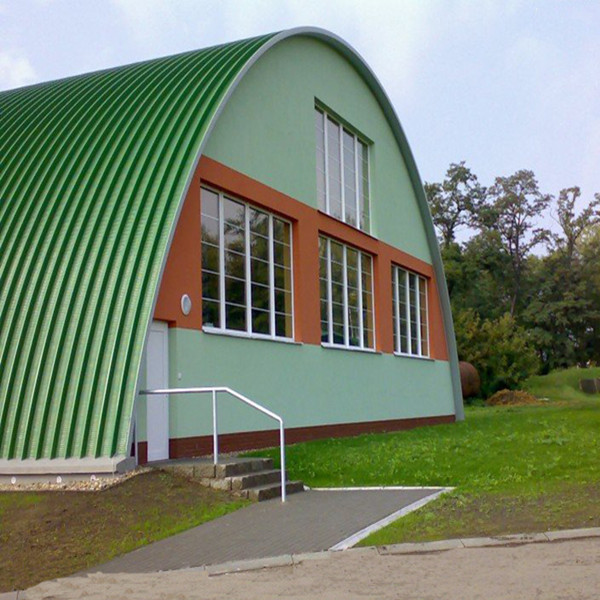

■ MIC120 K-Span Arch Sheet Applications

For further details about MIC-120 & MIC 240 Machine, please contact with us!
TAG: K-Span roll forming machine, K-Span Arched Panel Machine, MIC-120
