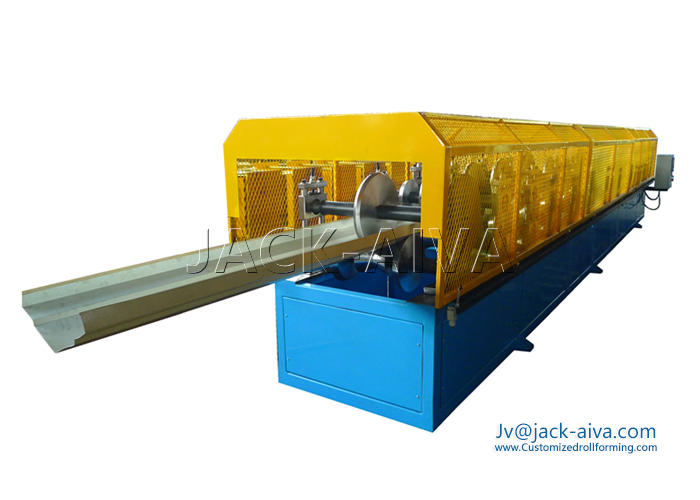

■ Roll Forming machine for Production of Roof Ridge tile or Ridge cap
Roof cap is an typical rain gutter for conveying rain water from a roof or gutter to the ground. Our roll forming Machine of gutter machines can run copper, steel, or aluminum for production various sizes half round gutters for roofing rain system, Mostly it is adopted for resident building or commercial building. Now The gutter system is more and more widely applied in rain water storage solution. Our mission is to provide excellent custom gutter machines and tools for professional gutter installation and quality product at competitive prices.

■ Roof Ridge tile Roll Forming Machines Components

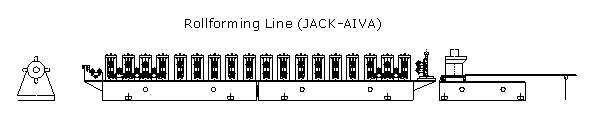

Roof cap Roll Forming is consisted of de-coiler, material feeding device, roll forming machine, straightening device, tracing cutter with round saw, run-out table, etc.

■ Roof Ridge tile forming machine parameters specification

Line structure	Portal-type frame style, HT200 steel
Forming Roller Stations:	14 Stations
Forming Roller shaft:	φ60mm
Forming rollers	GCr15, Quenching, hardness HRC56-62º
Forming Speed:	12 meters / min
Main motor:	7.5kw,
Capacity Length:	up to 9999 mm (optional)
Material of Sheet:	Soft Quality (Annealed) Galvanized Sheet
Sheet Thickness:	0.4 to 0.6 mm
Cutting mode:	Tracing cutting system with round saw or hydraulic cutter is optional.
Total Gross Weight:	About 6000kgs
Line size (Lx w x h)	6000 mm×1000 mm×1100 mm

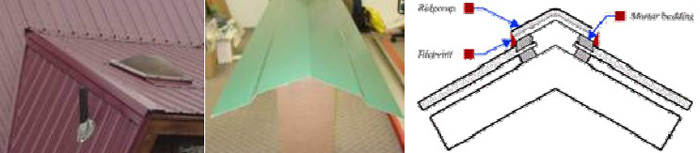

Roof Ridge Tile Cap Applications
Rain penetration through tile roofs is often caused by the cracking of sand and cement adhesive frequently used for tiles. Sand and cement adhesive has little flexibility and can crack due to natural movements in a house or temperature fluctuations. Metal tile cap has been purposely developed to overcome the disadvantages of the traditional sand and cement adhesive. Tile ridge cap pointing material was tested to cyclic fatigue loading conditions as per AS2050. The sample system adhesive successfully passed the test criteria at the design pressure.
We can manufacture as per customer provided drawings or real objects of sectional materials, customization is welcome. The following is some profiles as reference.
