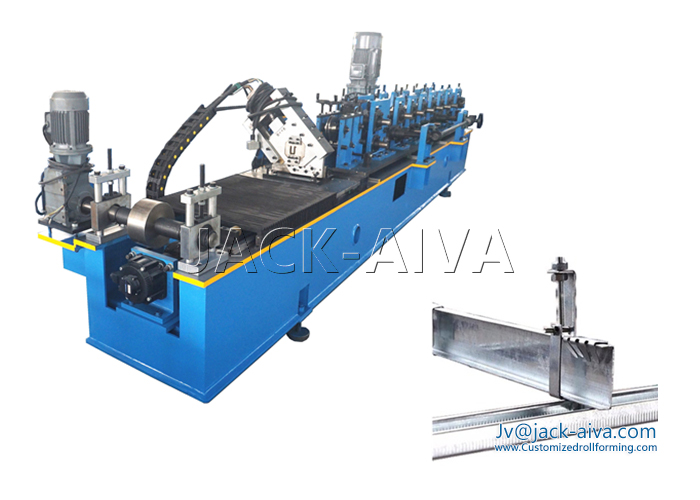

Main Runner Roll forming Machine


■ Roll forming Machine for Production Ceiling Runner of Suspension System- with adjustable web width
The Ceiling Grids System is widely adopted in offices and residential buildings, because of its easiness of installation and the possibility of making changes any time after installation without infrastructure. In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads.
The Ceiling Suspender system are consisted of Main runner, Ceiling Channel, Ceiling Forming Grid, Ceiling Grid, Ceiling Runner, etc,.

■ Brief Introduction- Main Runner Roll forming Machine with web width adjustment
Our Ceiling Main Runner roll forming machine comes in semi auto and fully auto models which can produce many types of thin gauge cold formed steel. The Runner Roll Forming Machine is consisted of de-coiler, main forming machine, straightening part, cut-to length part, run-out table, electrical control system, etc.

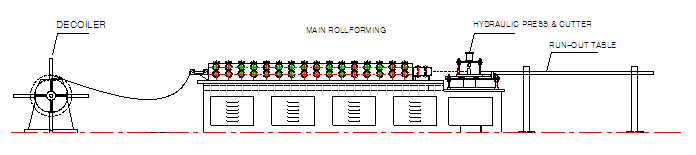

■ Roll Forming Line technology flow
Manual De-coiling -- Main Roll forming Machine ----  run out table




■ Main Parameters-  Main Runner Roll Forming Machine
Line structure
Portal-type frame style,  A3 steel
Forming Roller Stations:
12 Stations
Forming Roller shaft:
Φ40mm
Forming rollers
SKII, Quenching, hardness HRC60-62º
Forming Speed:
12 meters / min
Main motor:
5.5kw
Capacity Width:
200mm
Material of Sheet:
Soft Quality (Annealed) Galvanized Sheet
Sheet Thickness:
1.0 to 1.2 mm
Cutting mode:
Hydraulic automatic punching and cutting machine
Control Cabinet
3xAC380v, 50HZ

■ Drywall Partition Sections- Stud
We introduce the most cost effective Steel stud manufacturing cold roll forming technology for producing light gauge steel sections for commercial building frames and also roof trusses. There are many kinds of profiles of the ceiling suspender partition beam as the different market has the different requirement, we design and produce the forming machine according to clients’ drawings or samples normally.

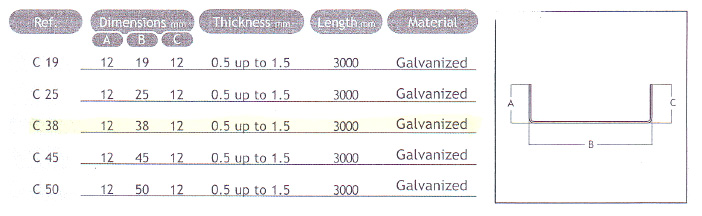

The following are the typical main runner sizes list for your reference.

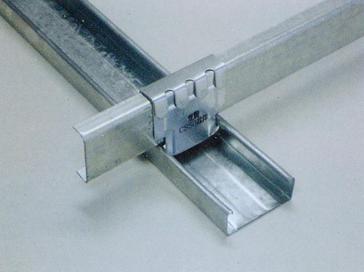

■ Roll forming machine for manufacturing the production profiles for Ceiling suspender system



Roll forming machine for manufacturing the production profiles for Ceiling suspender system
