Furring Channel Roll forming Machine


■ Suspended Ceiling System - Furring Channel
The Ceiling suspension system is widely adopted in offices and residential buildings, because of its easiness of installation and the possibility of making changes any time after installation without infrastructure.
In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads. Our manufacturer has been in this roll forming machinery industry for over 20 years. Custom profile roll formers can be designed according to client requirements.

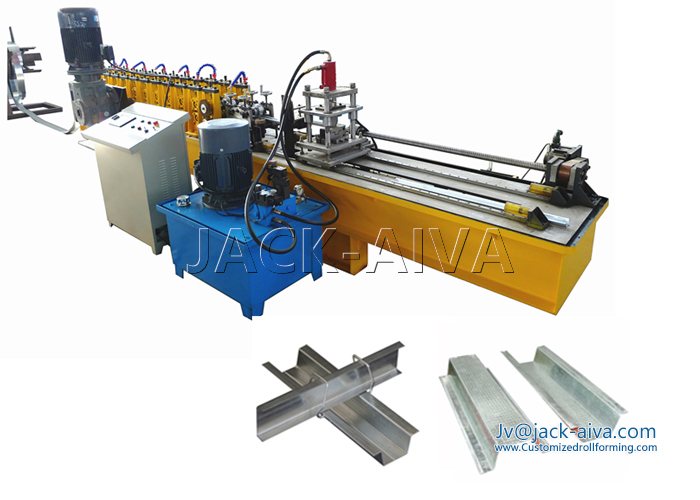

■ Brief Introduction- Furring Channel Roll forming Machine
The furring channel by our roll forming line is special for suspended Ceiling system. Our roll forming machine comes in semi auto and fully auto models which can produce many types of thin gauge cold formed steel. The whole line is consisted of de-coiler, main roll forming machine, hydraulic cutter and run out table. The line speed is designed according to 7-8m/min. The driving system is by reducer and main gearing box.

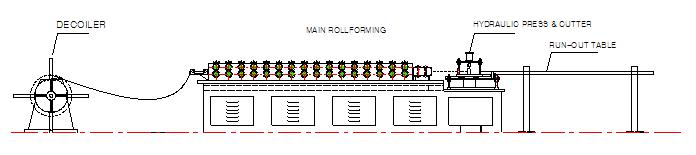

■ Roll Forming Line technology flow
Manual De-coiling -- Main Roll forming Machine ----  run out table


■ Main Parameters- Furring Channel Roll forming Machine
Line structure
Portal-type frame style,  A3 steel
Raw material thickness
0.4-0.8 mm
Raw material width
According to profile sizes
Forming Roller Stations:
15 Stations
Forming Roller shaft:
Φ38mm
Forming rollers
SKII, Quenching, hardness HRC62-64º
Forming Speed:
12 meters / min
Main motor:
5.5kw
Material of Sheet:
Soft Quality (Annealed) Galvanized Sheet
Cutting mode:
Hydraulic tracing cutter, driving by servo motor
Line speed
20m/min (adjustable)
Control Cabinet
3xAC380v, 50HZ

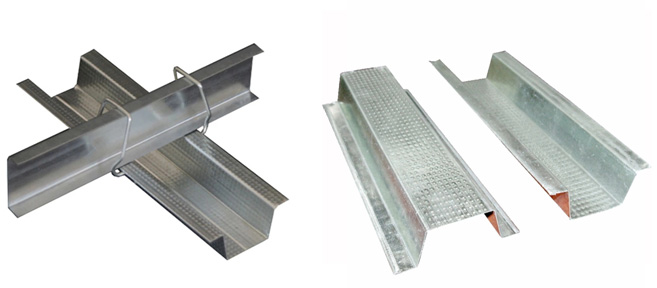

■ Ceiling Partition Sections- Furring Channel
We introduce the most cost effective Steel stud manufacturing cold roll forming technology for producing light gauge steel sections for commercial building frames and also roof trusses.
Furring channel is as a important part of Ceiling Grid Components or Suspended Ceiling System. it is Widely used in hotels, terminals. Passenger station, station, theater, shopping mall, factory, office building, old building renovation, interior decoration, ceiling and other places. Keel is the frame that decorates and base material.
We can design and produce the roll forming machine according to clients’ drawings or samples normally.
