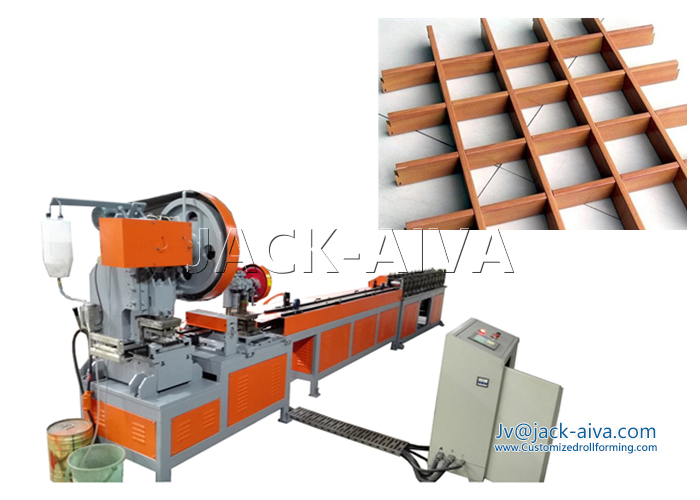

Roll forming Machine for Integrated grid ceiling


■ Cold Roll Forming Machines for production metal Ceiling grid system profiles
The Integrated grid ceiling system is widely adopted in offices and residential buildings, because of its easiness of installation and the possibility of making changes any time after installation without infrastructure.
In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads. Our manufacturer has been in this roll forming machinery industry for over 20 years. Custom Integrated Ceilings profile roll former can be designed according to client requirements.

■ Roll Forming Machine Components- Integrated grid ceiling

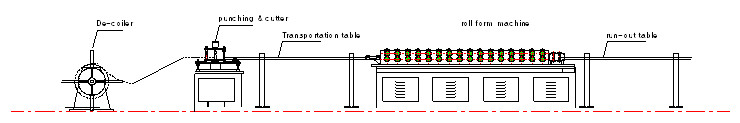

Integrated grid ceiling Roll Forming Machine consist of It is consist of de-coiler, hydraulic punching & cutting machine with servo control feeder, conveyor, main forming machine, run-out table, electrical control system, etc.



■ Roll Forming Machine Main parameters- Integrated grid ceiling
Line structure
Portal-type frame style,  A3 steel
Forming Roller Stations:
12 Stations
Forming Roller shaft:
Φ40mm
Forming rollers
Cr12, Quenching, hardness HRC56-58º
Hydraulic punching system
Servo feeding; Holes position tolerance ±0.03mm
Forming Speed
7-12 meters / min
Main motor:
5.5kw
Material of Sheet:
Soft Quality (Annealed) Galvanized Sheet
Sheet Thickness:
0.3 to 0.5 mm
Cutting mode:
Hydraulic automatic punching and cutting machine
Control Cabinet
3xAC380v, 50HZ
Main machine sizes  (L*W*H) mm
6000*700 *700

■ Suspended system- Integrated grid ceiling

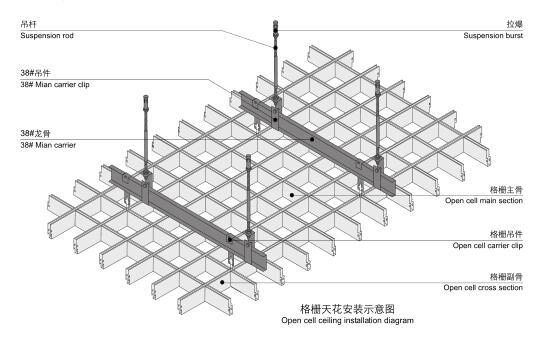

Integrated grid ceiling, A system of Ceiling Suspension System members, designed to support a suspended ceiling panels, typically an acoustical ceiling. Also may be designed to accommodate lighting fixtures or air diffusers. The ceiling Grid System consists of only ceiling tile and grids. It is the ideal solution for suburban offices, hospitals and schools offering a simple system that is easy to maintain and install. Aluminum Lay On Cell Ceiling Tile is made from high grade aluminum alloy, with film coating, spraying, and roller coating surface treatment option. Simple structure makes it easy to install. The whole ceiling surface looks comfortable.
We introduce the most cost effective Steel ceiling grids manufacturing cold roll forming technology for production steel sections. There are many kinds of profiles of the grids for this ceiling system, the different market has the different requirement.
The ceiling grids profiles can be custom prepared according to clients’ request. You are welcome to contact with us for the further details.
