Triangular keel Roll forming Machine


■ suspended ceiling system - Clip in Ceiling
The Ceiling suspension system is widely adopted in offices and residential buildings, because of its easiness of installation and the possibility of making changes any time after installation without infrastructure.
In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads. Ceiling suspension system includes traditional ceiling system and V clip ceiling system.
Our manufacturer has been in this roll forming machinery industry for over 20 years. Custom profile roll formers can be designed according to client requirements.

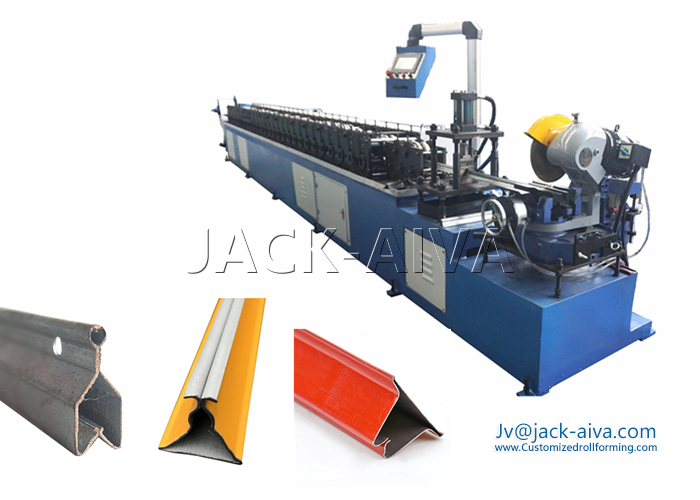

■ Brief Introduction- Clip in Ceiling Triangular keel Roll forming Machine
The Triangular keel by our roll forming line is special for Clip in Ceiling system. Our roll forming machine comes in semi auto and fully auto models which can produce many types of thin gauge cold formed steel. The whole line is consisted of de-coiler, main roll forming machine, hydraulic cutter and run out table. The line speed is designed according to 7-8m/min. The driving system is by reducer and main gearing box.

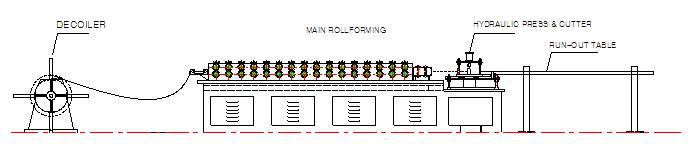

■ Roll Forming Line technology flow
Manual De-coiling -- Main Roll forming Machine ----  run out table



■ Main Parameters- Triangular keel Roll forming Machine
Line structure
Portal-type frame style,  A3 steel
Raw material thickness
0.2-0.6 mm
Raw material width
According to profile sizes
Forming Roller Stations:
16 Stations
Forming Roller shaft:
Φ42mm
Forming rollers
SKII, Quenching, hardness HRC62-64º
Forming Speed:
12 meters / min
Main motor:
7.5kw
Material of Sheet:
Soft Quality (Annealed) Galvanized Sheet
Cutting mode:
Hydraulic tracing cutter, driving by servo motor
Line speed
20m/min (adjustable)
Control Cabinet
3xAC380v, 50HZ

■ Ceiling Partition Sections- Triangular keel
We introduce the most cost effective Steel stud manufacturing cold roll forming technology for producing light gauge steel sections for commercial building frames and also roof trusses.
Triangular keel is as a important part of Ceiling Grid Components or Suspended Ceiling System. it is Widely used in hotels, terminals. Passenger station, station, theater, shopping mall, factory, office building, old building renovation, interior decoration, ceiling and other places. Keel is the frame that decorates and base material.
We can design and produce the roll forming machine according to clients’ drawings or samples normally.

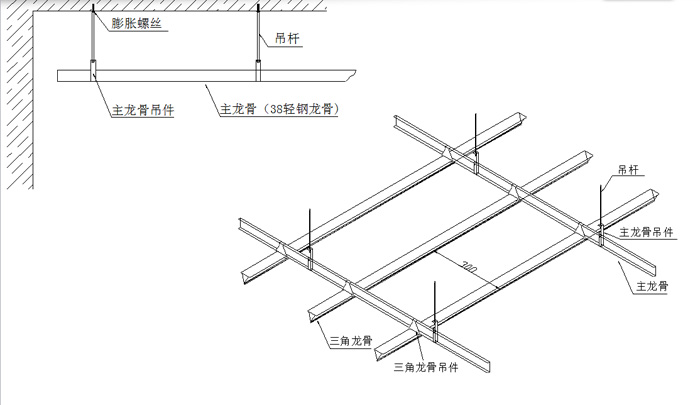

The following are the typical sizes for the Triangular keel, It is matted with the main keel and clip-in with the aluminum plate.
35*27.5mm; 29*23mm; 26*20mm


TAG: Clip in Ceiling Triangular keel Roll forming Machine, Triangular steel keel channel for hanging
  • Last:Ceiling Grid Caring Channel Roll forming Line
  • Next:Roll forming Machine for Integrated grid ceiling
