Ceiling Grid Caring Channel Roll forming Line
■ Concealed grid suspended ceiling system, Ceiling Grid Caring Channel, V channel strip carrier
The Ceiling suspension system is widely adopted in offices and residential buildings, because of its easiness of installation and the possibility of making changes any time after installation without infrastructure.
In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads. Ceiling suspension system includes traditional ceiling system and V clip ceiling system.
Our manufacturer has been in this roll forming machinery industry for over 20 years. Custom profile roll formers can be designed according to client requirements.
■ Brief Introduction- Strip carrier Roll Forming Line

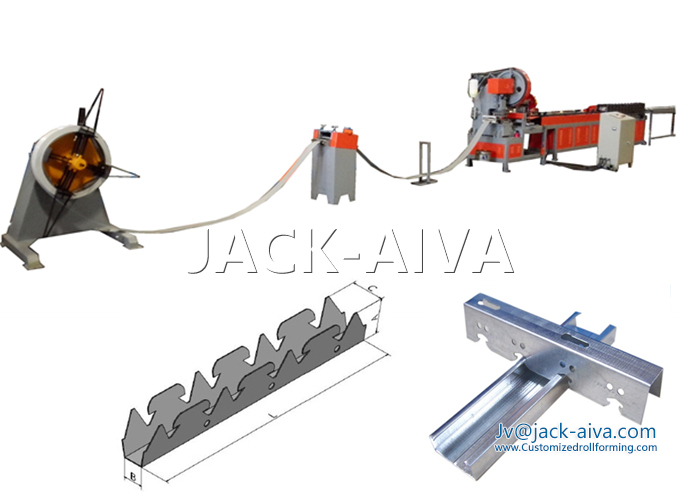

The strip carrier also named as H-Shape strip carrier, G-Shape strip carrier. C-Shape strip carrier, etc. Our roll forming machine comes in semi auto and fully auto models which can produce many types of thin gauge cold formed steel. The whole line is consisted of de-coiler, hydraulic punching device, main roll forming machine, servo control hydraulic tracing cutter and run out table (flexible style discharge table). The line speed is designed according to 7-8m/min. The driving system is by reducer and main gearing box.
■ Roll Forming Line technology flow

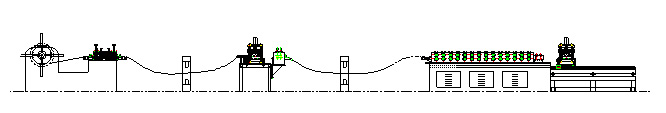

Manual De-coiling (3 tons)+leveler (2 in 1)--- Servo motor control Feeder + Hydraulic punching with hole punching moulds--- Main Roll forming Machine ---- run out table (flexible style discharge table IS Optional)
■ Main Parameters- Strip carrier Roll Forming Line
|
Line structure
|
Portal-type frame style, A3 steel
|
|
Raw material thickness
|
0.5-1.0 mm
|
|
Raw material width
|
According to profile sizes
|
|
Forming Roller Stations:
|
16 Stations
|
|
Forming Roller shaft:
|
Φ42mm
|
|
Forming rollers
|
SKII, Quenching, hardness HRC62-64º
|
|
Forming Speed:
|
12 meters / min
|
|
Main motor:
|
7.5kw
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Cutting mode:
|
Hydraulic tracing cutter, driving by servo motor
|
|
Line speed
|
20m/min (adjustable)
|
|
Control Cabinet
|
3xAC380v, 50HZ
|
■ Ceiling Partition Sections- V channel
We introduce the most cost effective Steel stud manufacturing cold roll forming technology for producing light gauge steel sections for commercial building frames and also roof trusses.
V channel is as a important part of Ceiling Grid Components or Suspended Ceiling System. There are many kinds of V channel for the different requirement, we can design and produce the roll forming machine according to clients’ drawings or samples normally.
■ The following are the typical sizes for the V clip of ceiling system,
- 18*26*(0.5-0.8)*3000mm / 18*30*(0.5-0.8)*3000mm
- 20*30*(0.5-1.0)*3000mm / 20*34*(0.6-1.0)*3000mm / 20*37*(0.6-1.2)*3000mm

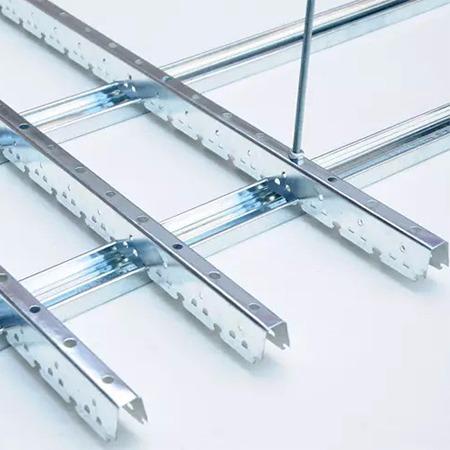

V-Model keel is a kind of ceiling steel framing. It's made by galvanized light steel. Used for ceiling suspended and ceiling board covering. Including the system have main keel, vice keel, U shape wall angle and L shape wall angle. Quality and dimension of product are passed the international standard. It have a good look and easy to install, also have a good market at decoration industry.
