C Channel Roll forming Machine
■ Roll forming Machine - Ceiling channel of Suspension System
The Ceiling Grids System is widely adopted in offices and residential buildings, because of its easiness of installation and the possibility of making changes any time after installation without infrastructure. In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads.
The Ceiling Suspender system are consisted of Main runner, Ceiling Channel, Ceiling Forming Grid, Ceiling Grid, Ceiling Runner, etc,.

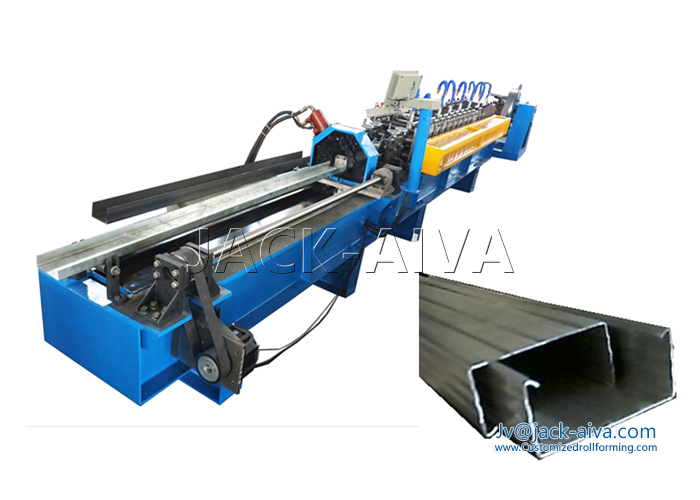

■ Brief Introduction- Ceiling channel Roll forming Machine
Our Ceiling channel roll forming machine comes in semi auto and fully auto models which can produce many types of thin gauge cold formed steel. The C profile Roll Forming Machine is consisted of de-coiler, main forming machine, straightening part, cut-to length part, run-out table, electrical control system, etc.

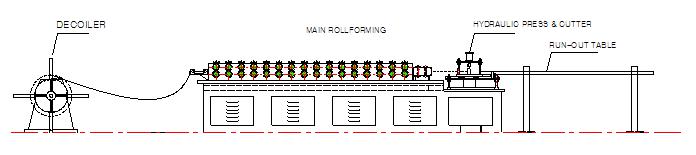

■ Roll Forming Line technology flow
Manual De-coiling -- Main Roll forming Machine ---- run out table
■ Main Parameters- Ceiling channel Roll Forming Machine
|
Line structure
|
Portal-type frame style, A3 steel
|
|
Forming Roller Stations:
|
12 Stations
|
|
Forming Roller shaft:
|
Φ40mm
|
|
Forming rollers
|
SKII, Quenching, hardness HRC60-62º
|
|
Forming Speed:
|
12 meters / min
|
|
Main motor:
|
5.5kw
|
|
Capacity Width:
|
200mm
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
0.5 to 0.6 mm
|
|
Cutting mode:
|
Hydraulic automatic punching and cutting machine
|
|
Control Cabinet
|
3xAC380v, 50HZ
|

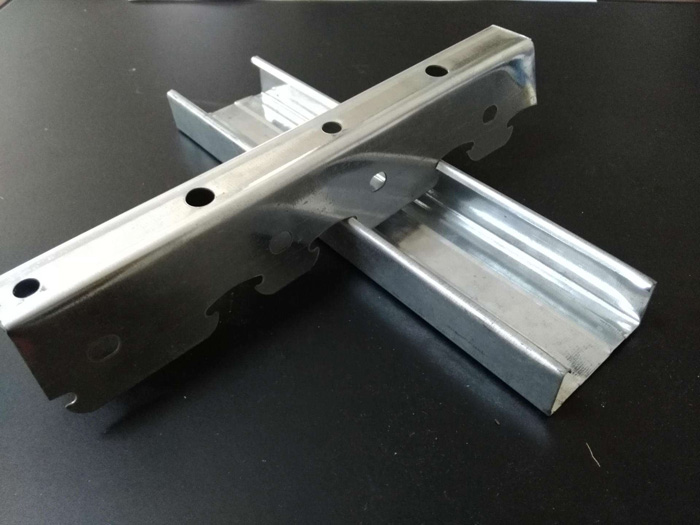

■ Drywall Partition Sections- Ceiling channel
We introduce the most cost effective Steel Ceiling channel manufacturing cold roll forming technology for producing light gauge steel sections for commercial building frames and also roof trusses. There are many kinds of profiles of the ceiling suspender partition beam as the different market has the different requirement, we design and produce the forming machine according to clients’ drawings or samples normally.
■ Roll forming machine for manufacturing the production profiles for Ceiling suspender system
TAG: Ceiling channel Roll forming Machine, Suspension System, Main channel, Ceiling Forming Grid, Ceiling Suspender, Ceiling Grids System, Ceiling Channel, Ceiling Grid
