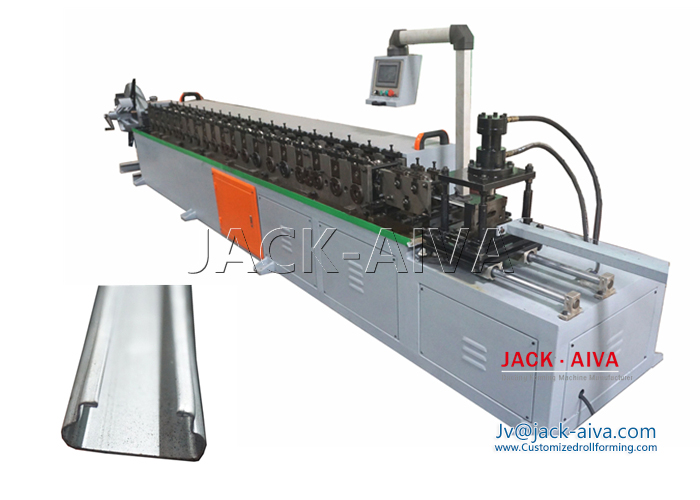

Green House C Channel Making Machine
■ Greenhouse roll forming profiles introduction
In agriculture, a cold roll formed profile is a transparent-roofed enclosure, built low to the ground, used to protect plants from adverse weather, primarily excessive cold or wet. The transparent top admits sunlight and prevents heat escape via convection that would otherwise occur, particularly at night. Essentially, a cold roll forming frame functions as a miniature greenhouse to extend the growing season.
■ Greenhouse C channel Roll Forming Machine Technology specification

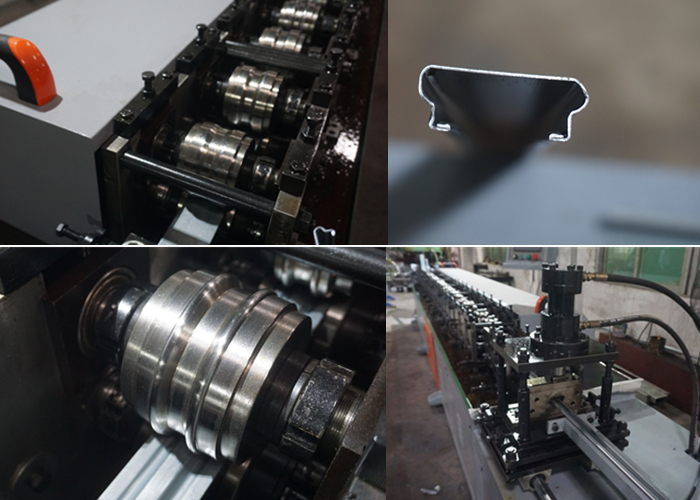

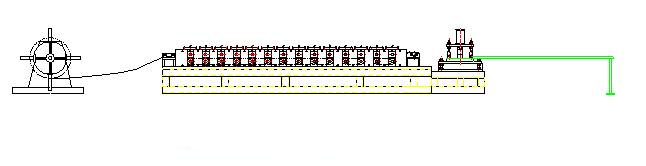

The channel Roll former is consisted of de-coiler, material feeding entrance, flatting device, main roll forming machine, hydraulic cutting part, hydraulic system, PLC control system and run out table, etc.
■ Greenhouse C channel Roll Forming Machine Main Parameters
|
Line structure |
Portal-type frame style: 45# steel |
|
Forming Roller Stations: |
25 Stations |
|
Forming Roller shaft: |
¢76mm, 40Cr, quenching, treating |
|
Forming rollers |
CR12MOV, quenching, hardness HRC60-62º |
|
Forming Speed: |
0-8m / min |
|
Main motor: |
5.5kw |
|
Suitable raw material: |
Q235A galvanized steel sheet |
|
Driving mode: |
gearing box & Cardan |
|
Cutting mode: |
automatic punching cutting style |
|
Blade material: |
CR12MOV, quenching and treating |
|
Control mode |
PLC |

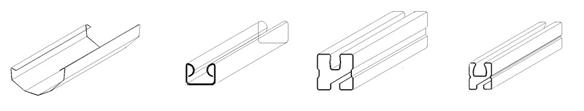

■ Greenhouse profiles
There have too many types Roll formed greenhouse profiles produced by roll forming machine. The following profiles showed are as client reference.
The custom express high way guardrail profile is welcome! We offer Innovation and Design of complete roll forming machine for greenhouse profiles, including installation and world class service.
TAG: Green House Frame Roll Forming Machine, Green House, C channel Roll Forming Machine
