Green house frame roll forming machine

 Greenhouse roll forming profiles introduction
The steel cold roll formed frame is the solution for the transparent-roofed enclosure in agriculture and gardening, used to protect plants from adverse weather, primarily excessive cold or wet. The transparent top admits sunlight and prevents heat escape via convection that would otherwise occur, particularly at night. Essentially, so the metal cold roll forming frame functions as a miniature greenhouse to extend the growing season, and it's possible to harvest vegetable crops ahead of their normal season when they are extremely expensive to buy.
Considered the various greenhouse profiles in this industry, the Raft Type - Quick-change cassettes system adopted is in order to save time on exchanging and setting different roll forming rollers on the same machine for various profiles.

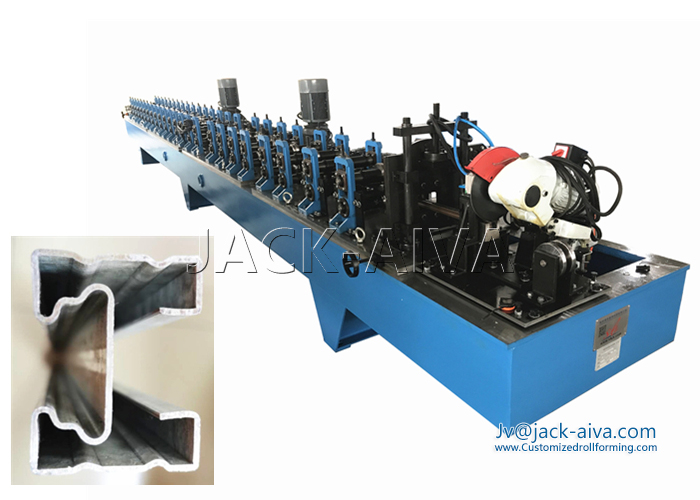

 Greenhouse Frame Roll Forming Machine Technology specification-  cassette style

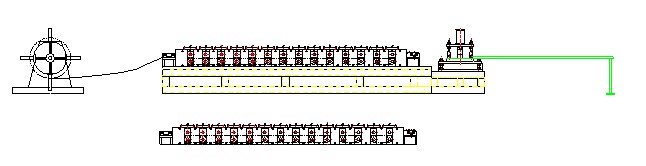

The Roll former with cassette system for quick roll change is consisted of de-coiler, material feeding entrance, flatting device, main roll forming machine, hydraulic cutting part, hydraulic system, PLC control system and run out table, etc.



 Greenhouse Frame Roll Forming Machine Main Parameters

Line structure

Portal-type frame style: 45# steel

Forming Roller Stations:

25 Stations

Forming Roller shaft:

¢76mm, 40Cr, quenching, treating

Forming rollers

GCR15, quenching, hardness HRC56-58º

Forming Speed:

0-8m / min

Main motor:

15kw

Suitable raw material:

Q235A galvanized steel sheet

Driving mode:

gearing box & Cardan

Cutting mode:

automatic punching cutting style

Blade material:

CR12MOV, quenching and treating

Control mode

PLC


 Greenhouse profiles
There have too many types Roll formed greenhouse profiles produced by roll forming machine. The following profiles showed are as client reference.


The custom express high way guardrail profile is welcome! We offer Innovation and Design of complete roll forming machine for greenhouse profiles, including installation and world class service.

TAG: Green House Frame Roll Forming Machine, Green House, Roll Forming Machine
