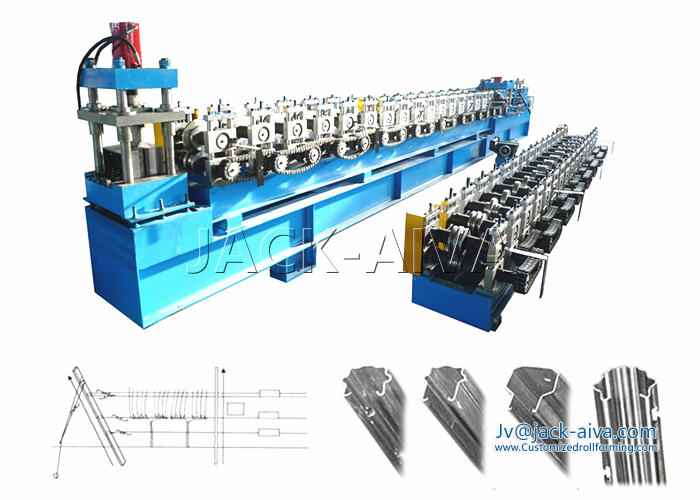

Grape Stake Roll Forming machine
■ Cassette style quick changeable Roll Forming machine for production Vineyard Grape Stake
Considered the various grape stake profiles in this agriculture industry, the Raft Type - Quick-change cassettes system adopted is in order to save time on exchanging and setting different roll forming rollers on the same machine for various profiles. It can be produced various profiles with this kind roll forming frame, just to change the cassette with roll forming moulds to get the different shape profiles.

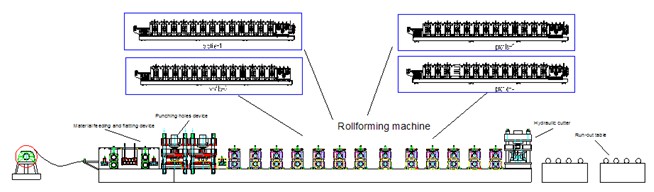

Steel Grape Stake Roll Forming machine mainly consists of conic, guide equipment, leveling system,punching, punching, roll forming system, cutting system, stacking equipment, hydraulic station, electric control cabinet.
■ Vineyard Stake roll forming machine Main Parameters
|
Line structure
|
Portal-type frame style, A3 steel
|
|
Forming Roller Stations:
|
14Stations (profile 1.)
|
|
14 stations (profile 2.)
|
|
15 stations (profile 3.)
|
|
14 stations (profile 4.)
|
|
Forming Roller shaft:
|
Φ65mm
|
|
Forming rollers
|
GCr15, Quenching, hardness HRC56-62º
|
|
Forming Speed:
|
12 meters / min (not including the punching and cutting action)
|
|
Main motor:
|
11kw
|
|
Capacity Width:
|
300mm
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
1.5mm (profile 1.)
|
|
1.5mm (profile 2.)
|
|
2.0mm (profile 3.)
|
|
2.0mm (profile 4.)
|
|
Cutting mode:
|
Hydraulic automatic punching and cutting machine
|
|
Control Cabinet
|
PLC control, automatic cut to length control
|
|
Sizes
|
9.5mx1.2mx1.3m
|

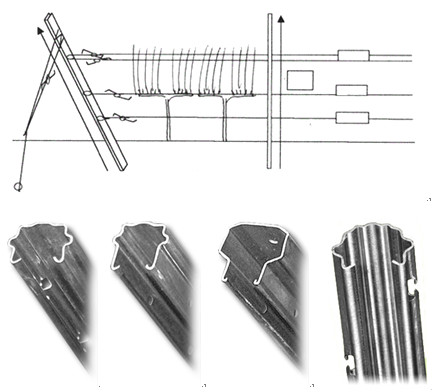

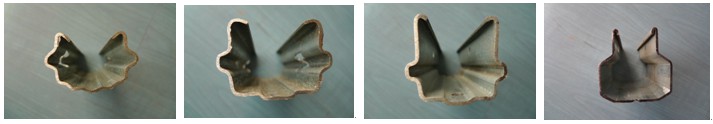

■ Vineyard Stake profile
The following is the four profiles by the cassettes style roll forming g machine.
The custom roll forming profile is welcome!
■ Brief introduction
-Galvanized Steel Vineyard Post / Steel Grape Stake / Vineyard Stake / Vineyard Grid Posts in Orchard
This is the Europe Style Steel Grape stake for vine plants. Compared to traditional wooden post systems, it has far more advantages thanks to its design and easy set-up, strong and long life. the roll forming profiles of Steel Grape Stake & Vineyard post & vineyard Stake haven been widely adopted in the world wide agriculture industry, The metal steel post systems mainly used in vineyard, orchard, grape manor, agriculture plantation and farming, and they can be used for hail protection systems at the same time.
The raw material adopted is hot dipped Galvanized steel, normal thickness is 1.2mm, 1.5mm, 2.0mm and 2.5mm, The profile can be custom made according to client requirement.
The vineyard posts are popular in European market and American market, such as Spain, England, Holland, France, Chile, Canada and so on.
TAG: Roll Forming Machine / steel vineyard grape stake fencing post / Fencing / Trellis & Gates / Steel Grape Stake & Vineyard post & vineyard Stake / Grape Posts / Grape Stakes / Vineyard Stakes / Vineyard Posts / Vineyard Trellis Stakes / Vineyard Trellis / Posts Grape Trellis Posts / Metal Poles for Vineyard / Grapery Support
