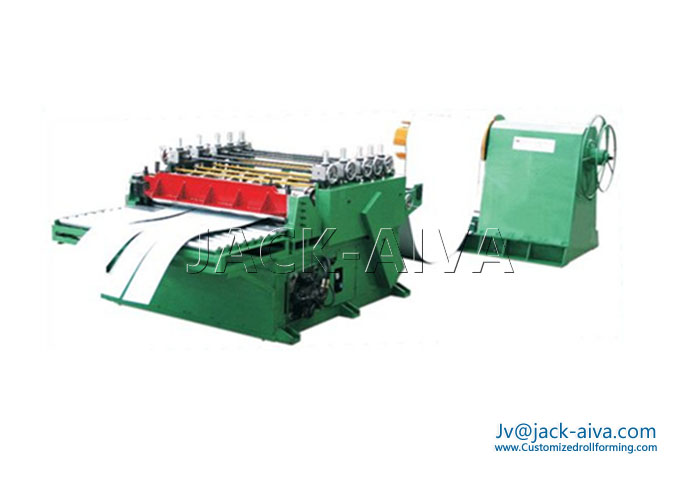

Automatic Shearing & Slitting Line

 This type Shearing and slitting machine is also called Combined line, as it’s used for levelling, slitting and cut off metal sheets. This line efficiency is not high, but it has the function of slitting line and cut to length line. The machine is included un-coiler, leveling device, slitter, hydraulic cutter and run out table. The slitting and shearing line is suitable for processing small quantities of flat sheets at workshop, for window frame, water tank and ridge, etc. with the advantages of time-saving and work-saving.

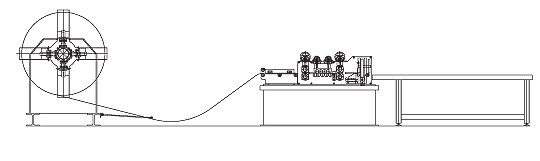

 Automatic Shearing & Slitting Composition line
De-coiler--straightening device---slitting device & cut-to-length device---run-out table




 Shearing & Slitting line specification
De-coiler
Capacity: Max load 6000kg
SHEARING & SLITTING DEVICE
Raw material max width: 1250 mm
Thickness of shearing sheet: 0.2 mm to 1.6 mm
Thickness of slitting sheet: 0.2 mm to 1.0 mm
Line speed: 15-20 m/min
cutting blade material 6CrW2Si
Flattener parallel rollers 5 pcs
slitting blade 6CrW2Si
Control Cabinet
Control mode PLC
Run-out table

This machine is only to slit and cut-to-length metal sheets, can not recoil coil. and the thickness range is not too much. Please check whether this is suitable for your need or not
We still can supply customized slitting and cut to length line according to customers' needs.
