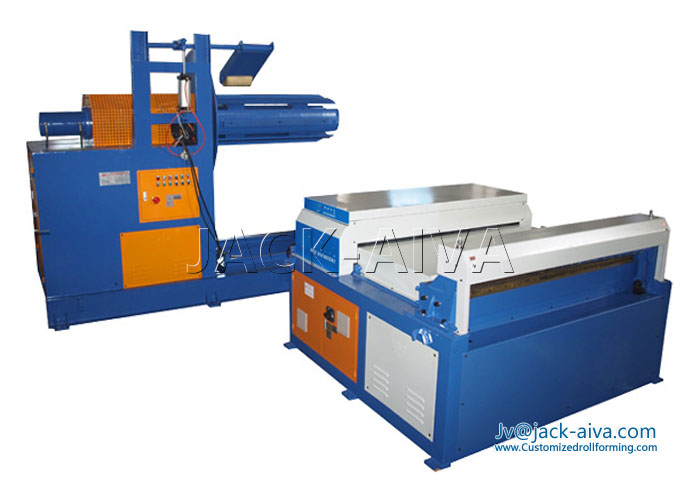

Leveling & Cut-to-Length Line


 Cut to length line General Introduction
This is the proper solution for the client that has not large production.. It can do uncoiling, leveling and cuter, to make coil steel to any desired length flat steel sheets.  It mainly used in cold or hot rolled, galvanized iron, PPGI, stainless steel, carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.
The type of machinery is suitable for accessories in small quantities production,


 Cut to length line Technology Specifications

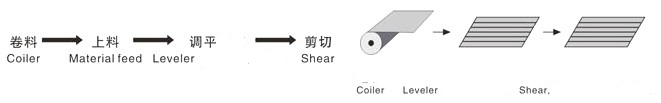

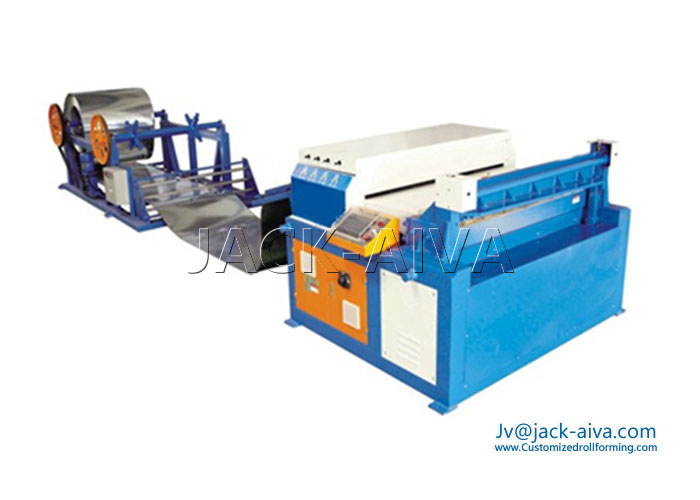

It is combined with feeding shelf, de-coiller, leveling, transporter, guiding device set-to- length device, plastic-cover device (optional), shearing machine, Equipped with auto length-control and auto-cutting function. The length can be set automatically or manually with precision and productivity. It is computer controlled with electrical, hydraulic and air-operated machine.



 Optional Items
- Steel sheet lamination device
- Slitting device


 Main Parameter

Model

Thickness
 (mm)

Sheet Width
(mm)

Min Cutting Length (mm)

Speed (m/min)

Tolerance (mm)

Weight
(KG)

Main Sizes
(mm)

Subtense

Digonal

HCP-1300

0.5~1.2

400~1300

50

≤15

±0.5

±0.8

2800

2600*2000*1300

HCP-1600

0.5~1.2

400~1500

50

≤15

±0.5

±0.8

3200

2600*2200*1300


 Applications
This line can be adjusted to do recoiling or dividing work to meet customer’s demand.
It is used to process kinds of metal plate, such as cold rolled plate, hot rolled plate and stainless steel, widely used in automotive, agricultural vehicles, containers, household appliances, building materials, processing and packaging industry.
Customized CTL can be supplied according to client request.
