Solar Pole Panel Mounting Bracket Production line

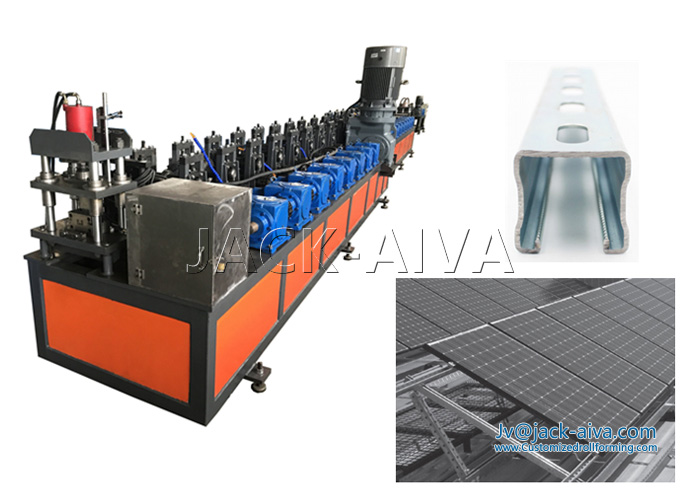

■ Roll Forming Machine for Solar Pole Panel Mounting Bracket

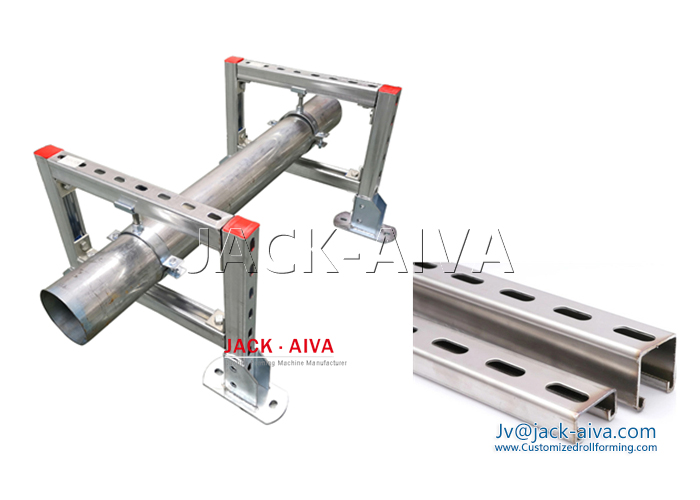

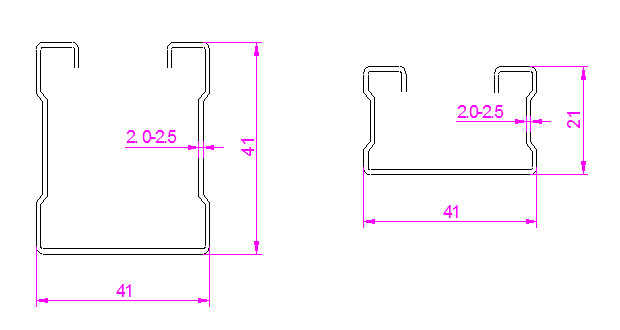

The C Channel profile as the Solar Panels Pole Bracket is the main part in the ground solar pole mounting system. The solar power system also called solar panel system with solar roof mounting bracket, and the roll formed C profile with holes punching on provides solar mounting system proper solutions.
With the advantage of our so many years experience in this roll forming machinery industry, we have full experience to supply the customized C profile roll forming lines, with the most competitive price and proper solutions. This style Steel Structure Solar Panel Mounting Brackets are safety and reliable, easy installation, convenient and cost-saving.
■ Technology specification - Solar Pole Panel Mounting Bracket Production line
With roll forming advantages, solar energy Steel Frame roll forming profile sections have a much wider scope of cross section if compared with press braked sections and without length limitation, and the efficiency is high.
The whole Roll forming equipment components is depended on client individual request. The possible auxiliary equipments are included de-coiler, straightening device, pre-and post-punching, stationary cut-off machines, run-out table, etc.

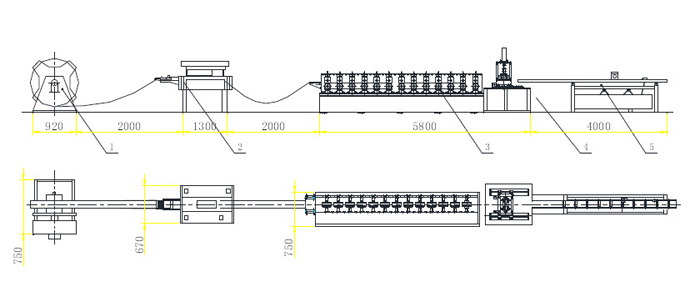

The roll forming line technology for production solar pole panel mounting bracket is as following,
■ Main parameter - Solar Pole Panel Mounting Bracket Roll Forming Machine
|
Line structure
|
Portal-type frame style, A3 steel
|
|
Forming Roller Stations:
|
15 Stations
|
|
Forming Roller shaft:
|
Φ45mm
|
|
Forming rollers
|
Cr12Mov, Quenching, hardness HRC58-60º
|
|
Forming Speed:
|
0 -10 meters / min
|
|
Main motor:
|
7.5kw,
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
1.5mm-2.5mm
|
|
Cutter Device
|
Hydraulic press or saw style is optional
|

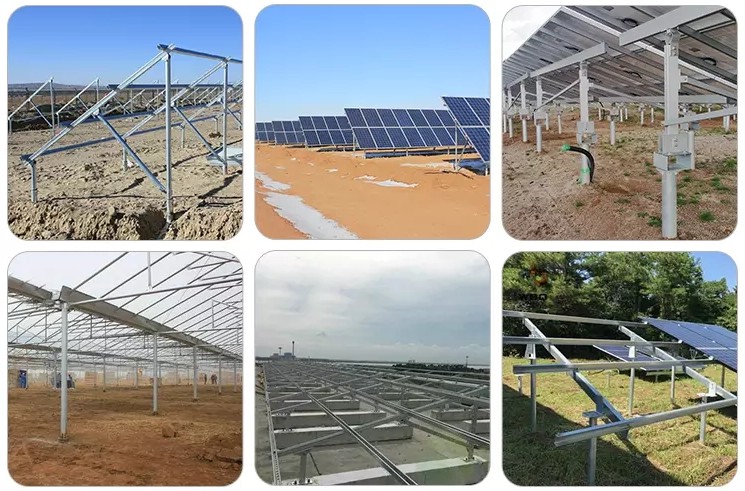

■ Solar power panels steel pole bracket profiles Application
The ground mounting system is well-suited for medium or large-scale commercial PV power plants. It can offer a wide range of foundation solutions, such as concrete with pre-buried bolt, direct buried and ground screw, and so forth.
In order to fight against the worst weather conditions, this ground-mounted solar PV system is completely made special materials which are suitable for outdoor applications. It has been extensively used for the installation of various photovoltaic power stations. Upon request, It also helps customers save on installation time and labor costs.
■ Advantages- Ground Solar Panel Mounting Bracket For Solar Racking System Solar Pole Panel
- Easy installation.
- Great flexibility .
- Excellent compatibility.
- Excellent adaptability .
- Engineered to high standards.
- Maximum lifespan.
We invite inquiry for any of C channel Steel Structure Framework information, let us know your requirements, we will find the best solutions to meet your project.
