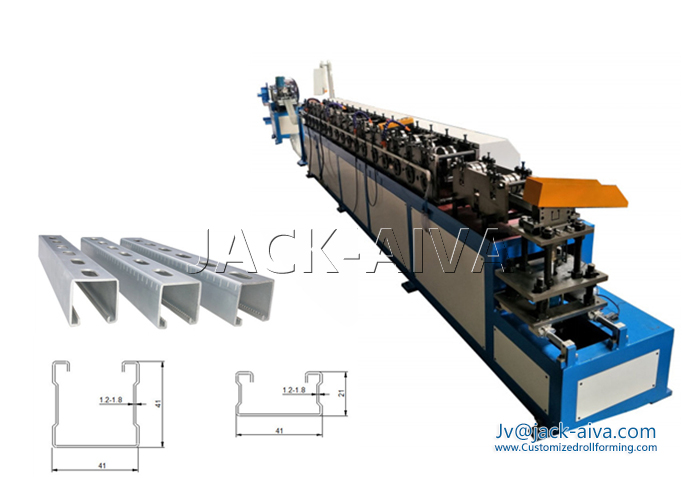

■ Steel Unistrut C Metal Slotted Strut Channel Technology Specifications
We can customized design the channel production lines for production a wide range of suspension and fastening slotted C channel for the planner, contractor or duct fitter. From channel sections/struts via various duct hangers through to pipe clamps and beam clamps you will find everything you need for the quick and easy suspension or attachment of ventilation ducts. channel sections allow for the correct and simple suspension of rectangular ventilation ducts and other pipeline systems.

■ Slotted C Channel Making Machine Components

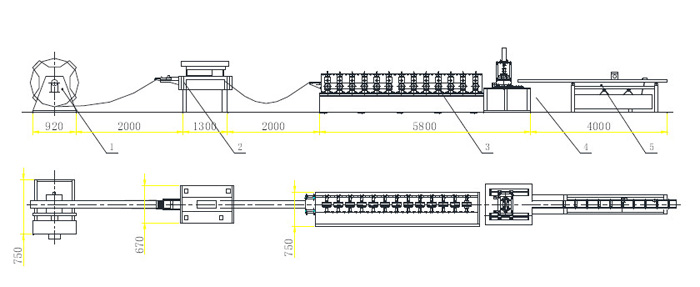

The slotted C channel production line is consisted of de-coiler, servo control hydraulic holes punching device, main roll forming machine, hydraulic cutter and run out table. The roll forming line technology is as following,

■ Main parameter - C Metal Slotted Strut Channel Machine

Profile Name	Duct Hanging Slotted C Channel
Forming Roller Stations:	18 Stations
Forming Roller shaft:	Φ42mm
Forming rollers	Cr12Mov, Quenching, hardness HRC60-62º
Forming Speed:	0 -10 meters / min
Main motor:	7.5kw,
Material of Sheet:	Soft Quality (Annealed) Galvanized Sheet
Sheet Thickness:	1.2mm-1.8mm
Cutter Device	Hydraulic press or saw style is optional

■ Steel Unistrut C Metal Slotted Strut Channel Applications
The roll formed C profile with holes punching on C channel, provides mounting system proper solutions. a simple connection concept to a comprehensive engineered building and support system featuring a robust line of channels, fittings, fasteners, hangers, pipe clamps, and accessories.

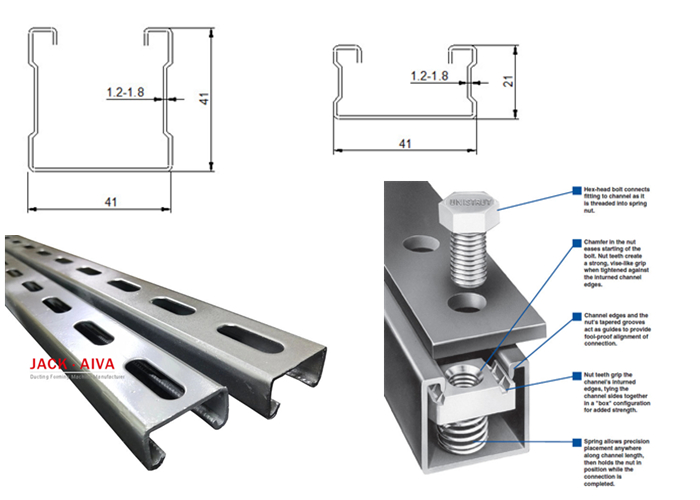

The following are the standard profile drawing for reference, Thickness range is 1.2mm-1.8mm mostly. Still we can supply the Heavy duty steel Unistrut C Metal Slotted Strut Channel, thickness range 2.0-2.5mm, it can be used for solar frame system, etc

Customized C channel profile can be supplied according to client requirements.
