Sigma Purline Roll Forming Machine
■ Steel Structural Frame Roll Forming Machine for production Sigma Purline
Sigma Purlin is as an integral part of light steel structure, Purlins and Girts are roll-formed from Hi-Tensile GI steel.
With the advantage of sigma purline, it is widely adopted in Building construction Industry – commercial and residential, they are primarily used to provide lightweight, economical, efficient roofing and cladding support systems for framed structures.
■ Technology Specifications - Steel Structural Sigma Purlin Roll Forming Machine
Our Manufacturer is one of the leading suppliers in china about the C steel purlin roll forming machine.
The various width sigma Purlin can be produced by the same line after adjusted by hand wheel or controlled by servo. The operation is very simple and can reduced the change time and labor fee. This is the right solution if the machine investment is enough. The servo tracing cutter or stationary cutter can be optional.

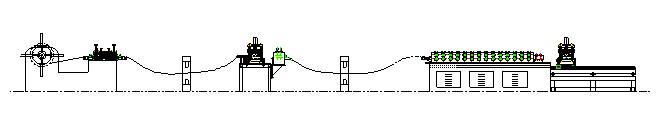

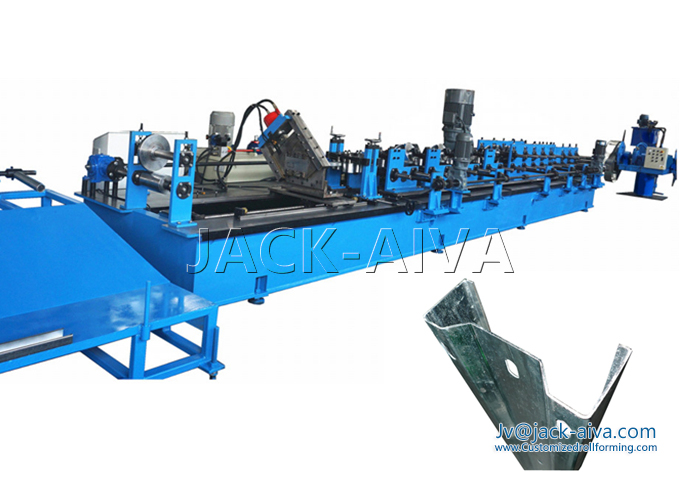

The whole roll form line is consisted of de-coiler, flatting device, holes punching equipments, main roll forming machine, hydraulic cutting part, hydraulic system, PLC control system and run out table, etc.
De-coiling---Coil sheet guiding and feeding---sheets Pre cutting------cut-to-length----Roll forming---- Hydraulic punching holes---cut to length—stacking production
■ Main Parameters- Steel Structural sigma Purlin Machine
|
Feeding material Thickness:
|
1.4-3mm (Q195, Q235)
|
|
Forming station:
|
20 sets
|
|
Material of roller:
|
Quality moulds steel, polished and coated with chrome, hardness HRC58-62
|
|
Forming Roller Stations:
|
20 Stations, quality casting steel after precision processed.
|
|
Main power:
|
15KW
|
|
Hydraulic station power:
|
5.5KW
|
|
Hydraulic pressure:
|
10-12Mpa
|
|
Leveller
|
4KW
|
|
Control system:
|
PLC Control with touch Screen, Inverter, Encoder are MITSUBISH or Panasonic Brand Japan
|
|
C PURLIN:
|
Width:100-300mm;
|
|
High: 40-85mm
|
|
Z Purlin:
|
Width: 100-300mm
|
|
HIGH:40-85mm
|
|
Product length tolerance
|
2M+/- 1.0mm
|
|
Line speed:
|
10-15m/min (not including cutting material time)
|
|
Size of main machine:
|
11000×1800×1800mm
|
|
Equipment weight:
|
7500kg
|
■ Sigma Steel Purlin Section
- The manual decoiler or hydraulic decoiler can be optional.
- The normal driving system is controlled by chains. Gearing box with cardan shaft also can designed according to your request.
- Standard C purlin profile drawing as following,
- We can send the best solution and design different style sigma Purlin roll forming machine according to client’s requirements, such as holes punched after profile roll formed, or pre- punched, etc. We can do a custom roll forming machine, i.e. we can design the machine according to your specification and profile drawing. Complex questions will be simple here.

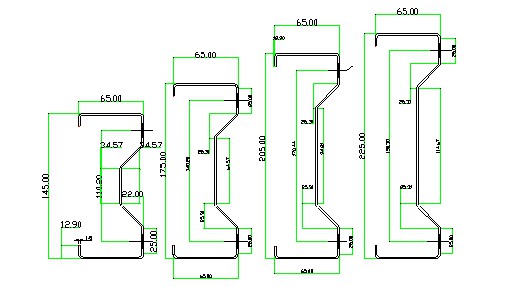

■ Application - Sigma PURLIN SECTIONS:

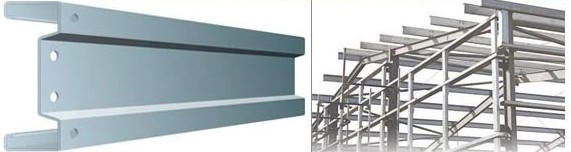

sigma sections have flanges which are equal in size and are commonly used for simple supported spans. C sections cannot be lapped continuous spans in multi-bay buildings, but easily adapted for use in small and medium sized buildings as structural framework.
TAG: Steel Structural C Purlin Roll Forming Machine
Last：Z Steel Purlin Roll Forming Machine
Next：Omega Profile Roll Forming Machine
