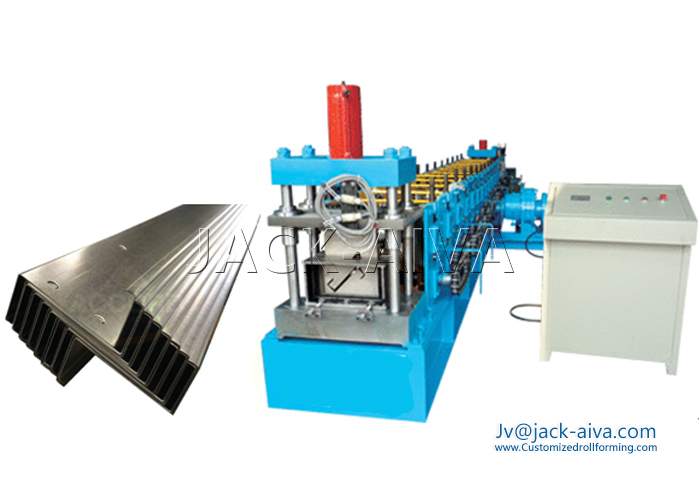

Z Steel Purlin Roll Forming Machine


 Cold Roll forming Machines for production steel Structural frame products - Z Purlin
Z purlin is made of hot rolling steel sheet, and strictly under the cold roll forming. Compare to the traditional box iron, Z purlin can save 30%material,and it has thin wall, light weight, good section performance and high strength features.
With the advantage of Cee purlin, it is widely adopted in Building construction Industry – commercial and residential, they are primarily used to provide lightweight, economical, efficient roofing and cladding support systems for framed structures.

 Technology Specifications -Z steel purlin Roll Forming Machine
Our Manufacturer is one of the leading suppliers in china about the C steel purlin roll forming machine, The various width Z Purlin can be produced by the same line after changed the spacers and suitable size cutting moulds. This is the most popular solution for difference width C purlin by one line. And accepted by most clients.

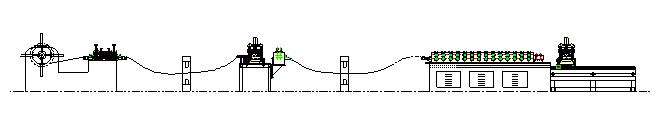

The whole roll form line is consisted of de-coiler, material feeding entrance, flatting device, holes punching equipments, main roll forming machine, hydraulic cutting part, hydraulic system, PLC control system and run out table, etc.
De-coiling---Coil sheet guiding and feeding---sheets Pre cutting------cut-to-length----Roll forming---- Hydraulic punching holes---cut to length—stacking production



 Main Parameters- Zpurlin Roll forming Machine
Feeding material Thickness:
1.4-3mm (Q195, Q235)
Forming station:
20 sets
Material of roller:
Quality moulds steel, polished and coated with chrome, hardness HRC58-62
Forming Roller Stations:
20 Stations, quality casting steel after precision processed.
Main power:
15KW
Hydraulic station power:
5.5KW
Hydraulic pressure:
10-12Mpa
Leveller
4KW
Control system:
PLC Control with touch Screen, Inverter, Encoder are MITSUBISH or Panasonic Brand Japan
C PURLIN:
Width:100-300mm;
High: 40-85mm
Z Purlin:
Width: 100-300mm
HIGH:40-85mm
Product length tolerance
2M+/- 1.0mm
Line speed:
10-15m/min (not including cutting material time)
Size of main machine:
11000×1800×1800mm
Equipment weight:
7500kg

 Z Steel Purlin Section
-The manual decoiler or hydraulic decoiler can be optional.
- The normal driving system is controlled by chains. Gearing box with cardan shaft also can designed according to your request.

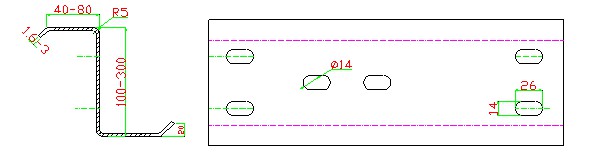

- Standard C purlin profile drawing as following,




- We can send the best solution and design different style C & Z Purlin roll forming machine according to client’s requirements, such as holes punched after profile roll formed, or pre- punched, etc. We can do a custom roll forming machine, i.e. we can design the machine according to your specification and profile drawing. Complex questions will be simple here.

 Application - Z PURLIN SECTIONS:
Z sections are made with one flange broader than the other. When one purlin is rotated 1800 two sections can be bolted together enabling them to be lapped. Lapping the purlins over interior supports improves the load capacity and rigidity of the purlins. Z sections may also be used for simple spans. Purlins and Girts that are lapped form a structurally continuous line along the length of the building




TAG: Z Purlin Roll Forming Machine, Z Steel Purlin Machine
