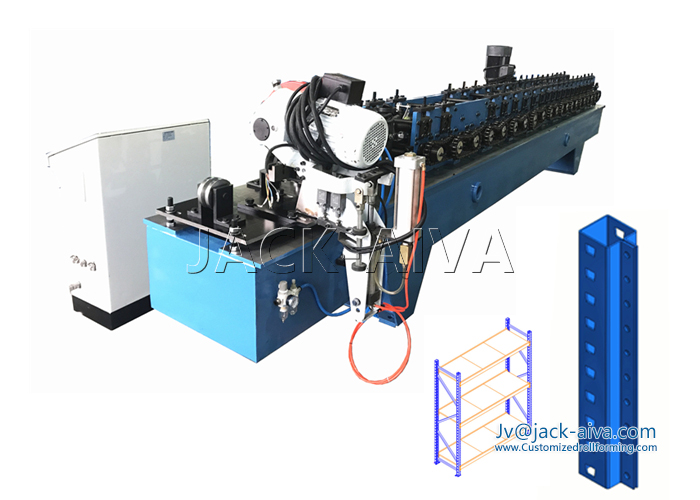

Shelving Upright Pipe Roll Forming Line


 Roll Forming Machine for the Manufacture of Storage Rack Post
The Shelf Storage Racks is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, easy installation and adjustment, low costs.
With the production advantage of the shelving & storage racks roll forming machine, an extensive catalogue of shelving, heavy duty shelving, shelving and racking for warehouse and office are developed rapidly.
Now steel profiles for high storage units, supports and shelf bases for all types of successful warehousing systems are produced by rack cold roll forming machines mostly.


 Technology Processing Flow- Shelving Upright Pipe Roll Forming Line
The whole line is consisted of de-coiler, leveler, Punching with holes punching mould and servo feeder,  Main roll forming machine, cutting equipment, hydraulic system, control system, etc
De-coiling ---leveler-- holes punching—Roll forming—cut to lengthRun out table



 Main Parameters- Shelving Upright Pipe Roll Forming Line
- Suitable Raw material: GI steel sheet, Middle carbon steel sheet, σs≤260Mpa; 2 mm× L
- Punching machine with moulds 1 set, 63T
- Forming Roller Stations: 15 Stations
- Main shaft: 45﹟forge steel   diameter roller: Ф65mm
- working speed: 12m/min (include punching and cutting, length in ≥6m)
- Total power: 7.5kw
- Cutting mode: Automatic control, cut to length
- Hydraulic station power 4kw
- Power: 380V/3ph/50Hz (or according to the buyer's requirement)

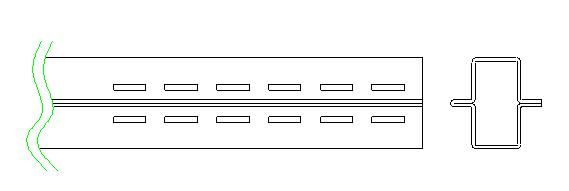

 Storage Rack Pipe Post
The upright is the important Profile for shelving in storage racking industry. The following are the typical of heavy shelving upright for reference. Customized storage rack post profile are welcome!




 Related profiles for shelving in storage racking industry
Boltless Shelving, upright post, upright post, step beam, Drawer Racking, Drive-in Racking, Push Back Racking, Live Racking, Mobile shelving, Cantilever Racking, Multi-tier Racking, Carton Flow Racking




TAG: Shelving Upright Pipe Roll Forming Line, Storage Rack Post, The shelving and Racking line is also named as shelf storage rack roll forming machine, shelving rack roll forming machine, shelving production line or warehouse rack roll forming machine.
