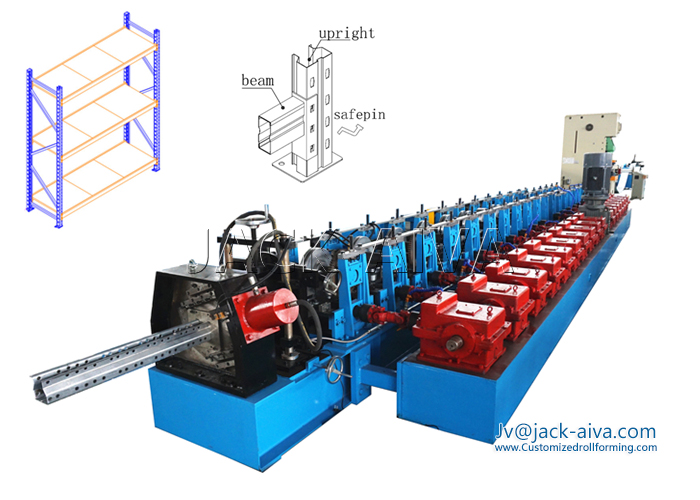

■ Roll Forming Machine for the Manufacture of Shelf Storage Racks
The Selective Pallet Racking is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
With the production advantage of the shelving & storage racks roll forming equipments, an extensive catalogue of shelving, heavy duty shelving, warehouse shelving and racking for the home and office are developed rapidly.
Now most of rigid profiles for high storage units, supports and shelf bases for all types of successful warehousing systems are produced by rack cold roll forming machines mostly. The whole automatic shelving upright roll forming line is consisted of de-coiler, leveler, punching holes machine, main roll forming machine and cut to length, etc .
Racking roll forming machine is also named as shelf roll forming machine, shelving rack roll forming machine, shelving roll forming machine or shelves rack roll forming machine.

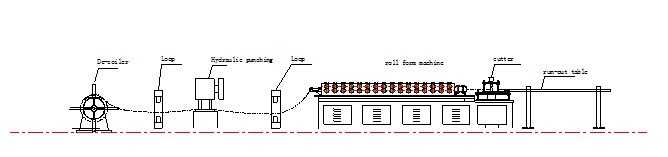

■ Technology Processing Flow- Automatic shelving upright Roll forming Line
The whole line is consisted of de-coiler, leveler, Punching with holes punching mould and servo feeder, Main roll forming machine, Cut to length, cutting equipment, hydraulic system, control system, etc
De-coiling ---leveler-- holes punching—Roll forming—cut to length—stacking production

■ Main Parameters- Automatic shelving upright Roll forming Machine
- Suitable Raw material: GI steel sheet, Middle carbon steel sheet, σs≤260Mpa; (2-3) mm× L
- Punching machine with moulds 1 set, 63T
- Forming Roller Stations: 17 Stations
- Main shaft: 45﹟forge steel diameter roller: Ф76mm
- working speed: 12m/min (include punching and cutting, length in ≥6m)
- Total power: 22kw
- Cutting mode: Automatic control, cut to length
- Hydraulic station power 4kw
- Power: 380V/3ph/50Hz (or according to the buyer's requirement)

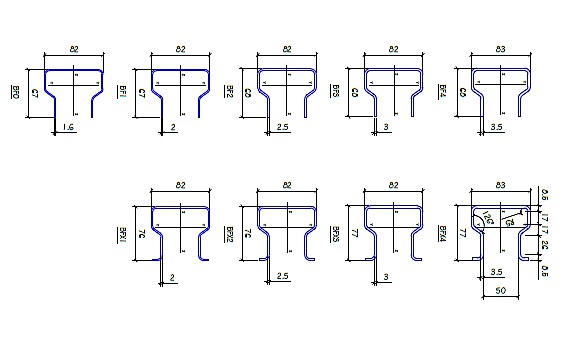

■ Racking Storage Shelving Upright
The upright is the important Profile for shelving in storage racking industry. The following are the typical of heavy shelving upright for reference.
