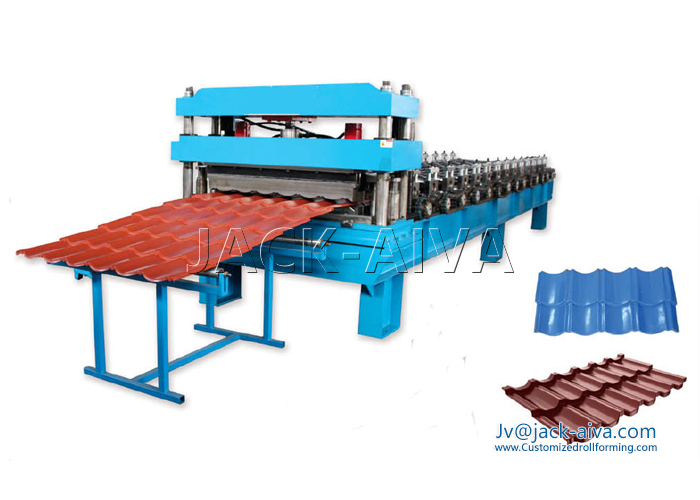

3D Roof Tile Roll forming Machine
■ Roll Forming machine for the manufacture of the 3D Steel roof step tile
We offer custom style 3D Metal roof step tile machines, our roll forming machine has the ability to produce conventional custom length products and multiple step standard lengths allows tile manufactures a wide range of production capabilities. 3D Steel Roofing tile roll forming machine design allows for the production of traditional modular roof tile sheets and fastened tile panels. The tile roll forming machine design allows for the production of traditional tile panels and fastened tile panels. This machine can produce through fastened panels in steel, creating a perfect, scrape-free finish. The 3D colored steel tiles produced by this line look beautiful, elegant and noble. They are widely used as the roof of garden-like factory, hotel, exhibition center, villa, civil construction, etc.
■ Machine Components- 3D Steel Roof Tile Roll Forming Machine
This Steel structure roof tile roll forming Machine is including Roll-forming tools, unwinding, cutting and final packing. All of this equipment is manufactured to order according to the client requirements and concepts. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface. The normal technology for our steel roof step tile roll forming machines is as following,
De-coiling - Coil sheet guiding & feeding - Roll forming - cut to length - stacking production
The present roll forming machine only can produce one profile.
■ Main Parameters - Automatic 3D Steel roof Tile machine
|
Main motor power::
|
5.5kw
|
|
hydraulic station power:
|
5.5kw
|
|
Hydraulic pressure:
|
10-12Mpa
|
|
ROLLER STATIONS:
|
15 ~ 24 sets
|
|
MAX Forming Speed:
|
15m/min, can be supplied according to client request
|
|
Control System :
|
Fully Automatic Control System with PLC, Easy operation: Key in the length and quantity on the control panel
|
|
Capacity Length:
|
up to 9999 mm (optional)
|
|
Material of Sheet:
|
Soft Quality (Annealed) Galvanized Sheet
|
|
Sheet Thickness:
|
0.4 to 0.7mm
|
|
Nodal distance:
|
adjustable according to requirement (>=250mm)
|
|
Total Gross Weight:
|
About 7500kgs
|
|
Line size (Lx w x h) mm
|
12000×1500×1100
|
■ 3D Metal Roof Tile Sheets Applications

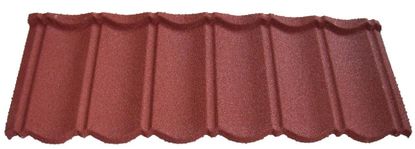

The 3D Roof tile sheets can be Stone coated, this style steel roof tile Stone coated metal roof tile is a new roofing material produced with durable galvanized steel plate and adopts the high quality watercraft acrylic resin as the adhesives, the weather resistant nature color sand nature sand as the surface layer through unique technical process. It is high technological product combining creation, composite and it is also environment friendly. Stone coated steel roof tile has both the natural, the traditional roof clay tiles and the excellent light, strong, durable performance of modern metal tiles. It is currently the main high-grade roof materials in the world. Iron Galvanized Corrugated Sheet Color Stone Coated Metal Roof Tile
Roman Wind And Corrosion Resistance Stone Coated Steel Roof Tiles For Building Roof Construction
We can supply the whole solution for the 3D roof tile coated with sands productions. It is including Auto bottom and surface glue spraying machine, Sand coating machine, drying machines, Sand mixer machine.
■ Custom profiles are welcome! For information on metal roof tile sheets profiles by our roll-forming mills, please contact with us!
TAG: 3D Roof Tile Roll Forming Machine, 3D Roof tile machine, 3D Tile sheet machine, Steel roof Tile machine, Tile-roof panel
