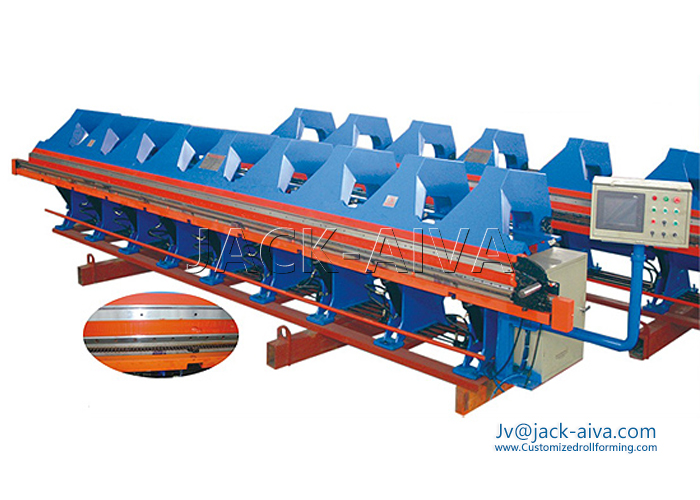

NC Folding and Slitting Machine


■ NC Folding and Slitting Machine specification
The system adopts hydraulic drive mode, up and down clamp to achieve the clamping steel plate; unique parallelogram hinge mechanisms to achieve the flap rotation to bending plate, the maximum bending angle of up to 125 ° (work piece minimum angle of 55 °), without using a mold. Back-gauge positioning mechanism is to achieve the precise positioning of plates, it is CNC controlled. The pressure compensated, load sensing hydraulic system. The machine is configured with the longitudinal slitter, slitting strip width can be adjusted.

■ NC Folding and Slitting Machine Main parameters

ITEM CONTENT
Max bending thickness 1.5 mm  Steel
Max bending length 8000 mm (Optional)
Max. slitting thickness 1.5mm steel
Min. folding sizes 10 mm
Working cycle (max.) 12S
Slitting speed:   0.8 m/s
Machine Net weight 8m/5500kg

■ NC Folding and Slitting Machine Application
This machine can be used for production the steel construction profiles, such as the roof cap, flashing, door and windows frames, edging and a variety of income side, the corners components. Also be used for other sectors of the sheet metal bending.


TAG: NC Folding and Slitting Machine
